5 years warranty DIN Rail DC Module Surge Protection Device 1000VDC Lightning Surge Protector SPD
Specification：
|
Model
|
M40-500
|
M40-600
|
M40-800
|
M40-1000
|
|
Electrical Parameter
|
||||
|
lightning Protection Zone (LPZ)
|
1-2
|
|||
|
According to DIN VDE6075 Part6( Draft 11.89) A1, A2
|
C
|
|||
|
According to IEC 61643
|
Type 2
|
|||
|
Nomimal working voltage( Un)
|
500VDC
|
600VDC
|
800VDC
|
1000VDC
|
|
Max continuous operating voltage( Uc)
|
650VDC
|
800VDC
|
1000VDC
|
1200VDC
|
|
Nominal discharge current In (8/20 μs)
|
20kA
|
|||
|
Max discharge current Imax (8/20 μs)
|
40kA
|
|||
|
Protection level Up (In)
|
1500V
|
2000V
|
2500V
|
3000V
|
|
Response time (Ta)
|
25ns
|
|||
|
Protection model
|
+,- – PE
|
|||
|
Standards compliance
|
IEC 61643, EN60950
|
|||
|
Mounting
|
DIN rail mounting 35mm
|
|||
|
Max connecting line diameter
|
25mm2
|
|||
|
Recommend connecting line diameter
|
>16mm2
|
|||
|
Largest terminal installation torque
|
6-8N.m
|
|||
|

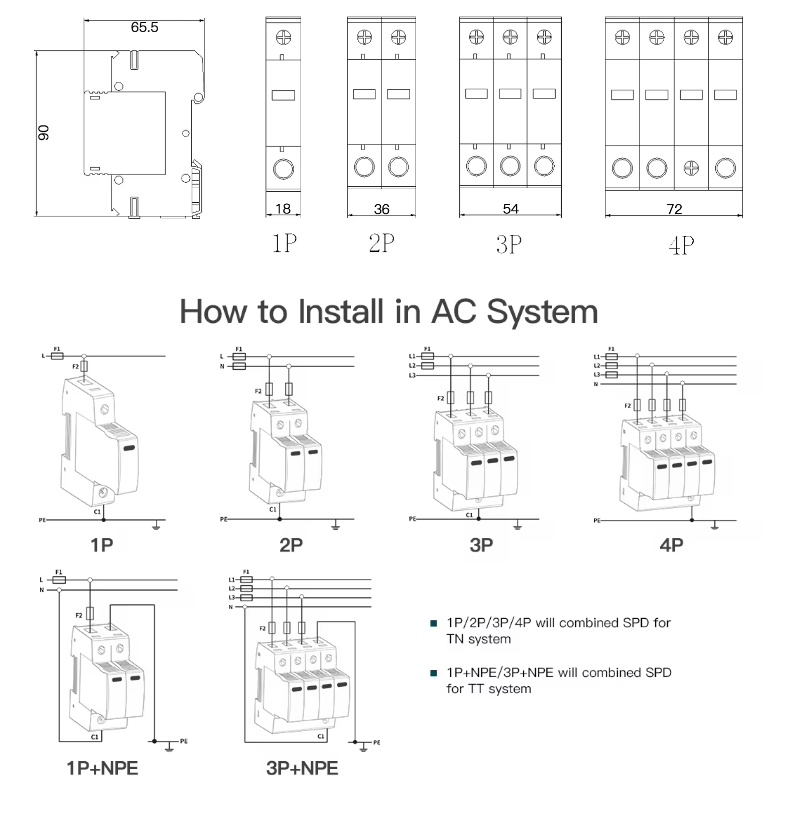

Dimension
|
90*54*65mm
|
|||
|
Material/corlar
|
PA66GF30 VO
|
|||
|
IP code ( IEC EN 60529)
|
IP20
|
|||
