Dual thermostat ZR011
1.Features
Dual thermostat ZR011
1)NO and NC in one casing
2)Separate adjustable temperatures
3)High switching capacity
4)Terminals easily accessible
5) Hot sale Clip fixing
2.Technical Data
| Switch temperature difference | 7K (± 4K tolerance) |
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Service life | > 100 000 cycles |
| Max. switching capacity | 250VAC, 10 (2) A |
| 120VAC, 15 (2) A | |
| DC 30W | |
| Connection | 4-pole terminal, clamping torque 0.5Nm max.:
rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail, EN60715 |
| Casing | plastic according to UL94 V-0. light grey |
| Dimensions | 67 x 50 x 46mm |
| Weight | approx. 90g |
| Fitting position | variable |
| Operating/Storage temperature | -45 to +80°C (-49 to +176°F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type | IP20 |
| Approvals | CE |

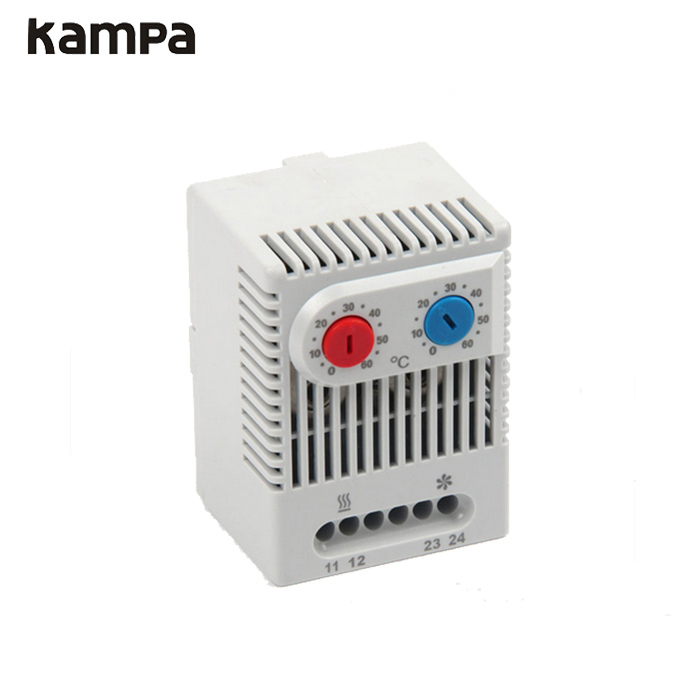

3.Product display

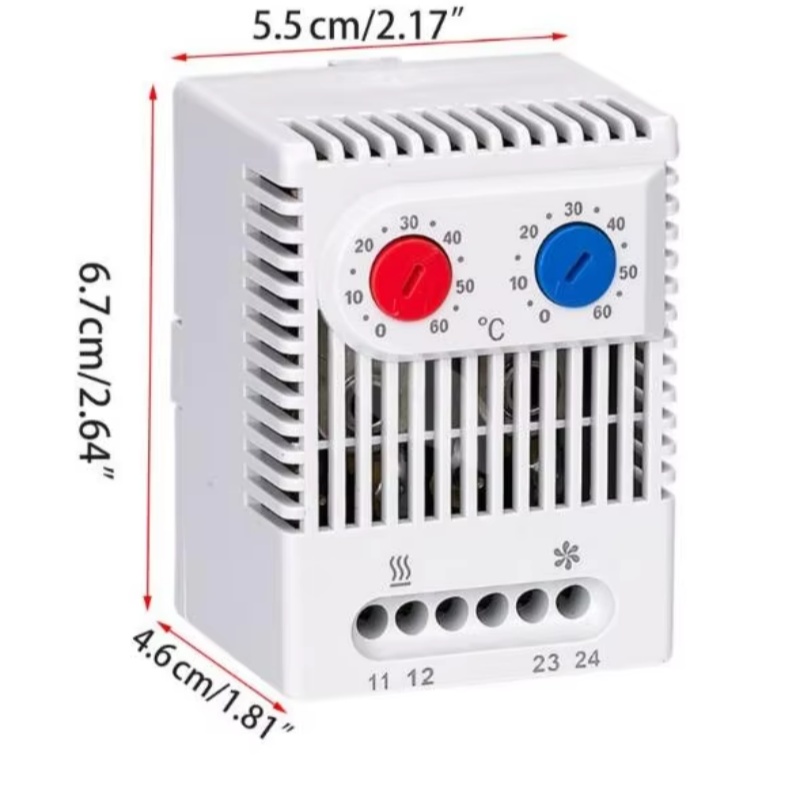

4.Dimensions

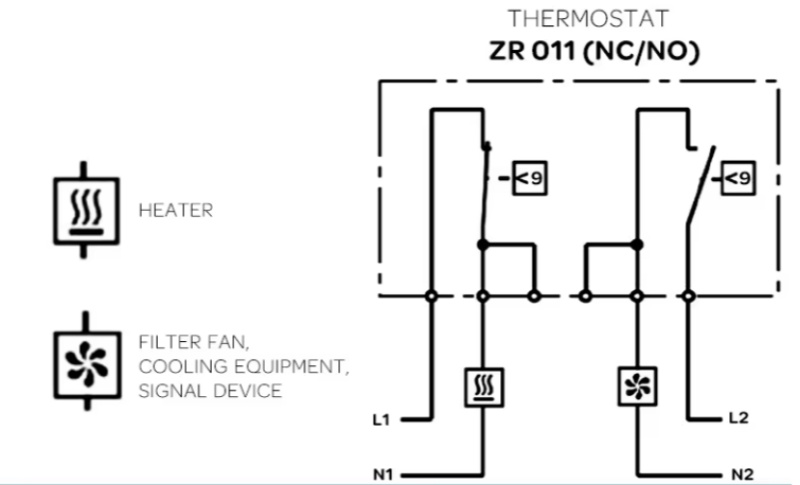

5.Example of connection
6.Art. NO.
| Art. No. | Setting range | Setting range | Setting range | Setting range |
| 01172.0-0 | contact breaker,
normally closed |
0 to +60°C | contact maker,
normally open |
0 to +60°C |
| 01172.0-01 | contact breaker,
normally closed |
+32 to +140°F | contact maker,
normally open |
+32 to +140°F |
| 01175.0-00 | contact breaker,
normally closed |
-10 to +50°C | contact maker,
normally open |
+20 to +80°C |
| 01175.0-01 | contact breaker,
normally closed |
+14 to +122°F | contact maker,
normally open |
+68 to +176 °F |
| 01176.0-00* | contact maker,
normally open |
0 to +60°C | contact maker,
normally open |
0 to +60°C |
| 01176.0-01* | contact maker,
normally open |
+32 to +140°F | contact maker,
normally open |
+32 to +140°F |
| *For regulating heat exchangers and fans (e.g LE 019) and as an alarm contact
for monitoring the interior temperature of electronic enclosures. |
||||
