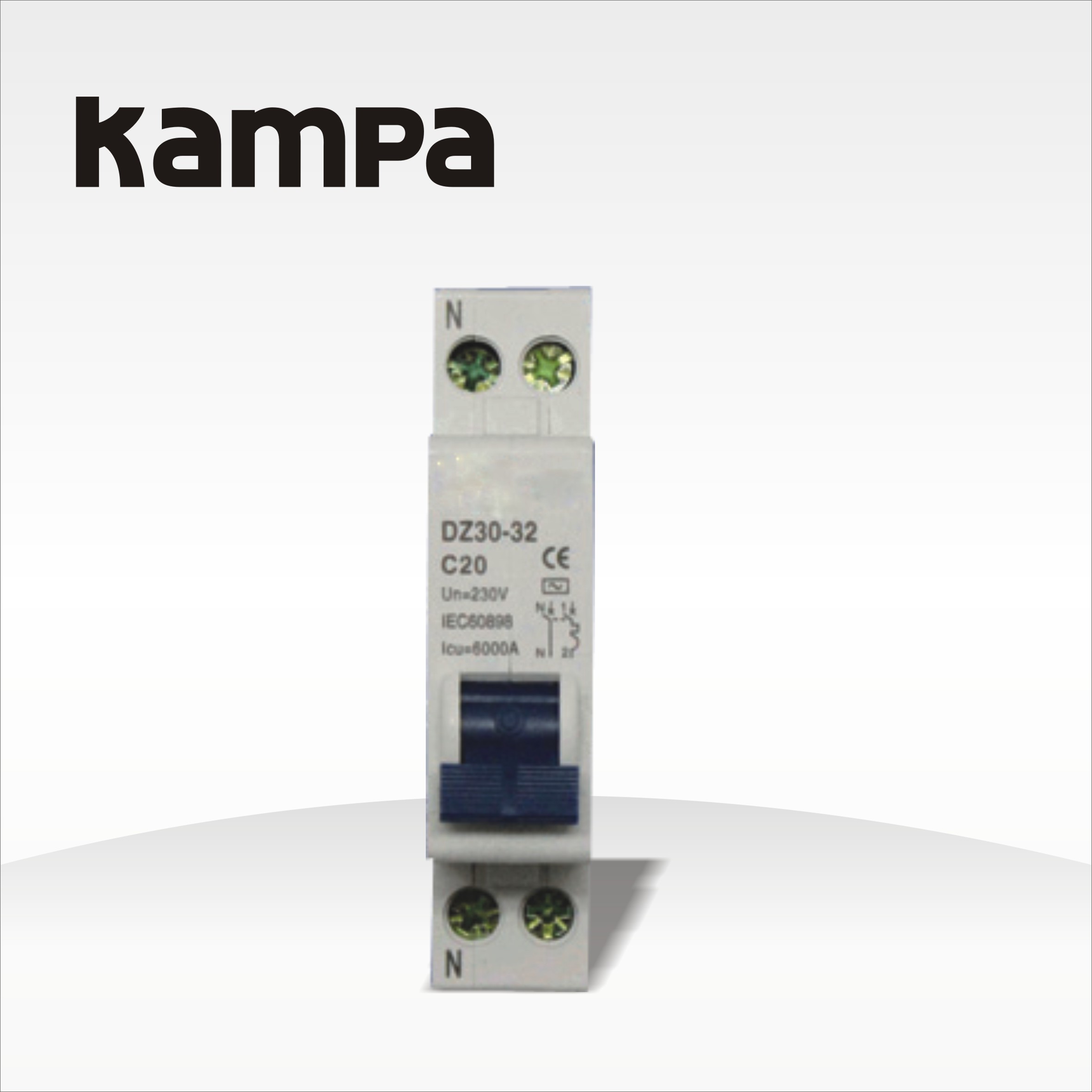

DZ30-32 (DPN) Mini Circuit Breaker MCB

DZ30-32 (DPN) Mini Circuit Breaker MCB

Application of DZ30-32 (DPN) Mini Circuit Breaker MCB

DZ30-32 (DPN) Mini Circuit Breaker

DZ30-32 (DPN) Mini Circuit Breaker

DZ30-32 series Mini Circuit Breaker is mainly used in AC50HZ or 60HZ,rated 230V,rated current to 32A for overload and short-circuit protection as well as for unfrequented switching under normal case, especially applicable in lighting distribution system of industry and commercial.This product conform to GB10963,IEC60898 standard.

Specification of DZ30-32 (DPN) Mini Circuit Breaker MCB

  • As per rated current: 6A, 10A,16A,20A,25A,32A total 6 types.
  • Instantaneous release type: C type (5ln~10ln)
  • Operated short-circuit capacity:4500A
  • Mechanical and electrical life: >4000 times.

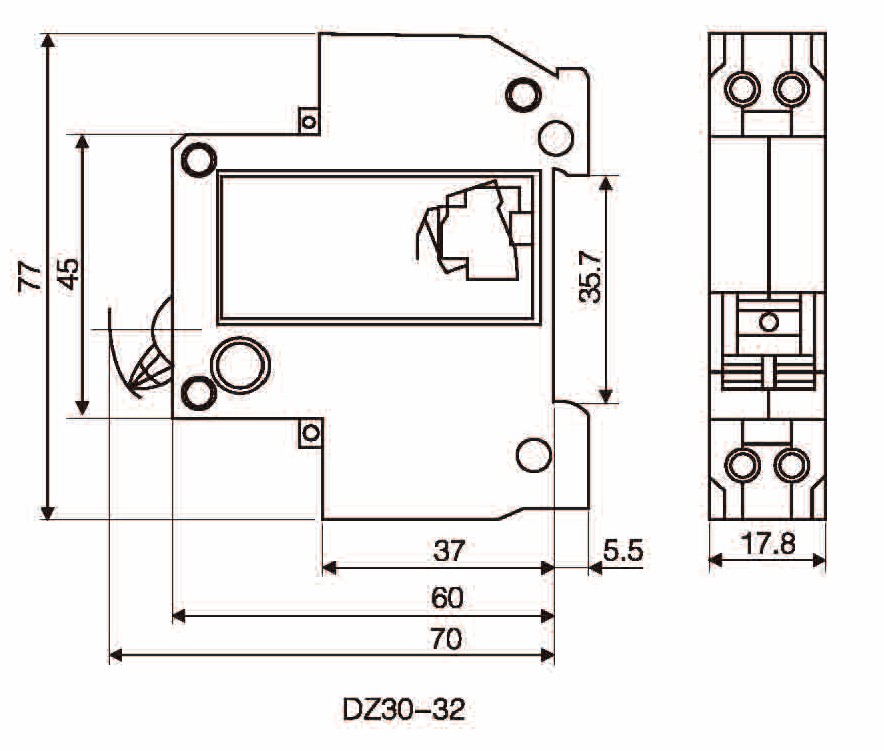

 Dimension and Mounting of DZ30-32 (DPN) Mini Circuit Breaker MCBDZ30-32 MCB
