High quality L7 type MCB DC Circuit Breakers for Solar Stystem

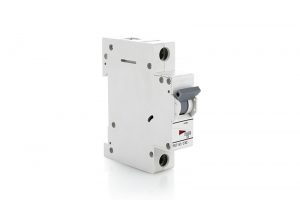

226A4091

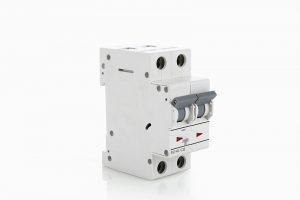

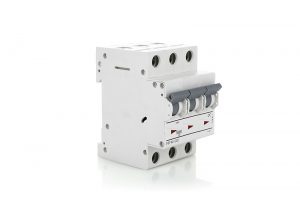

226A4096 226A4102

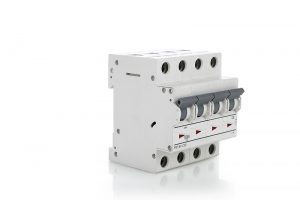

226A4103



1.DC MCB is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the systems.
2.This product is novel in structure, light in weight, reliable and excellent in performance.
3.It has high breaking capacity and can trip quickly. Its case and body are made of highly fire-retardant and shockproof plastic
4.This product, with long life, is mainly used in AC 50Hz / 60Hz single-pole 240V or two / three / four-pole 415V circuit for overload and short circuit protection, as well as infrequent on-and-off switching electric equipment and lighting circuit in normal cases. This product conforms to GB10963 and IEC60898 standards

Specification

Item MINI CIRCUIT BREAKER
Code KP7-63
Pole 1P 2P 3P 4P
Current 1A,3A,6A,10A,16A,20A,32A,40,50A,63A
Voltage 250v/450v
Standard IEC/EN60898
Breaking Capacity 6KA,10KA
Characteristic Curve B,C,D
Working Temperature “-5°”to +40°
Protection Degree IP20
Electrical life More than 8000times
Mechanical life More than 2000times
Dimension(W)X(H)X(D) 18X80X71 36X80X71 54X80X71 72X80X71
Installation 35MM DIN RAIL
Accessory YES
Installation Altitude ≤2000M
