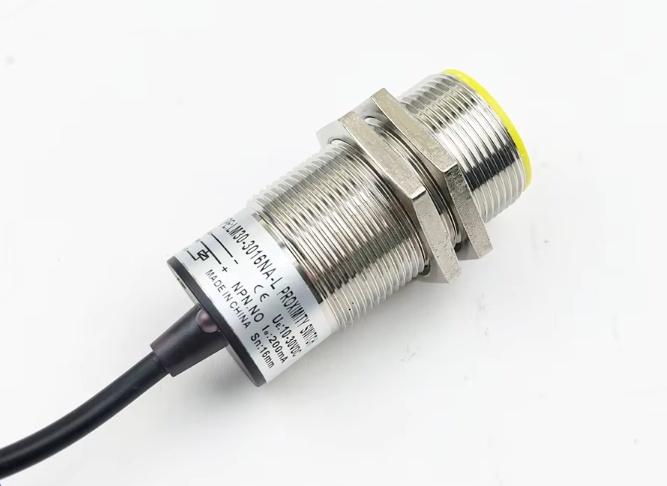

Inductive proximity sensor LM30 series

proximity sensor
Specification of proximity sensor LM30 series
Flush | Detection distance | 10MM | ||
DC6-36V | NPN | NO | 3010NA | |
NC | 3010NB | |||
NO+NC | 3010NC | |||
PNP | NO | 3010PA | ||
NC | 3010PB | |||
NO+NC | 3010PC | |||
Two wire system | NO | 3010LA | ||
NC | 3010LB | |||
AC90-250V | SRC Control label silicon | NO+NC | 3010A | |
NC | 3010B | |||
NO+NC | ||||
Relay output | ||||
Non Flush | Detection distance | 15mm | ||
DC6-36V | NPN | NO | 3015NA | |
NC | 3015NB | |||
NO+NC | 3015NC | |||
PNP | NO | 3015PA | ||
NC | 3015PB | |||
NO+NC | 3015PC | |||
Two wire system | NO | 3015LA | ||
NC | 3015LB | |||
AC90-250V | SRC Control label silicon | NO | 2015A | |
NC | 2015B | |||
NO+NC | 2015C | |||
Relay output | ||||
Control output | DC | 200mA | ||
SCR/Relay | 300mA | |||
Output voltage drop DC/AC | DC<3V AC<10mA | |||
Consumption current | DC<15mA AC<10mA | |||
Standard detected object | 15*15*1(A3 Iron) | |||
Repeat precision | 0.02 | |||
DC/AC Response frequency | 300HZ/25HZ | |||
Working environment temperature | below 25°C to 75°C | |||
Insulation resistance | ≥50MΩ | |||
Shell meterial | Metal | |||
Protection grade | IEC standard IP67 | |||
Altemative model at home and abroad | LJ30A3 |
- Order Marks
- Working Voltage
- NPN or PNP NO, NC or NO+NC. If AC, 2wire or 3wire?
- Detection space
- Diameter
- tell me exact model no. better
