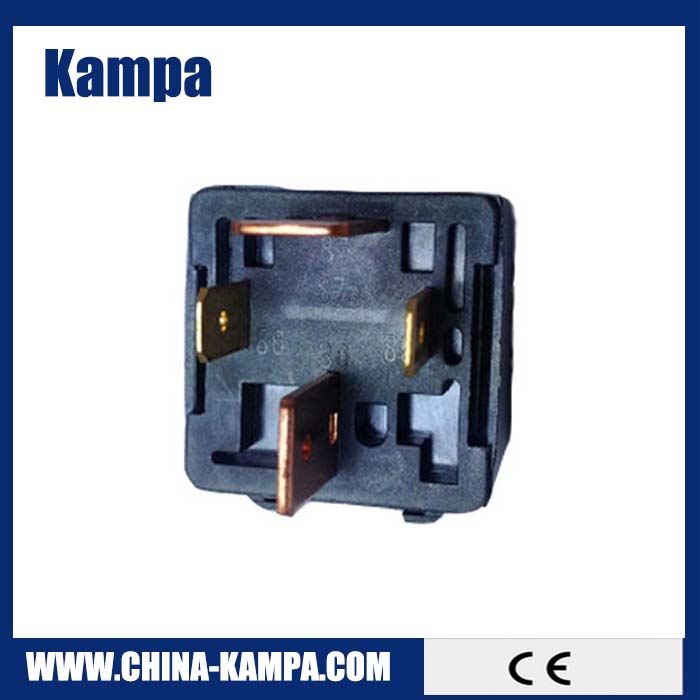

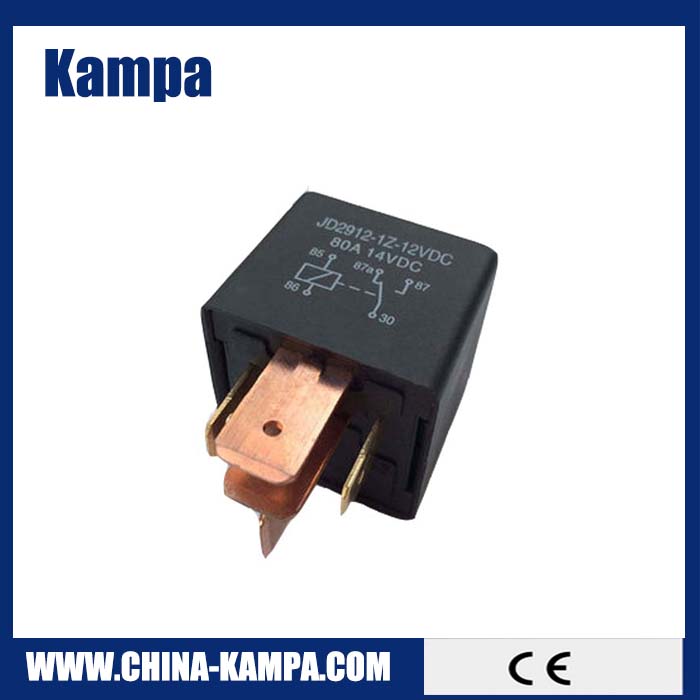

JD19.29 High Power 20A/30A Electrical pcb power relays
JD19.29 High Power 20A/30A Electrical pcb power relays
(HIGH QUALITY AUTO RELAY UNIVERSAL TYPE )
Description
This high-power automotive relay is designed for heavy-duty switching applications in 12V vehicle systems. With an 80A contact rating, it provides reliable control for high-current loads like motors, lights, and power accessories.
Key Features:
- High Current Rating: 80A continuous contact rating at 14VDC, ideal for heavy-duty automotive loads.
- Standard 12V Coil: DC12V coil voltage, compatible with most car, truck, and marine 12V systems.
- Robust Construction: Durable plastic housing with copper terminals for excellent conductivity and heat dissipation.
- SPDT Configuration: 5-pin design with common, normally open, and normally closed contacts for flexible circuit control.
- Easy Installation: Blade-style terminals for quick, secure wiring connections.
Applications:
- Automotive: Headlights, fuel pumps, cooling fans, starter motors, and power accessories
- Marine and RV 12V power systems
- Industrial low-voltage DC control circuits
Specification
| Product Name | Car Relay |
| Model | JD2912 |
| Coil Voltage | 24V DC |
| Rated Current | 80A |
| Contact Type | 1NC(SPST) |
| Pin Number | 4 |
| Indicator Light Color | Green |
| Relay Size | 3 x 2.8 x 3.5cm/1.2″ x1.1″ x 1.4″ (L*W*T) |

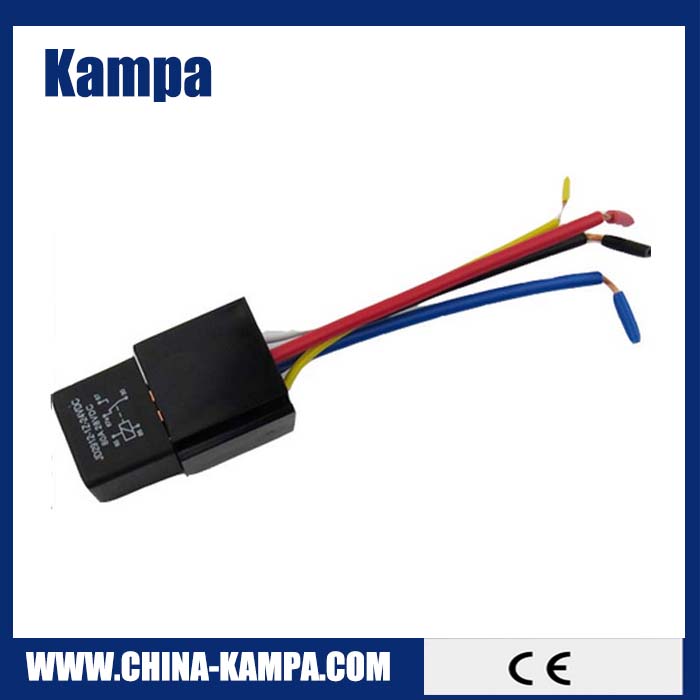

| Wire Socket Size | 3.3 x 2.8 x 2.8cm/1.3″ x 1.1″ x 1.1′” (L*W*T) |
| Cable Length | 11.5cm/4.5″ |
| Mounting Hole Dia | 6.5mm/0.26″ |
| External Material | Metal, Plastic, Electric Parts |
| Main Color | Black, Clear |
| Net Weight | 282g |
| Package Content | 5 x Relay
5 x Plastic Socket |
Feature with:the power relay for car power or engine,integrating you vechicles alarm systerm.The power relay is widely used for various electrical circuits used wihin the motor industry,from intermittent,from intermittent windshield wipers to cruise controllers,flashers,fog lamps,stero equipment and air-conditioning units
