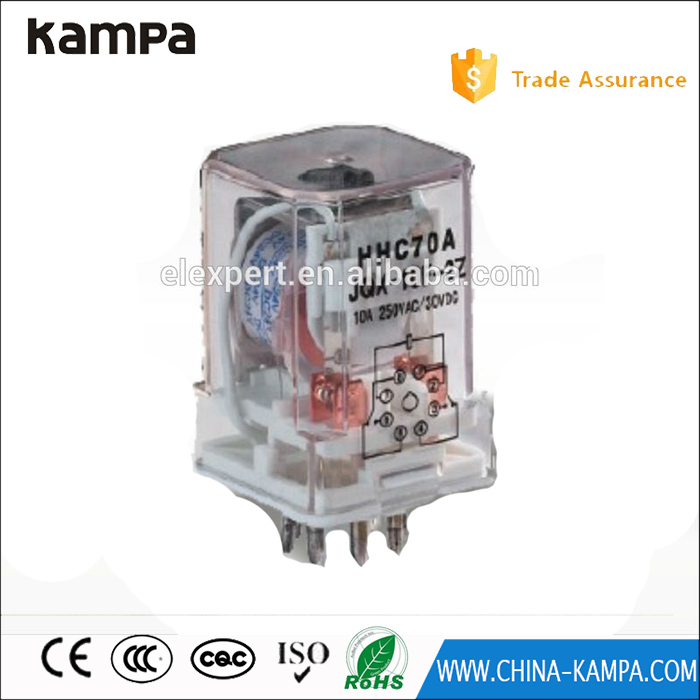

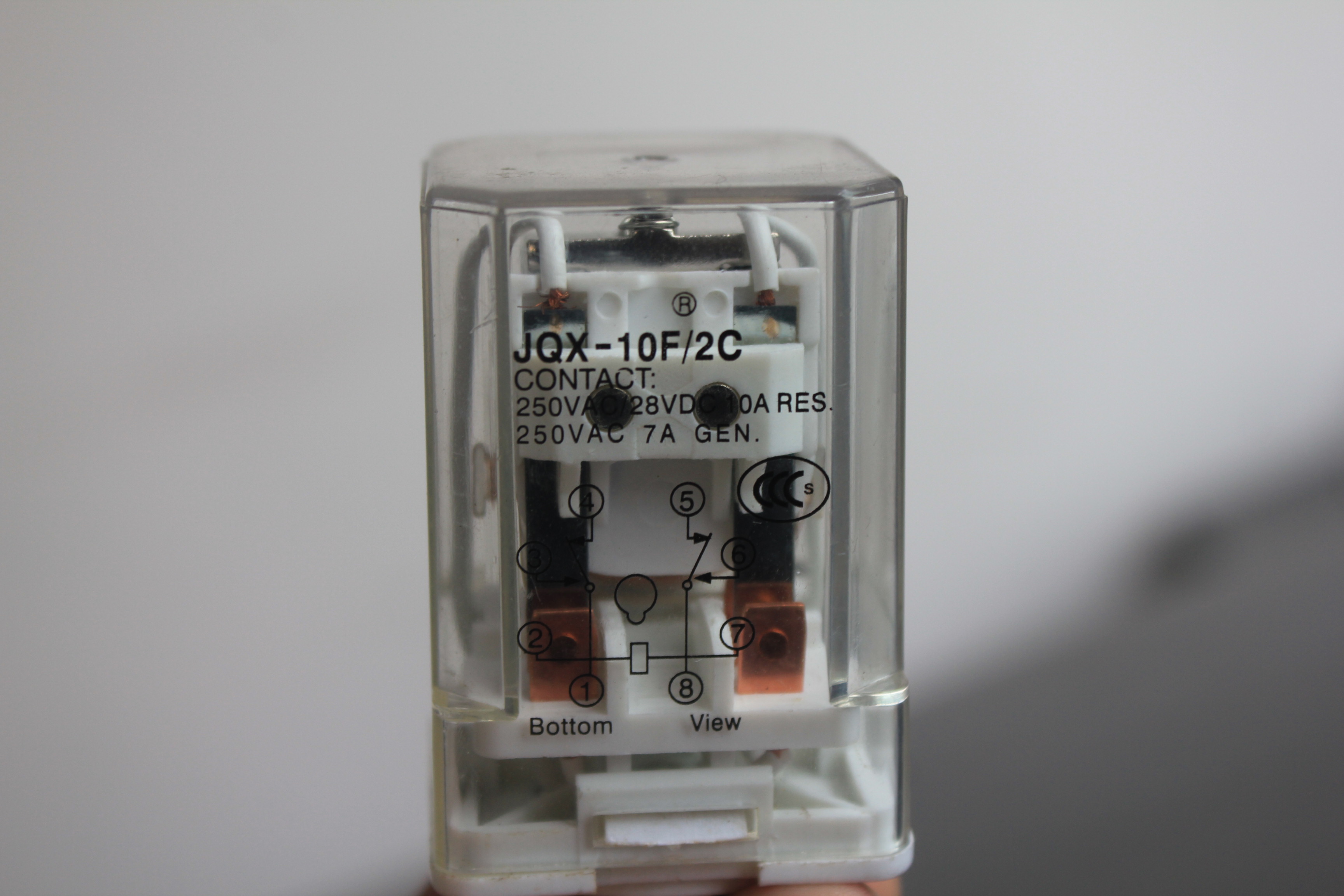

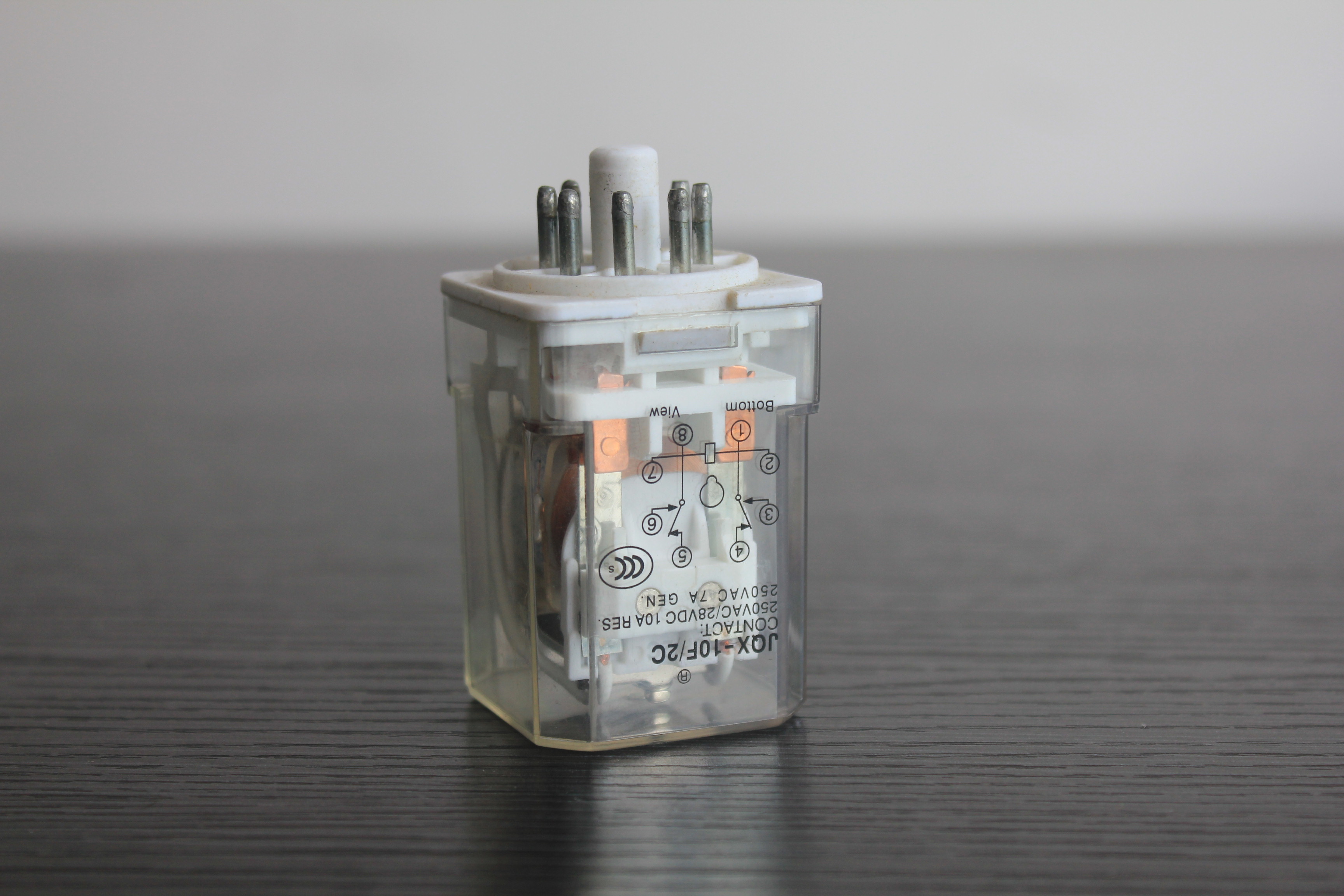

JQX-10F General Purpose Relay
JQX-10F General Purpose Relay
10 amp power relay
30 amp power relay
10 amp power relay
10 amp power relay
Technical info. JQX-10F General Purpose Relay
| Type | JQX-10F,JTX |
| Contact type | 2Z,2H,2D,3Z,3H,3D |
| Contact overload | 10A |
| Rated coil power | DC2.0W AC3.5VA |
| Coil specifications | DC6V~220V AC6V~380V |
| Outline dimensions | 35×35×55mm |
| Carton size | 440×310×345 |
| Carton number | 380 |
| Net weight | 15kg |
| Gross weight | 16kg |

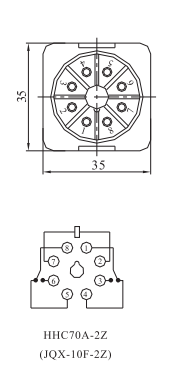

Dimension&Performance Curve JQX-10F General Purpose Relay
