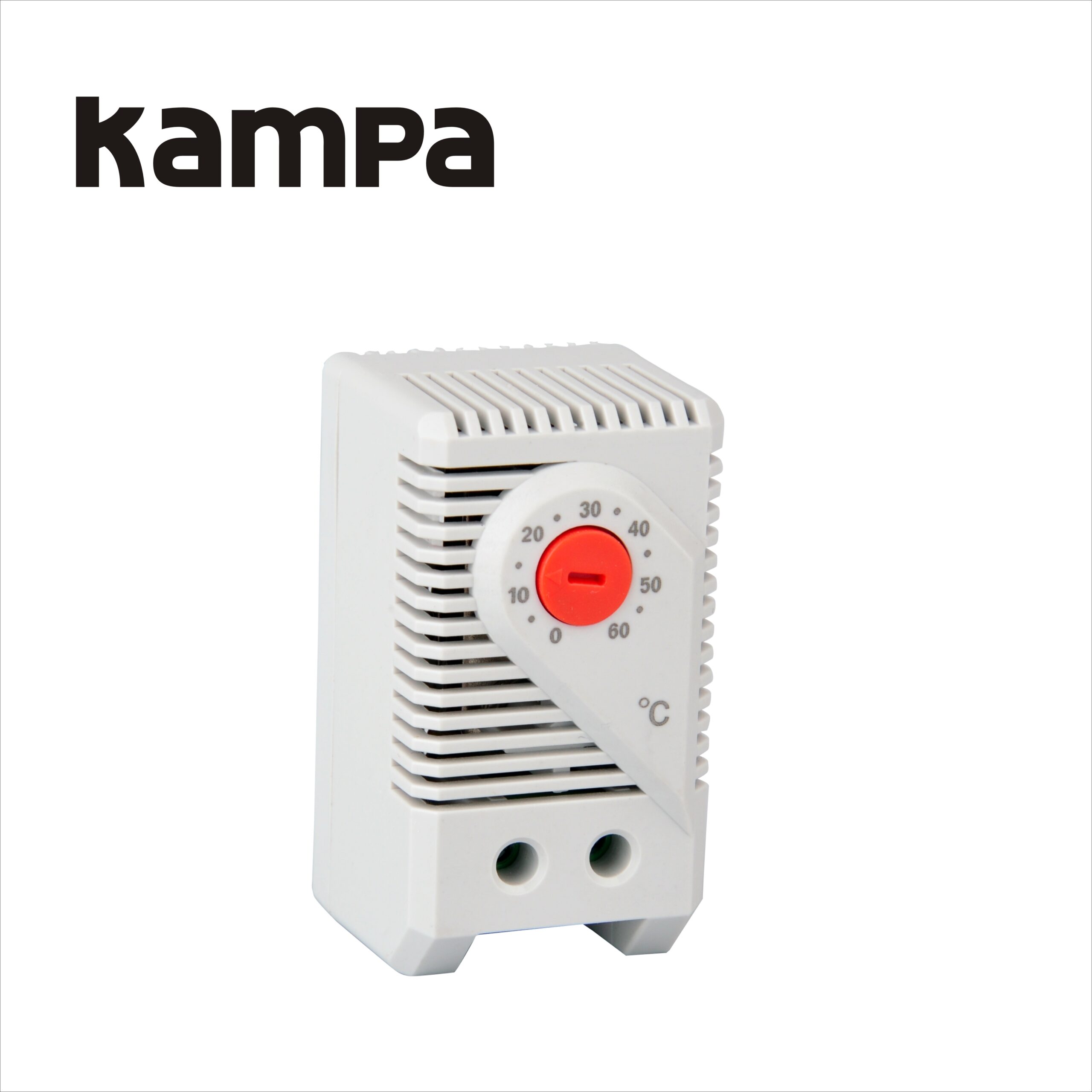

Mechanical thermostat KTO011 for cabinet
Function of Mechanical thermostat for cabinet
Thermostat (NC): KTO011 Thermostat opens on temperature rise – for regulating heaters or for switching signal devices. Comes with red temperature dial.
Thermostat (NO): KTS 011 Thermostat closes on temperature rise – for regulating filter fans and heat exchangers or for switching signal devices. Comes with bluetemperature dial.
Technical Date
| Switch temperature
difference |
7K (± 4K tolerance) |
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Contact resistance | < 10mO |
| Service life | > 100 000 cycles |
| Max. switching capacity | 250VAC, 10 (2) A ,120VAC, 15 (2) A |
| DC 30W | |
| EMC | acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
| Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |

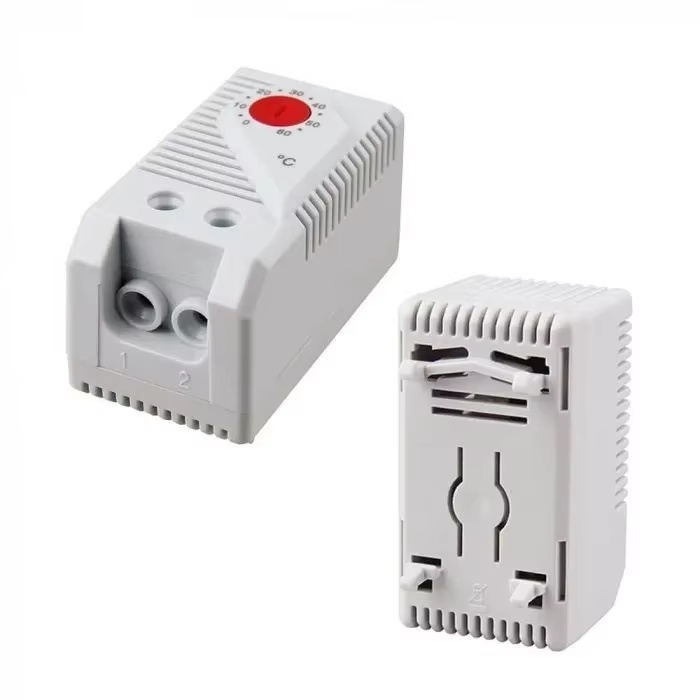

| Mounting | clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series) |
| Casing | plastic according to UL94-HB, black |

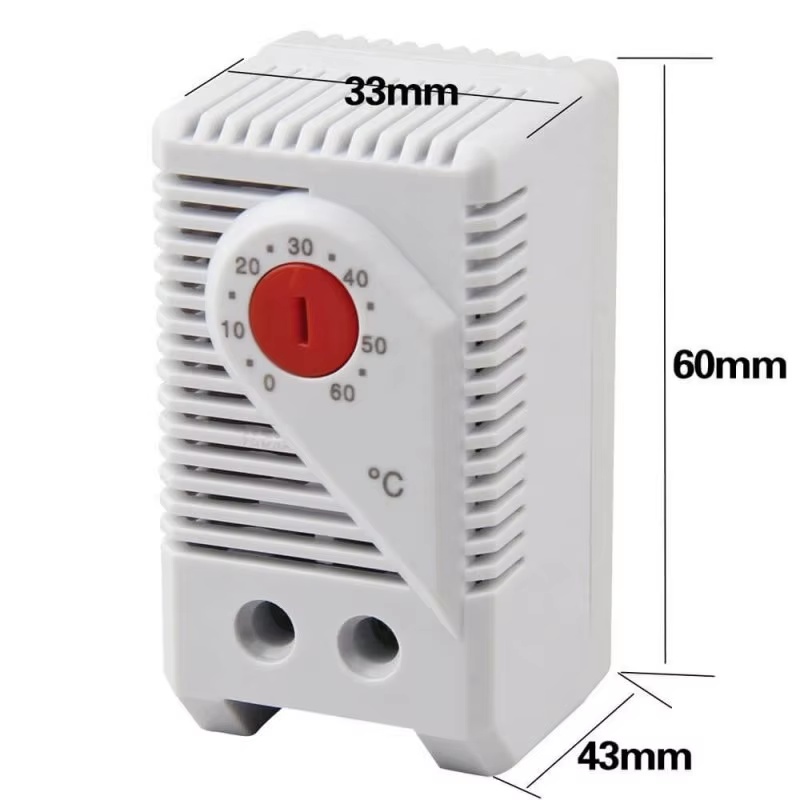

| Dimensions | 60 x 33 x 43mm |
| Weight | approx. 40g |
| Fitting position | variable |
| Operarting/Storage temperature | -45 to +80°C (-49 to +176°F) |
| Protection type | IP20 |
