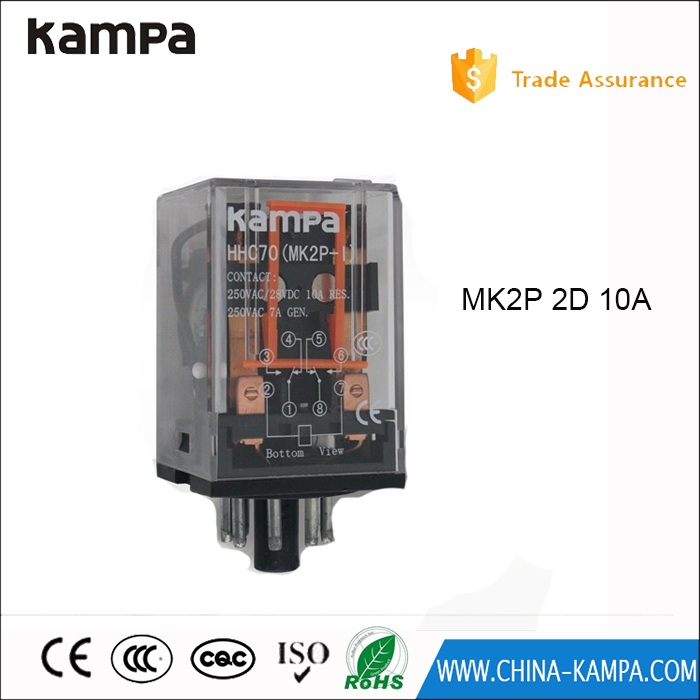

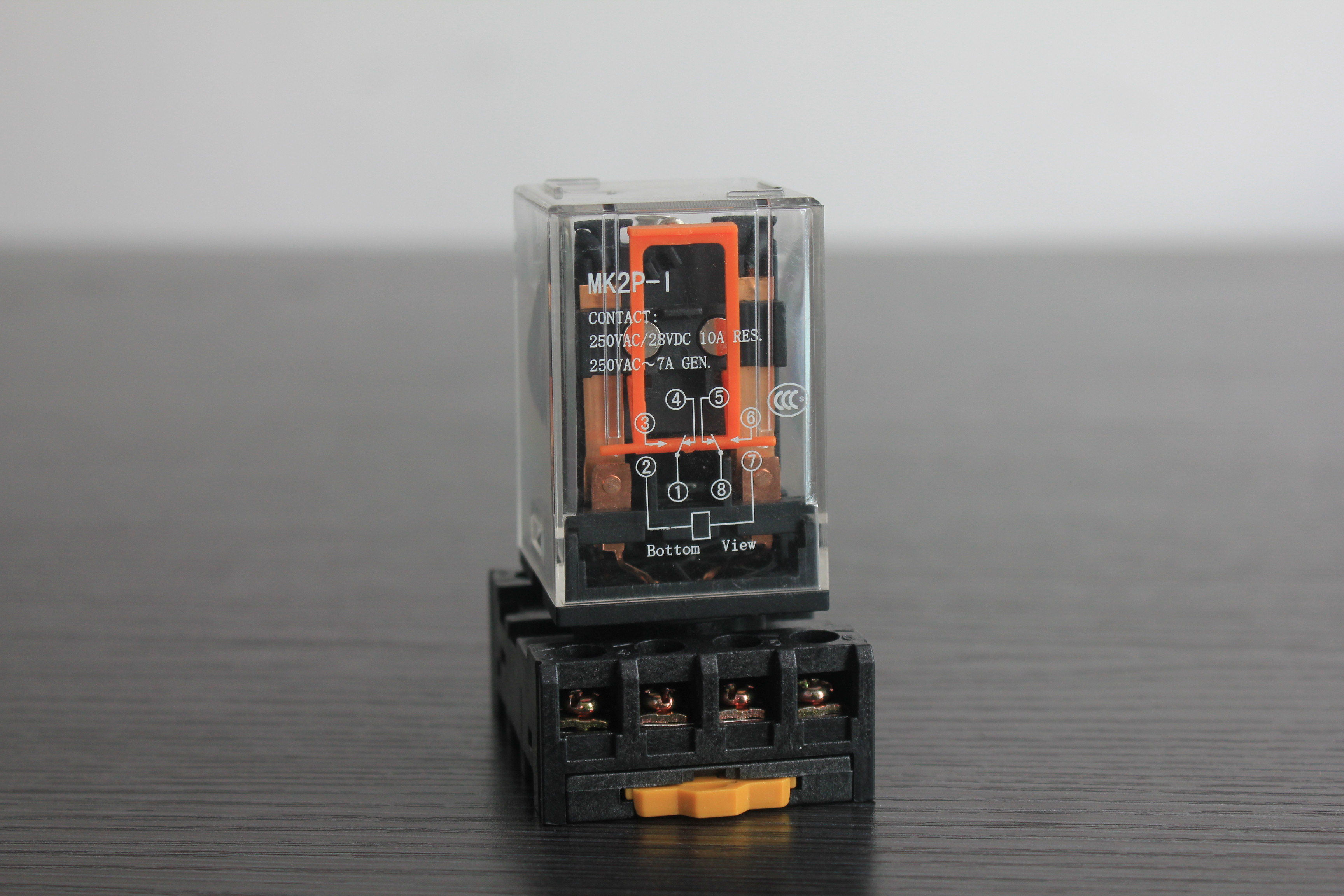

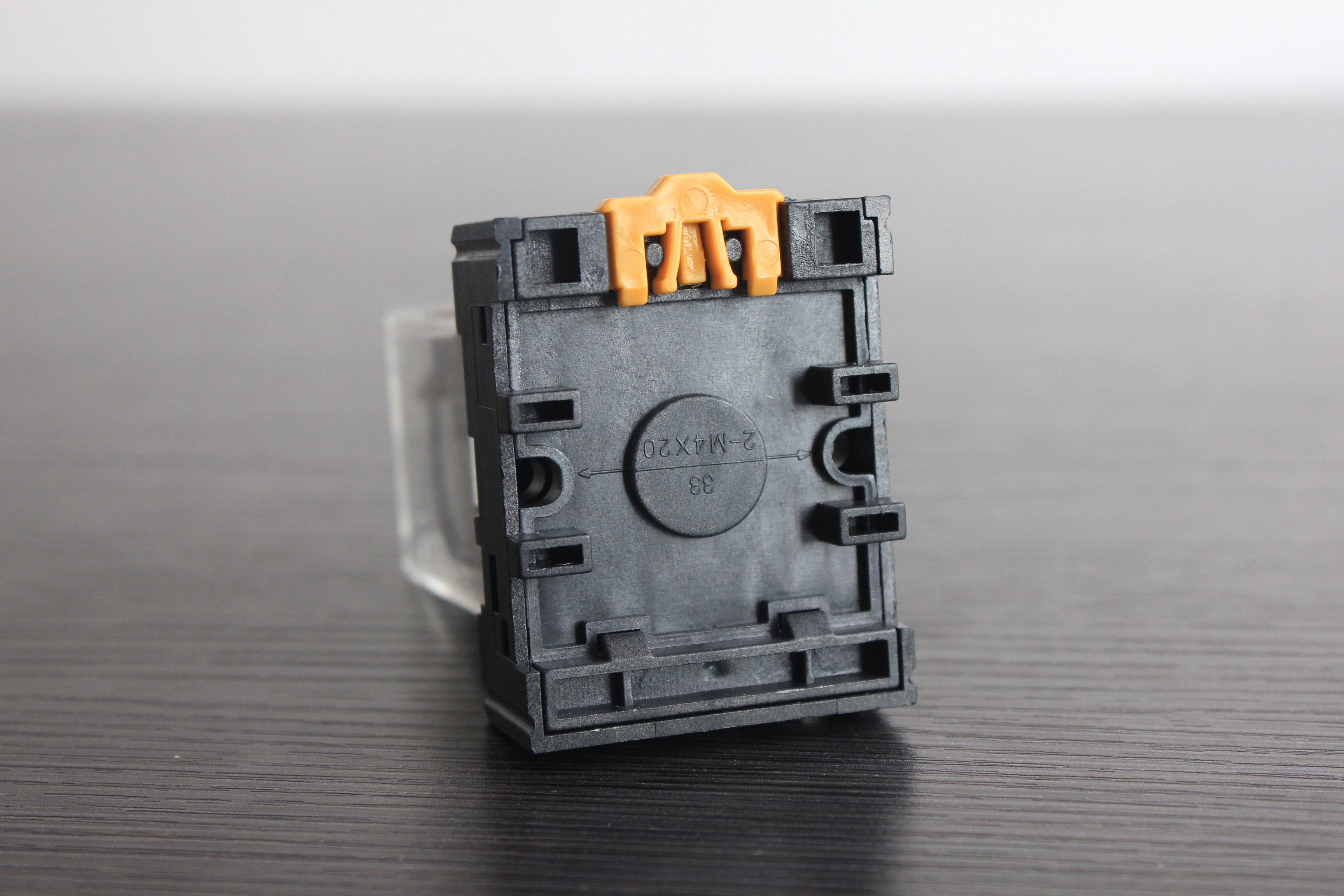

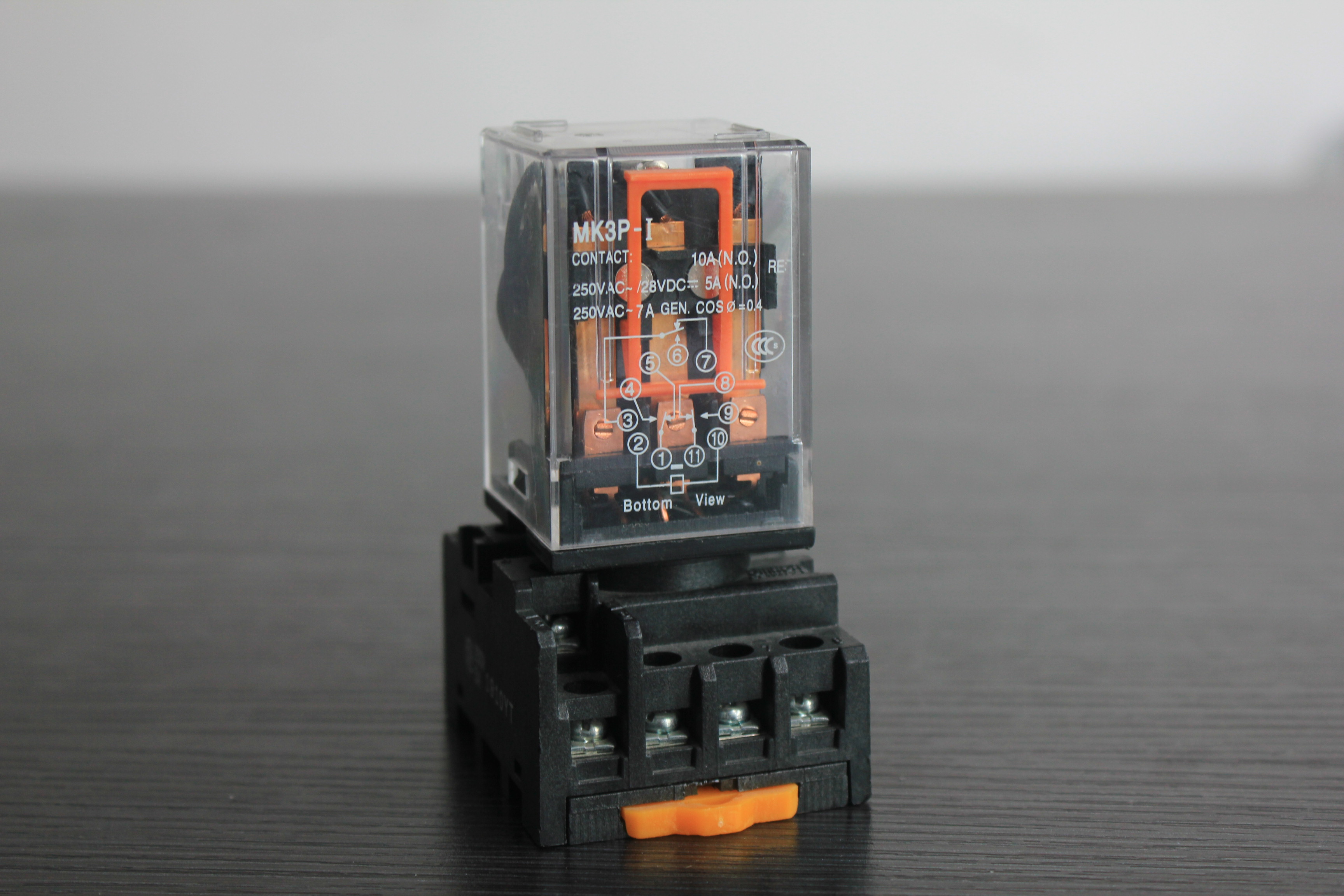

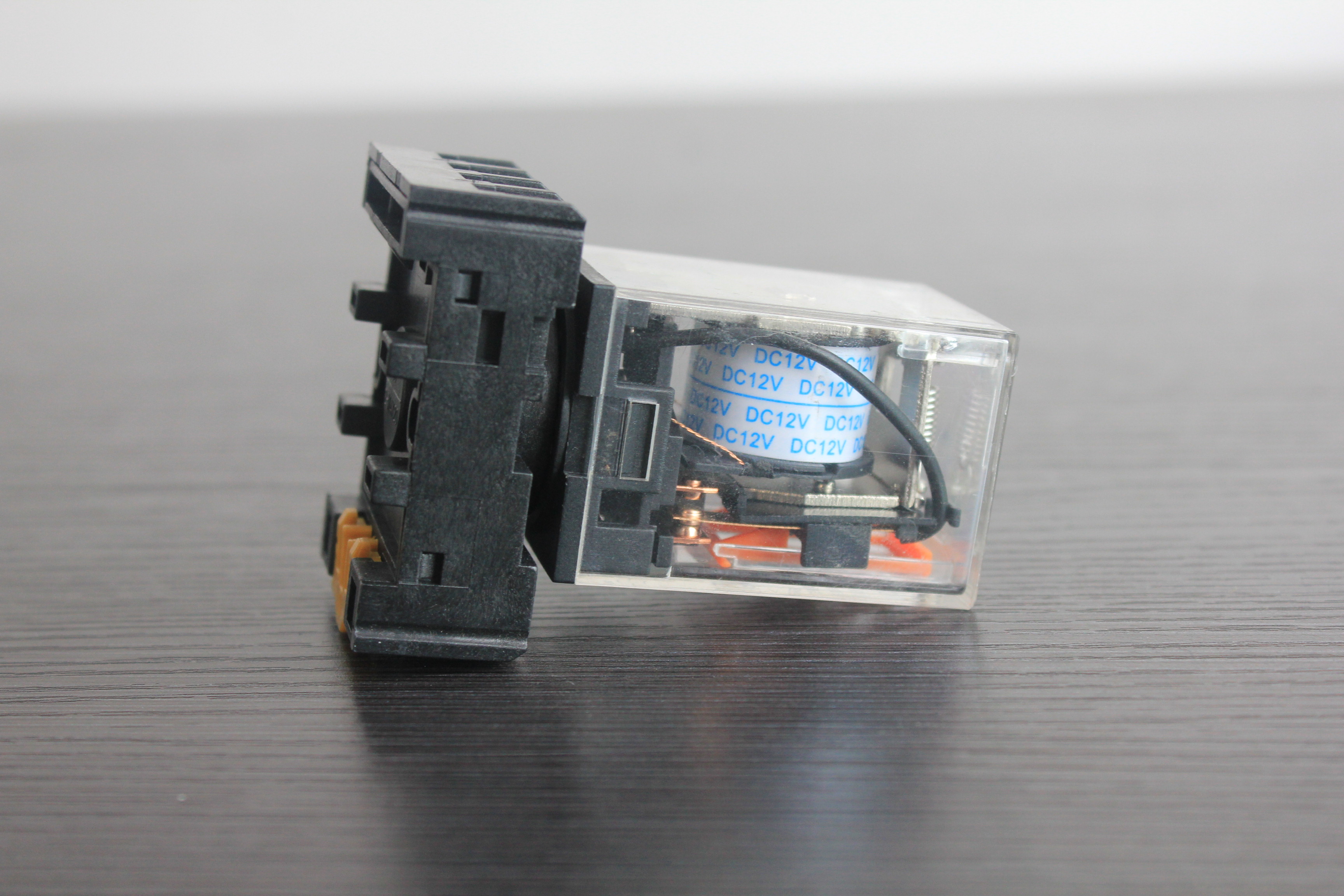

MK2P/MK3P General Purpose Relay
MK2P/MK3P General Purpose Relay
5pin electrical power relay ac 220 /240
power relay 10a
power relay 10a
power relay 10a
power relay 10a
Technical info.MK2P/MK3P General Purpose Relay
| Type | MK2P/MK3P |
| Contact type | 2Z,2H,2D |
| Contact overload | 10A |
| Rated coil power | DC 2.0W AC3.5VA |
| Coil specification | DC6V~220V AC6V~380V |
| Outline dimensions | 35.5×35.5×55.5mm |
| Carton size | 440×310×345 |
| Carton number | 380 |
| Net weight | 15kg |
| Gross weight | 16kg |

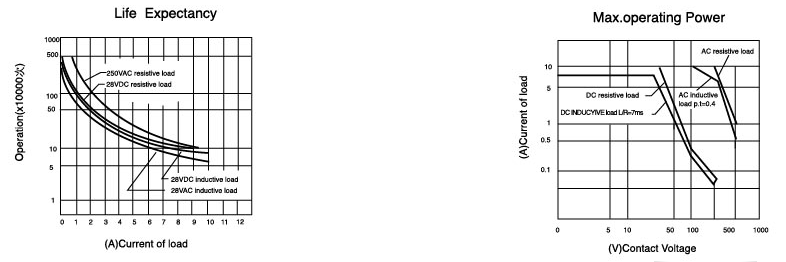

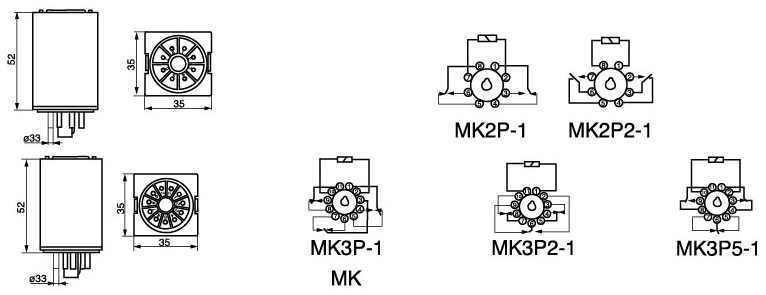

Dimension&Performance Curve MK2P/MK3P General Purpose Relay
power relay 10a
power relay 10a
