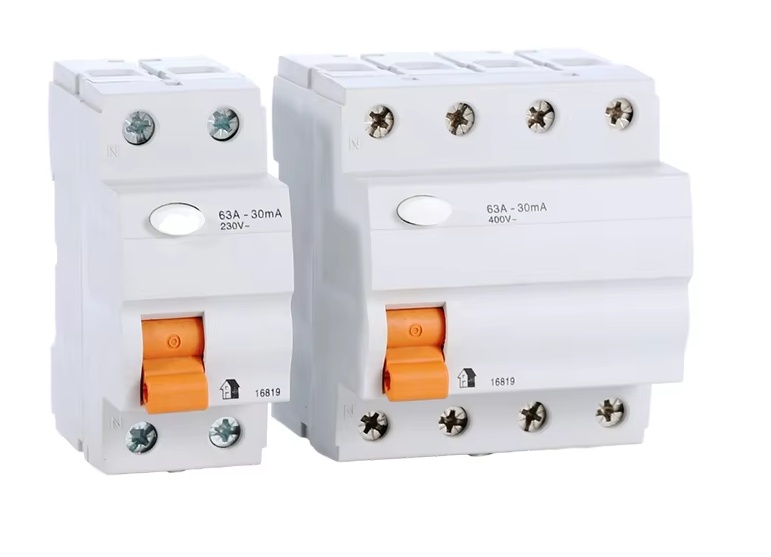

NBH1L Modular ID RCCB Din Rail Electric Device

NBH1L Modular Din Rail Electric Device

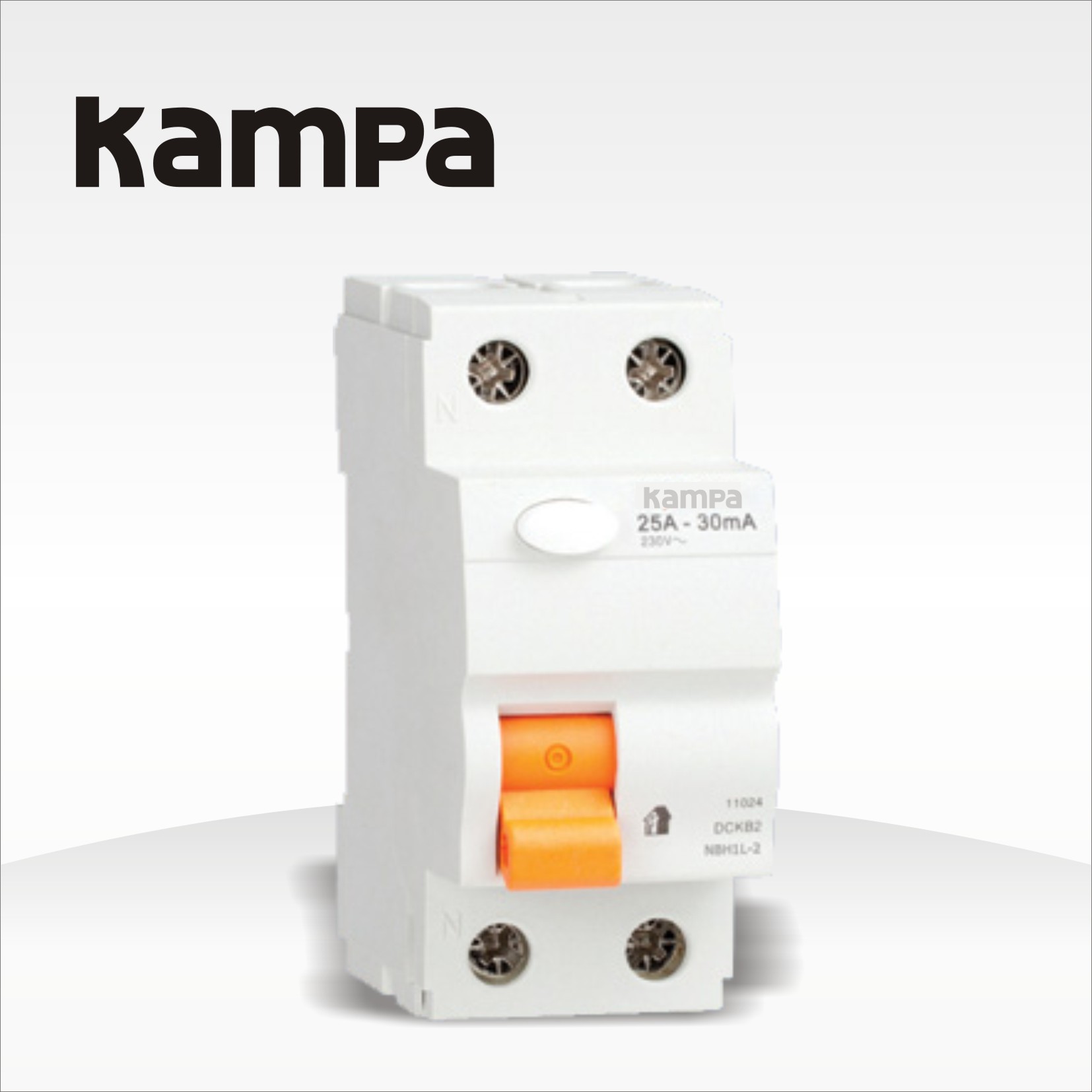

Protect your electrical installations against dangerous earth leakage faults with the Kampa 25A 30mA Residual Current Circuit Breaker (RCCB). Designed for DIN rail mounting, this device provides critical personal and fire protection by automatically disconnecting the circuit when it detects even the smallest leakage current (30mA).

Application of NBH1L Modular Din Rail Electric Device

The RCCB NBH1L are mainly used in varieties of factories; enterprises and building construction, 1 phase 230V and 3 phase 400V 50/60Hz, rated Current(A): 16, 20, 25, 40, 50, 63. They are not suitable for use in DC pulse system. They can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk, It is suitable to avoid the shock hazard and fire caused by earth leakage. They are in conformity with the standard of IEC61008.

Applications:

Residential electrical distribution boards
Commercial and office buildings
Light industrial environments
Protection of power outlet circuits and outdoor equipment

Merits of NBH1L Modular Din Rail Electric Device

Good quality, high breaking capability, updated structure, quick trip and guide installation, competitive price, excellent and safe performance, beautiful and compact appearance, etc.

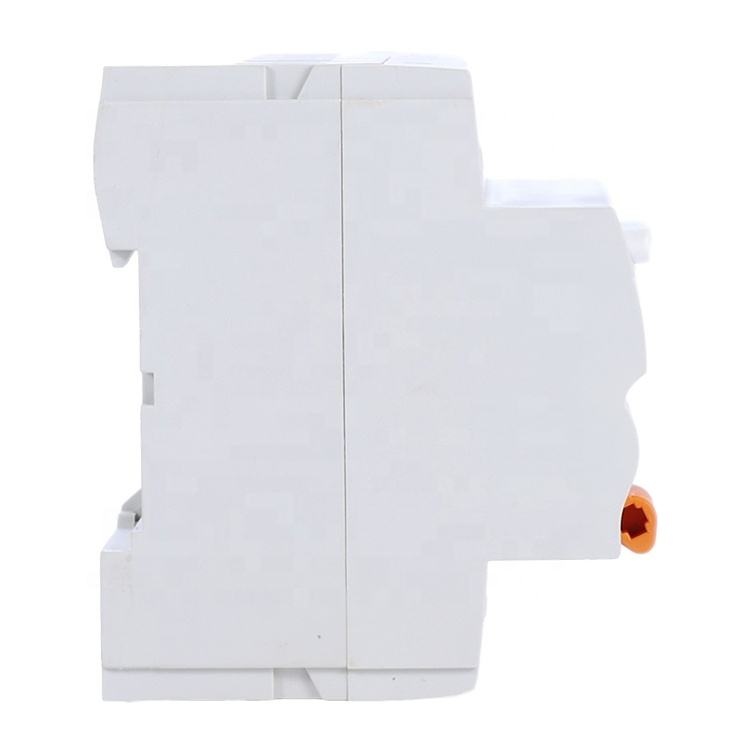

Dimension & Mounting

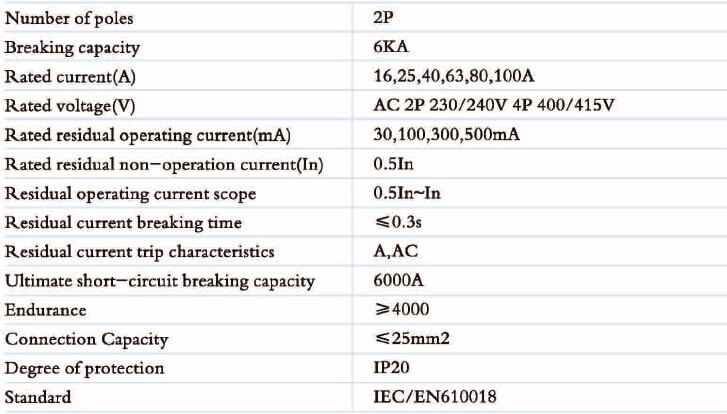

Main Technical Specifications of NBH1L Modular Din Rail Electric Device

Number of poles	`2P`
Breaking capacity	`6KA`
Rated current(A)	`16,25,40,63,80,100A`
Rated voltage(V)	`AC 2P 230/240V 4P 400/415V`
Rated residual operating current(mA)	30,100,300,500mA
Rated residual non-operation current(In)	0.5In
Residual operating current scope	0.5In~In
Residual current breaking time	≤0.3s
Residual current trip characteristics	A,AC
Ultimate short-circuit breaking capacity	6000A
Endurance	≥4000
Connection Capacity	≤25mm²
Degree of protection	`IP20`
Standard	IEC/EN610018
