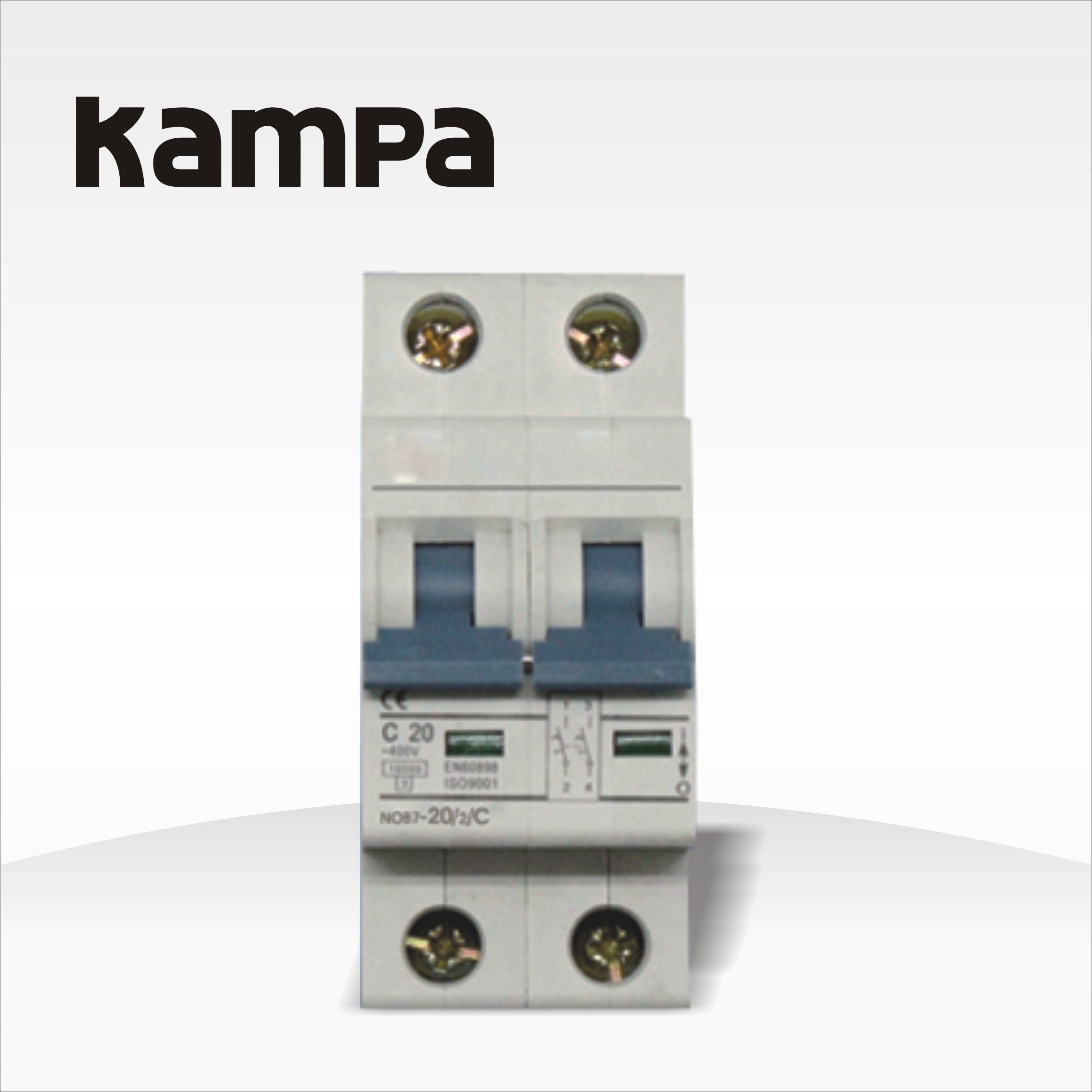

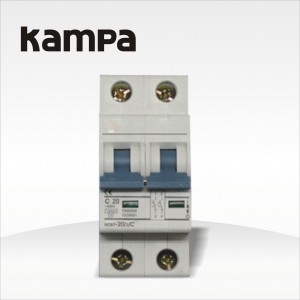

NOB7 High Breaking Mini Circuit Breaker

Application of NOB7 High Breaking Mini Circuit Breaker

NOB7 High Breaking Mini Circuit Breaker

NOB7 High Breaking Mini Circuit Breaker

The products NOB7 belong to the advanced level of the nineties in the world instead of the older generation of L7. They have protective function as shortage as overload, and are used in lighting distribution system in industry,commerce and dwelling, and protect fractional electric motors.And they also have many merits of high protective grade(up  to  IP20),high  breaking  capacity, reliable sensitive action, convenient, multipole assembling. long life etc. They are mainly adapted to the circuit of AC 50Hz, 230V in single pole, 400V in double, three, four poles for protecting overload and short circuit. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Specificationof NOB7 High Breaking Mini Circuit Breaker

– Conforms to standard of electrical:EN60898(IEC898)
– Rated current (Ue):230V/400V;50/60Hz
– Rated breaking capacity:
        10KA IEC898(0.5~63A) ;
        15KA IEC947-2(0.5~63A)
– Short circuit breaking capacity of DC:
        Max.48V(KL7…,10KA)single pole;
        Max.250V(KL7-DC,6KA)single pole
– Performance:C,D characteristic curve
– Max fuse that can be connected to:100AgL(>10KA)
– Selective grade:3
– Working ambient temperature:-5 to+40°C
– Enclosed protective class:P40(Under mounting)
– Life: Electrical & Mechanical:
        Not less of 8000 times switching operation
        Not less of 20000 times switching operation

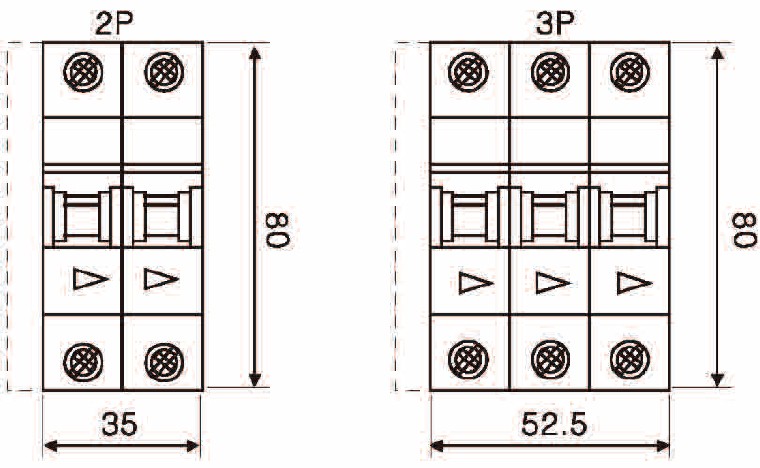

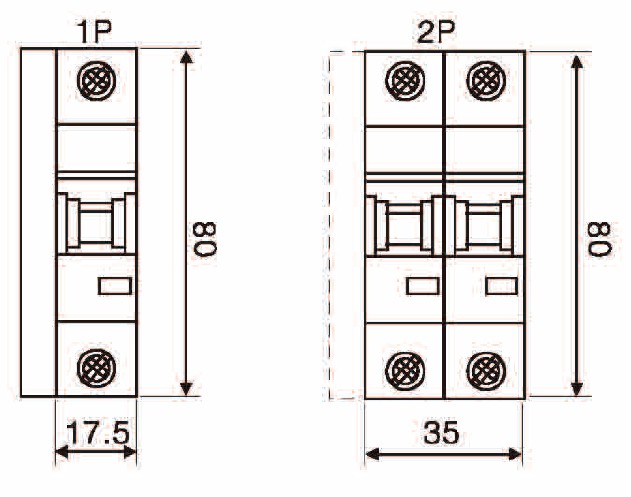

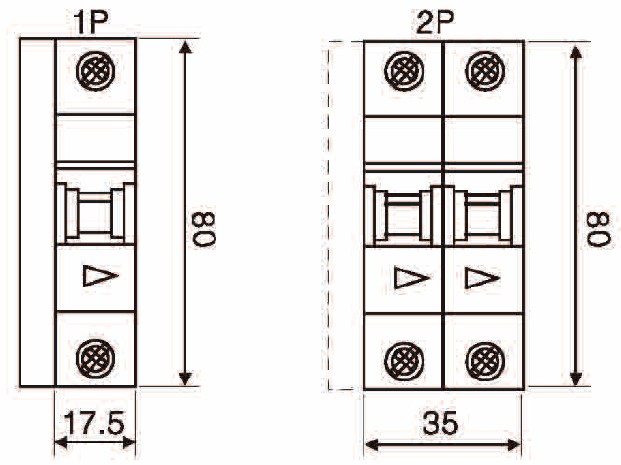

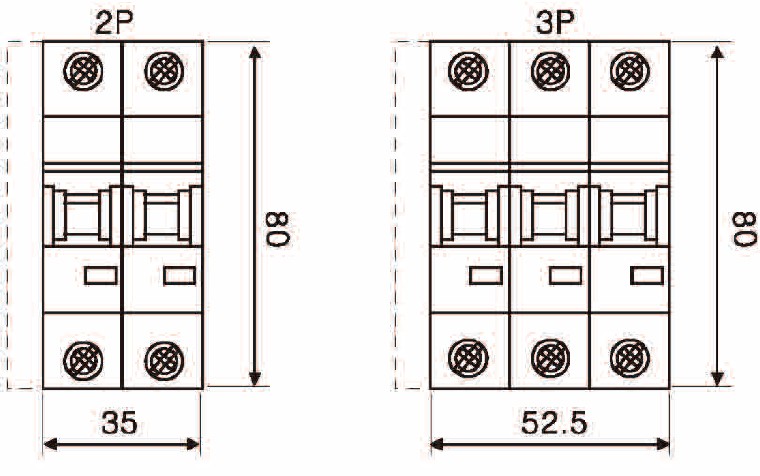

Mounting Diagram of NOB7 High Breaking Mini Circuit Breaker ]NOB7 MCB-1NOB72NOB7-3NOB7.4
