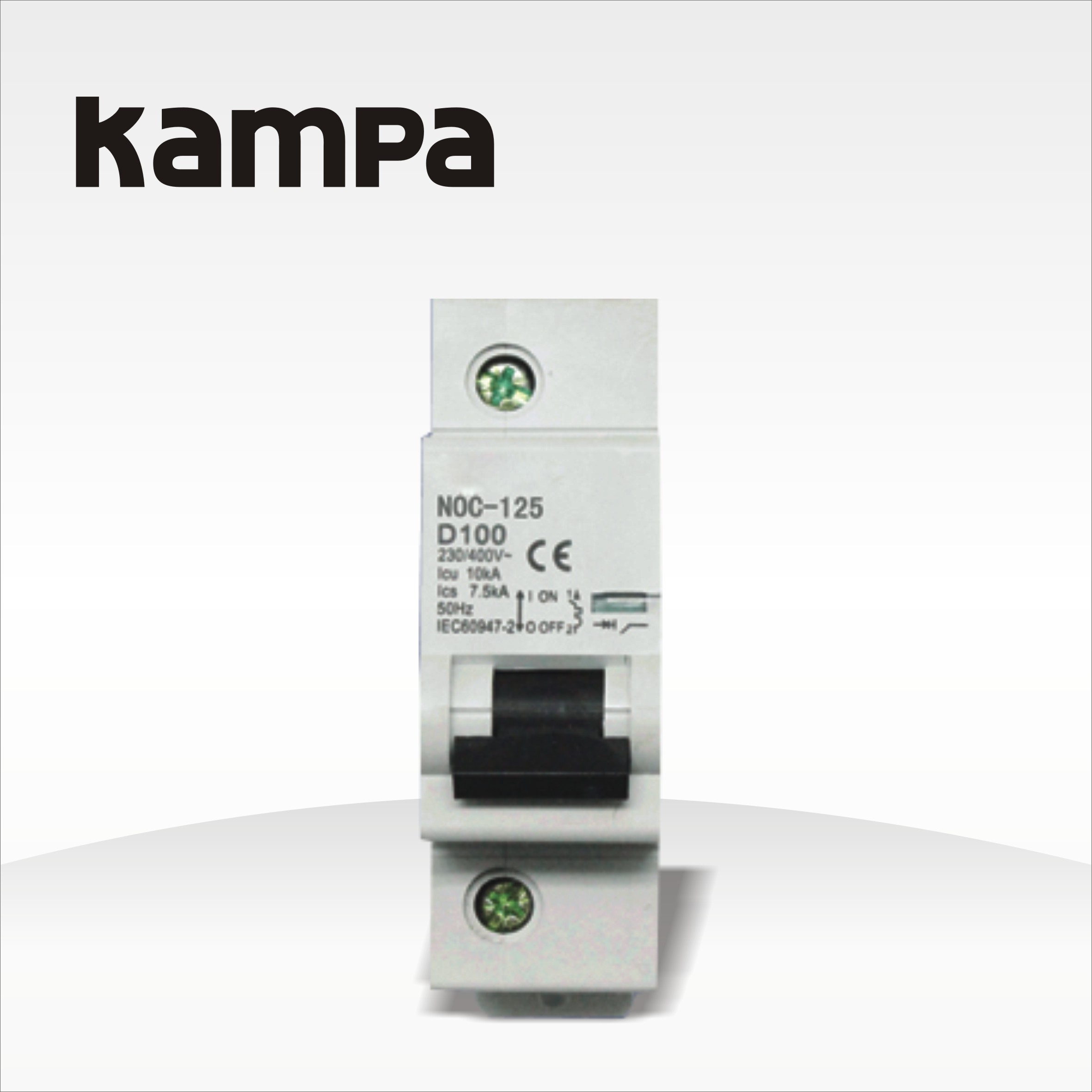

NOC-125 Mini Circuit Breaker MCB

NOC-125 Mini Circuit Breaker MCB

Application of NOC-125 Mini Circuit Breaker MCB

NOC-125 Mini Circuit Breaker

NOC-125 Mini Circuit Breaker

NOC -125 high breaking capacity circuit breaker is used in AC50hz or 60hz ,single pole 240v ,2,3,4 poles 415v ,for protecting the circuit which overload and short circuit may take place.It can be used in lighting and electric motor distribution system.Meantime it is applicable to unfrequently switch the electric apparatus and light circuit under the normal conditions.The products comply with IEC 60898 &GB 10963-1999.

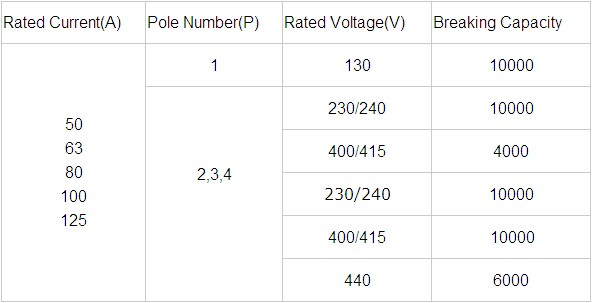

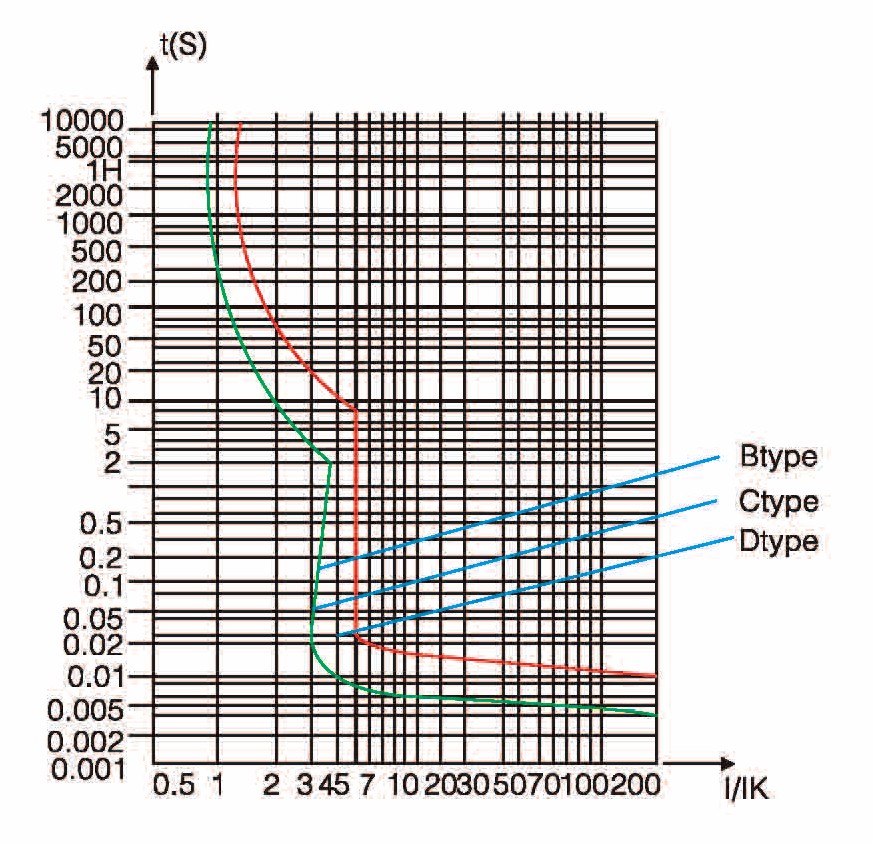

Specification of NOC-125 Mini Circuit Breaker MCBNOC-125 P Characteristic Curve of NOC-125 Mini Circuit Breaker MCBNOC-125 MCB-C

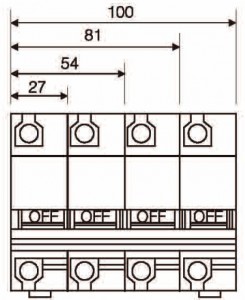

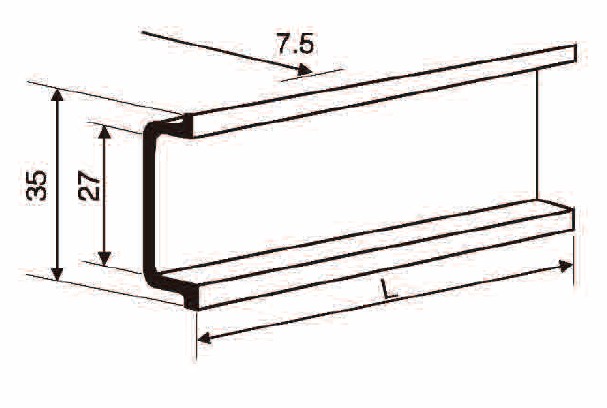

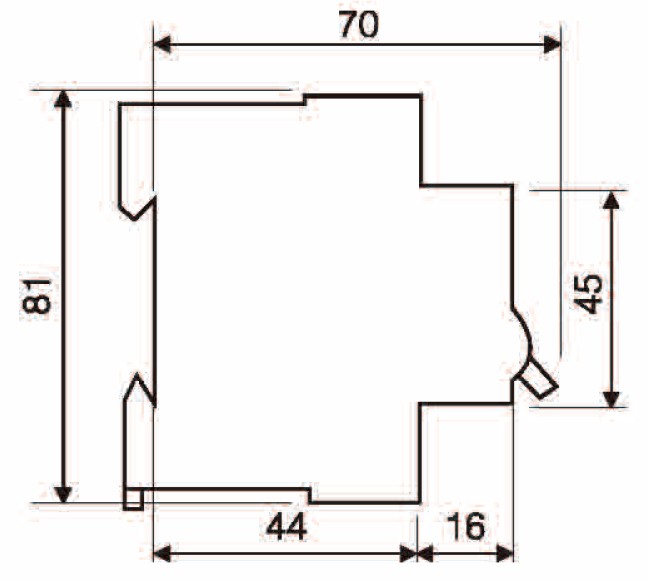

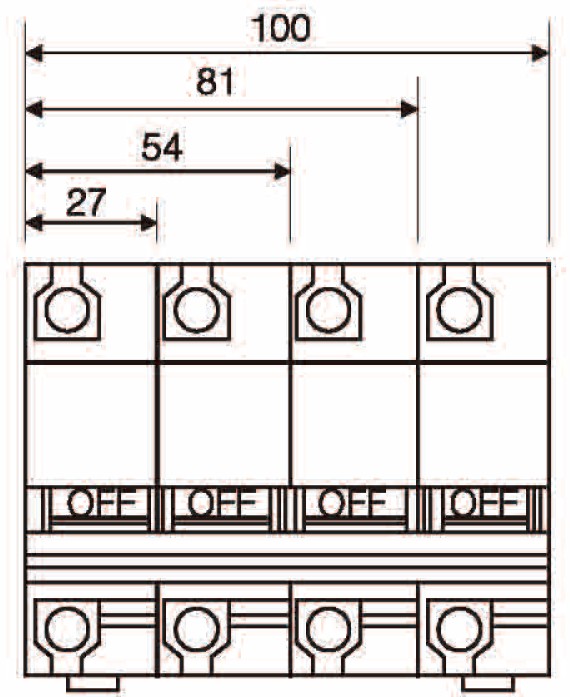

Dimensions of NOC-125 Mini Circuit Breaker MCB

]noc-125NOC-125 MCB.2NOC-125 MCB..3
