PF113A Relay Socket

PF113A Relay Socket

PF113A  Relay Socket

 Technical info. PF113A  Relay Socket

Voltage rating Current 12A
Voltage 300V
Dielectrics voltage-resistance 2000V/S
Material Flame retardant PA66+GF(V1/VO)
Collet  material QSN6.5-0.1
Installation way DIN
Ancillary attachment
Module NO
Package information Inner carton quantity 10pcs
Carton size 340mm*320mm*400mm
Weights 52g

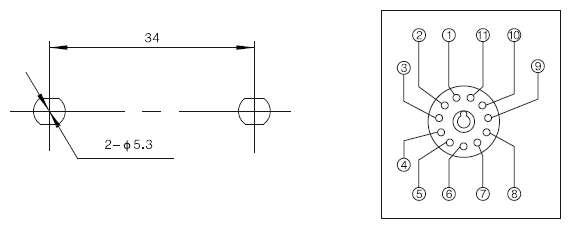

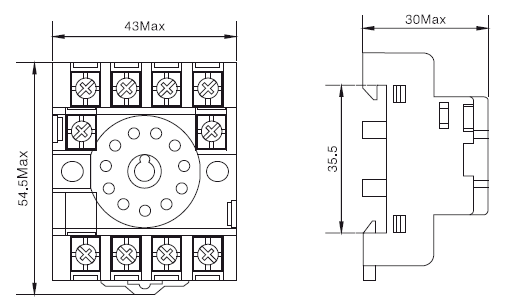

Outside drawing &Mounting dimensions   PF113A  Relay Socket

PF113A  Relay Socket

PF113A  Relay Socket
