PTF08A Relay Socket

Description

This PTF series relay socket (PTF08A for 8-pin, PTF11A for 11-pin) is designed for LY2/LY3, HH62P/HH63P, JQX-13F and other square power relays. With DIN rail mounting and screw terminals, it provides stable, easy-to-maintain connections for industrial control systems.

Full Description

Upgrade the reliability and efficiency of your control panels with the PTF series relay socket, the ideal base for most common square power relays. Whether you’re building automation systems, power distribution boxes, or industrial machinery, this socket ensures secure connections and simplified maintenance.

Key Features

Wide Compatibility:
- PTF08A: Fits 8-pin relays like LY2, HH62P, JQX-13F-2Z
- PTF11A: Fits 11-pin relays like LY3, HH63P, JQX-13F-3Z
DIN Rail Mounting: Standard 35mm rail clip design for quick, tool-free installation in control cabinets.
Secure Screw Terminals: Nickel-plated screw terminals provide reliable electrical contact, supporting up to 12A current for high-power applications.
Durable Flame-Retardant Housing: Made of high-quality engineering plastic with excellent insulation and heat resistance, meeting industrial safety standards.
Clear Terminal Markings: Numbered terminals help prevent wiring errors, speeding up installation and troubleshooting.
Easy Maintenance: Plug-and-play design allows you to replace relays without rewiring, reducing downtime during equipment repairs.

Technical info. PTF08A Relay Socket

Voltage rating	Current	10A
	Voltage	300V
Dielectrics voltage-resistance		2500V/S
Material		Flame retardant PA66+GF(V1/VO)
Collet material		QSN6.5-0.1
Installation way		DIN
Ancillary attachment
Module		NO
Package information	Inner carton quantity	10pcs
	Carton size	*395mm320mm260mm*
	Weights	43g

PTF08A Relay Socket

PTF08A Relay Socket

Description

Full Description

Key Features

Technical info. PTF08A Relay Socket

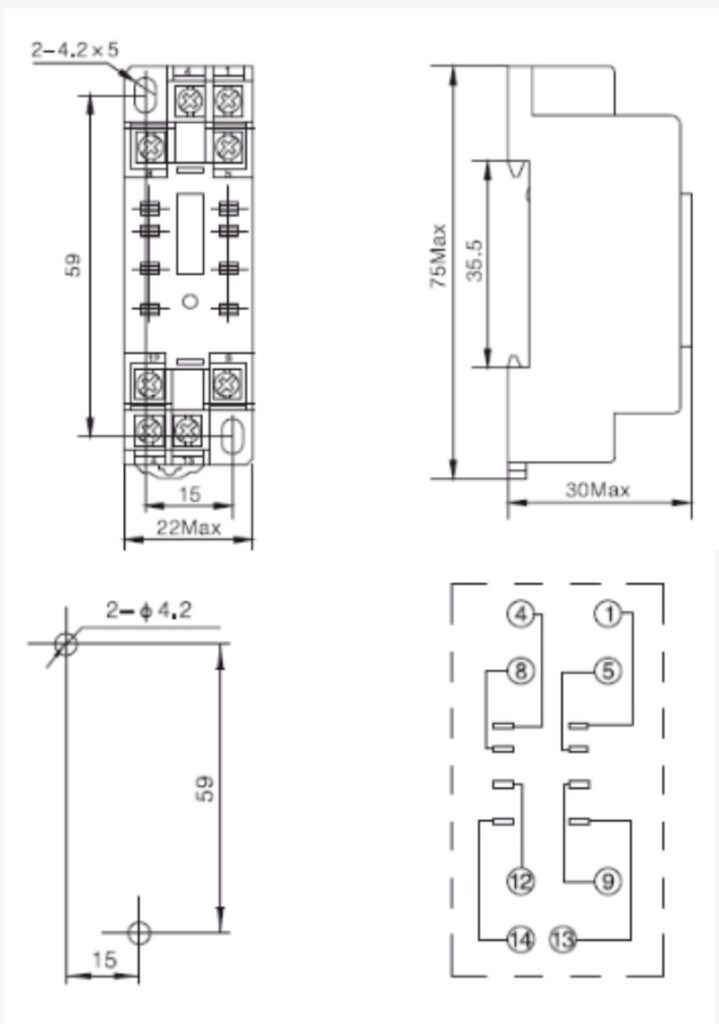

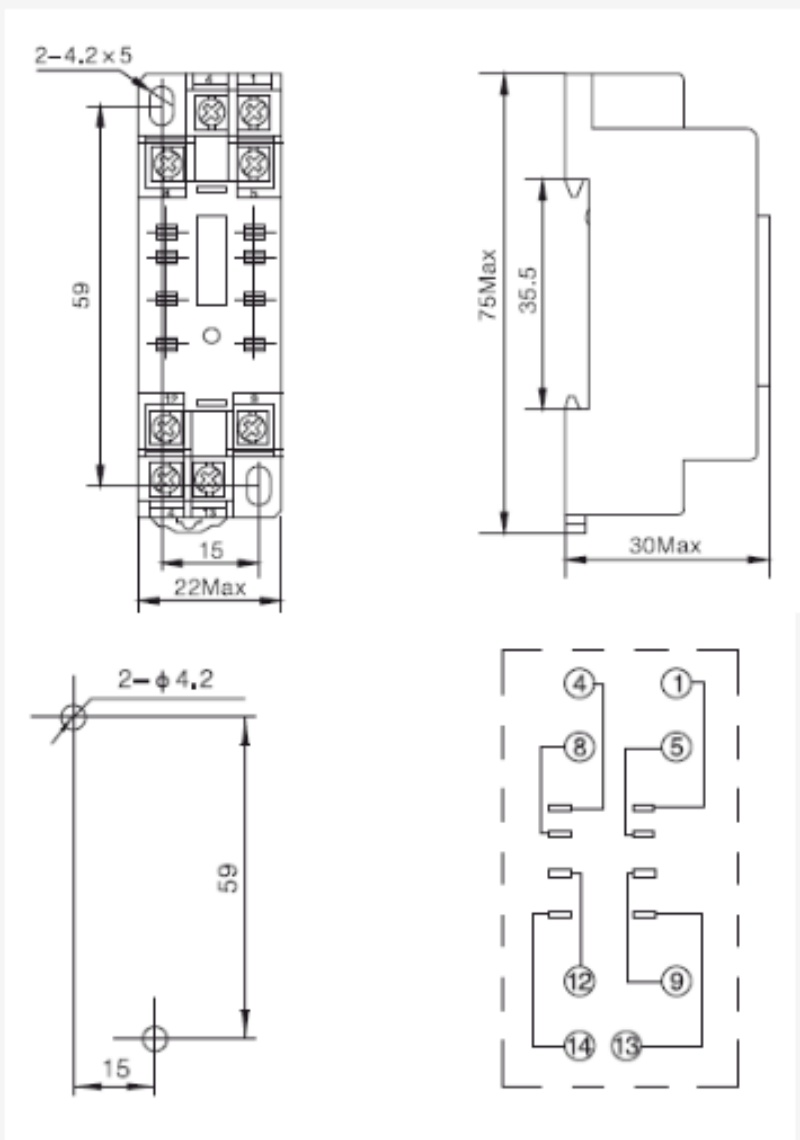

Outside drawing &Mounting dimensions PTF08A Relay Socket
