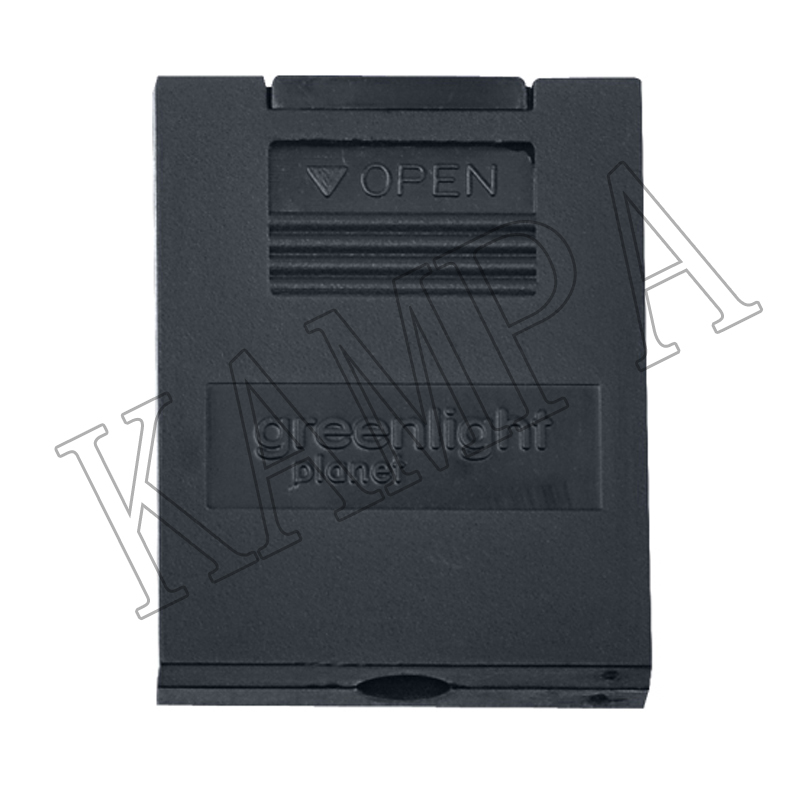

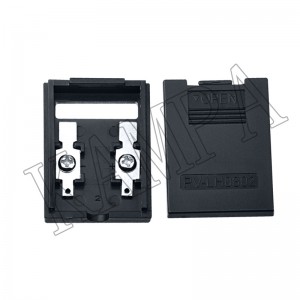

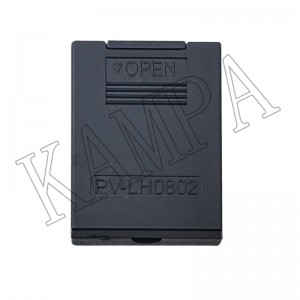

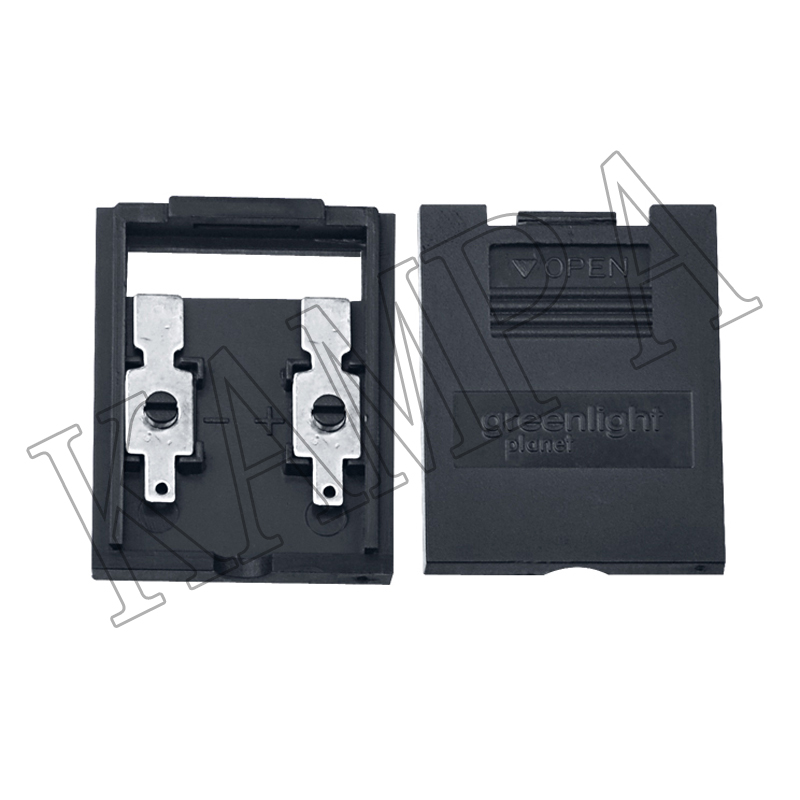

Solar Junction Box

Main speciality

  • with the capacity of age and UV-resistance;the junction box can be used in the atrocious weather.
  • found in outdoor use under harsh environmental conditions required
  • The cable is welded by welding method.
  • Welding connections is used for ribbon band
  • More convenient installation and maintenance

PV-LH0802 PV-LH0802-1 PV-LH0802-2 PV-LH0802-3 802

  • Technical parameters

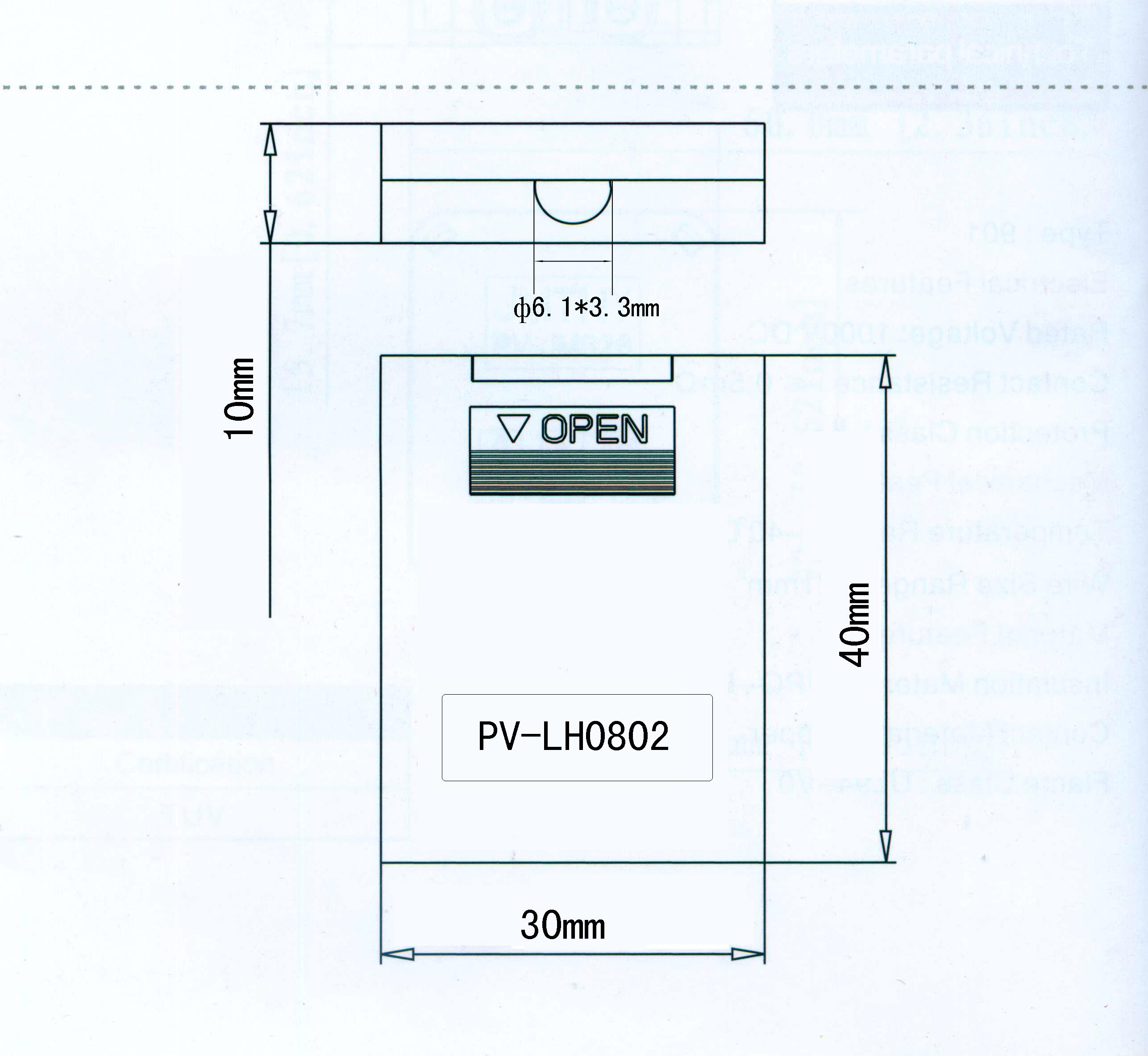

    Dimension:40*30*10mm
    Rated voltage:1000V  DC
    Power:0-10W
    Safe class:Class Ⅱ
    Temperature range:﹣40℃ ~ +85℃
    Section area of Cable:2*0.5/0.75mm2
    Degree of protection:IP64
    Flame class:UL94-V0
    Contact material:Copper or iron Tin Plated
    Insulation material:PPO or ABS
       Type           Rated current
    PV-LH0802 2A
