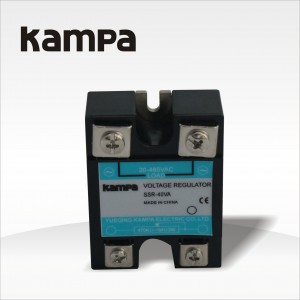

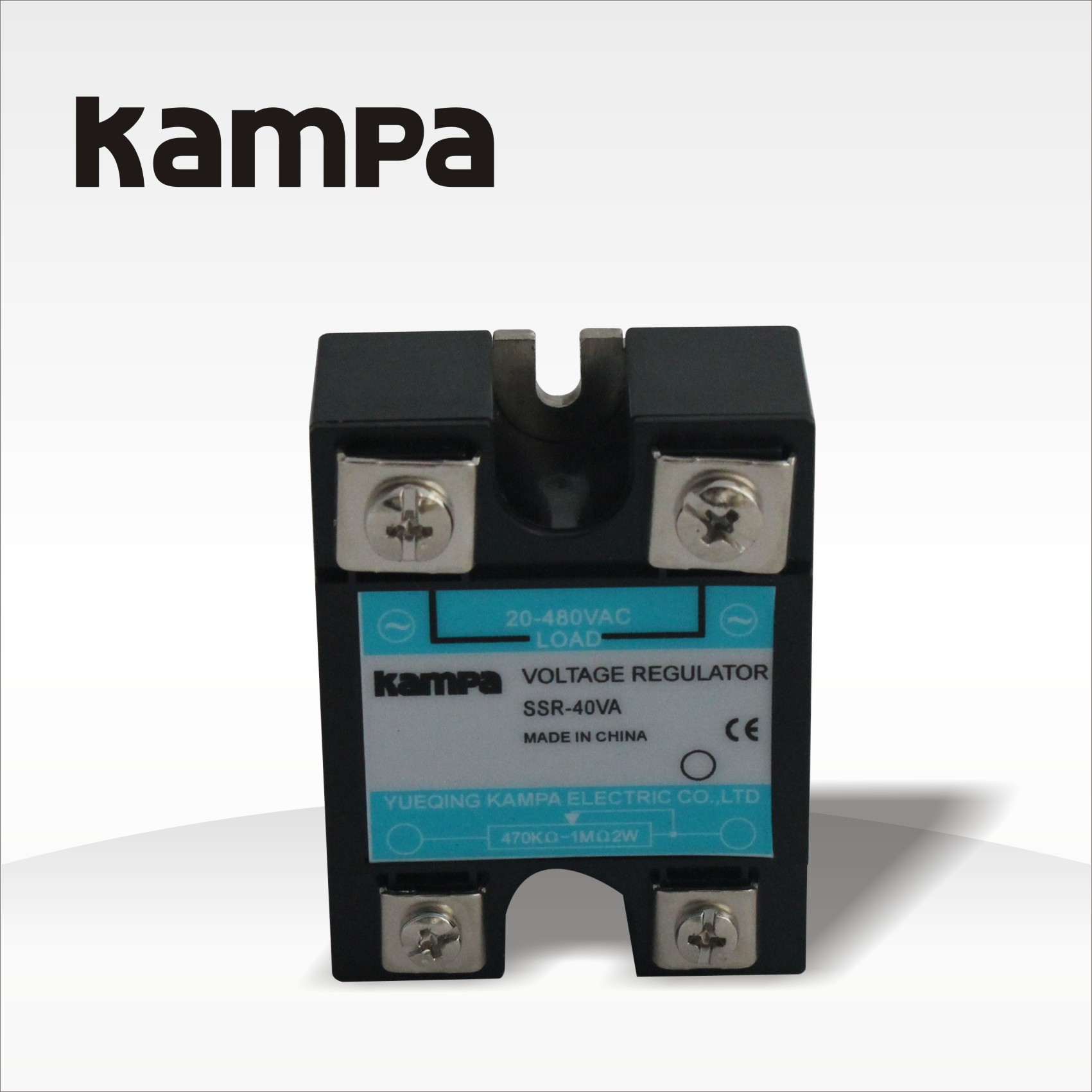

SSR-40VA Solid State Relay

 SSR-40VA Solid State Relay

SSR-40VA Solid State Relay

Technical info.SSR-40VA Solid State Relay

Type SSR-40VA
Dimension(mm) 57.2×43.5×29
Control mode 2W 470-560KΩ potentiometer
Load Voltage 220VAC  380V
Ragulate Range 22:10-250VAC  38:10-440VAC
Isolation voltage No isolated
Off-state leakage current ≤10mA
Load Current 10,15,20,25,30,40A
Instant voltage 22:600VAC  38:900VAC
On-state voltage drop <3VAC
Dielectric strength ≥2500VAC
Insulation resistance 500mΩ(500VDC testing)
Ambient temperature  -30~80°C

Outside drawing &Mounting dimensions   SSR-40VA Solid State Relay

SSR-40VA Solid State Relay
