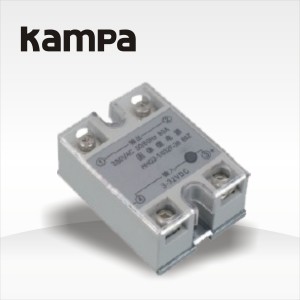

SSR-80DA Solid State Relay

SSR-80DA Solid State Relay

SSR-80DA Solid State Relay

 Technical info.SSR-80DA Solid State Relay

Type SSR-80DA
Dimensions(mm) 63×45×26
Controlling Voltage(input) 032:3-32VDC
Controlling Current 6-35mA
Turn-on Voltage 3VDC
Turn-off Voltage 1VDC
Load Voltage(Output) 22:30-240VAC  38:40-440VAC
Load Current 10,15,20,25,30,40,60,80A
Instant Voltage 22:600VAC  38:900VAC
On-state voltage drop <1.6VAC
On-off time ≤10mS
Off-state leakage current ≤10mA
Dielectric strength ≥2500VAC
Insulation resistance 500mΩ(500VDC testing)
Ambient temperature  -30~80°C

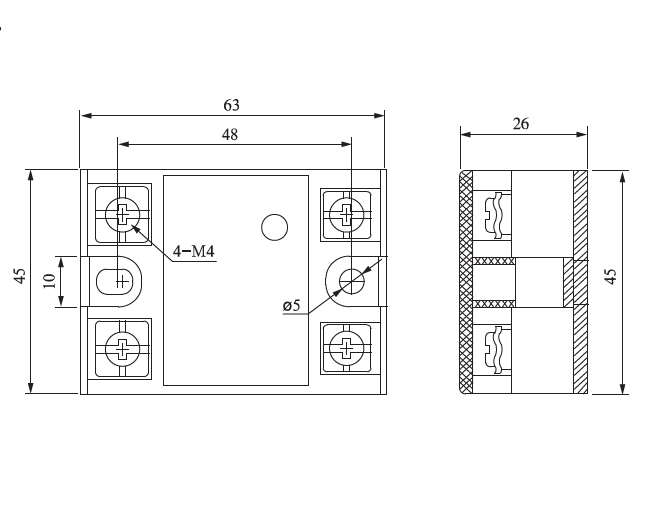

Outside drawing &Mounting dimensions   SSR-80DA Solid State RelaySSR-80DA Solid State RelaySSR-80DA Solid State Relay
