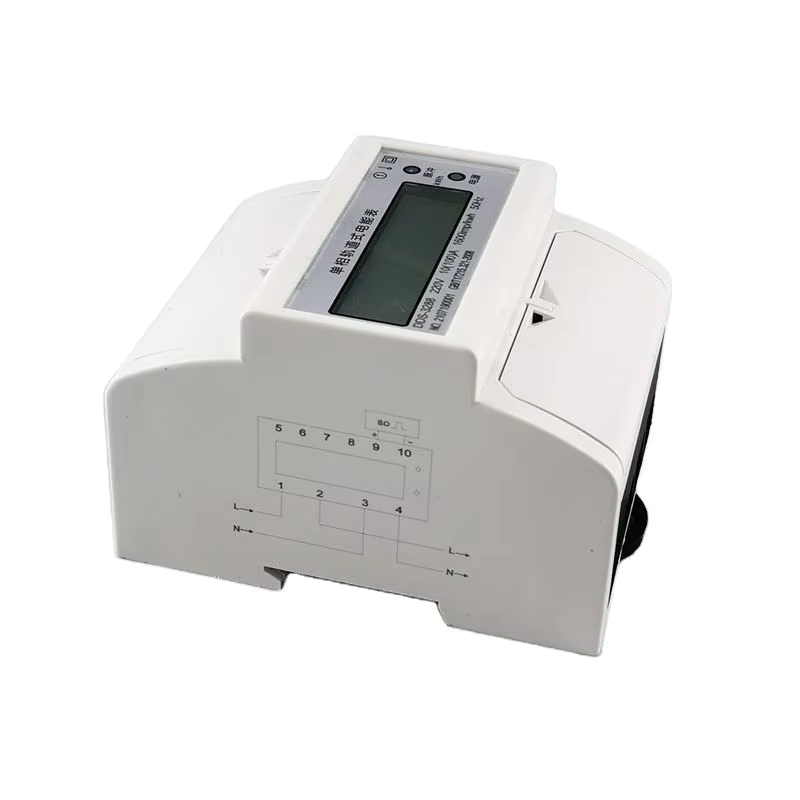

Single Phase DIN Rail KWh Meter 10(100)A

Track Your Power Usage with Precision & Ease

Our DDS-3288 single-phase DIN rail energy meter is a reliable and compact solution for accurate power consumption monitoring. Designed for both residential and light commercial applications, it lets you track real-time energy usage, helping you manage costs and optimize efficiency.

Key Features & Benefits

• High Precision Measurement: Built with a high-precision measuring chip, this meter accurately records active energy consumption with a resolution of 1600imp/kWh, meeting the standard of class 1.0 accuracy.
• Clear LCD Display: The large digital LCD screen shows kWh readings clearly, with low power consumption and a wide viewing angle for easy reading.
• DIN Rail Mount Design: Compact standard DIN rail installation makes it easy to integrate into distribution boxes, control panels, and electrical cabinets, saving space and simplifying wiring.
• Wide Working Range: Rated at 220V, 10(100)A, and 50Hz, it supports a wide range of load currents from light household appliances to high-power equipment.
• Durable & Safe Construction: Made of high-quality flame-retardant plastic housing, the meter offers excellent insulation and impact resistance, ensuring long-term safe use.
• Pulse Indicator: A dedicated pulse LED flashes according to power consumption, providing a visual reference for energy usage.
• GB/T Certified: Manufactured in compliance with GB/T17215.321-2008 standards, guaranteeing reliable performance and quality.

Specifications

Product Details
