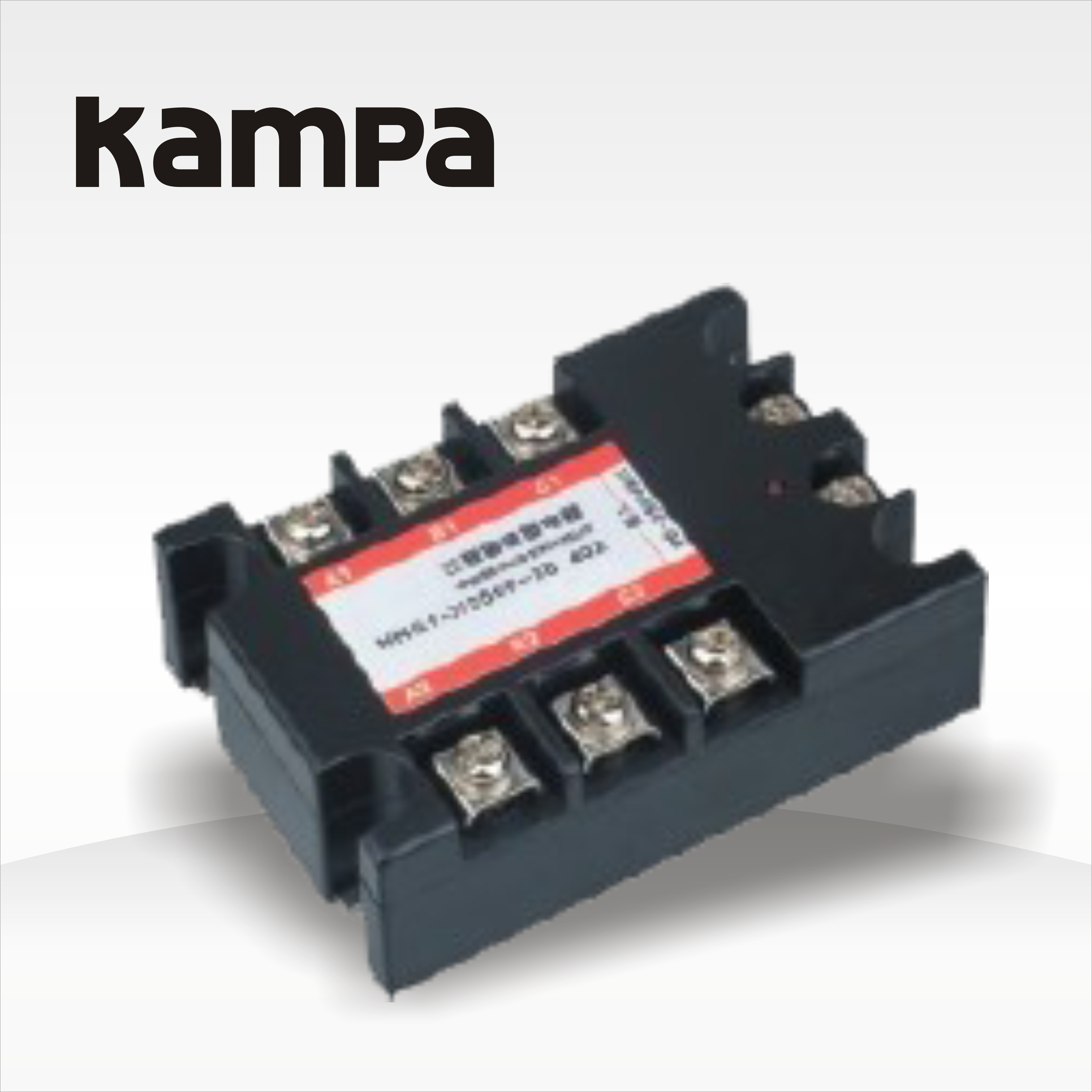

SSR-120AA Solid State Relay
SSR-120AA Solid State Relay
Technical info.SSR-120AA Solid State Relay
| Type | SSR-120AA |
| Dimensions(mm) | 106×75×31.5 |
| Controlling Voltage(input) | 250:90~250VAC |
| Controlling Current | 5-30mA |
| Turn-on Voltage | 90VAC |
| Turn-off Voltage | 10VAC |
| Load Voltage(Output) | 38:40-440VAC |
| Load Current | 10,15,20,25,30,40,60,80,100,120A |
| Instant Voltage | 38:1000VAC |
| On-state voltage drop | <1.6VAC |
| On-off time | ≤10mS |
| Off-state leakage current | ≤10mA |
| Dielectric strength | ≥2500VAC |
| Insulation resistance | 500mΩ(500VDC testing) |
| Ambient temperature | -30~80°C |

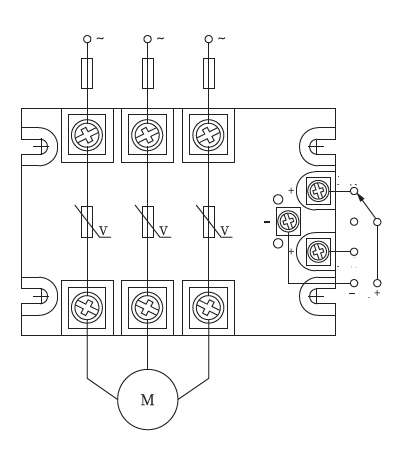

Outside drawing &Mounting dimensions SSR-120AA Solid State Relay
