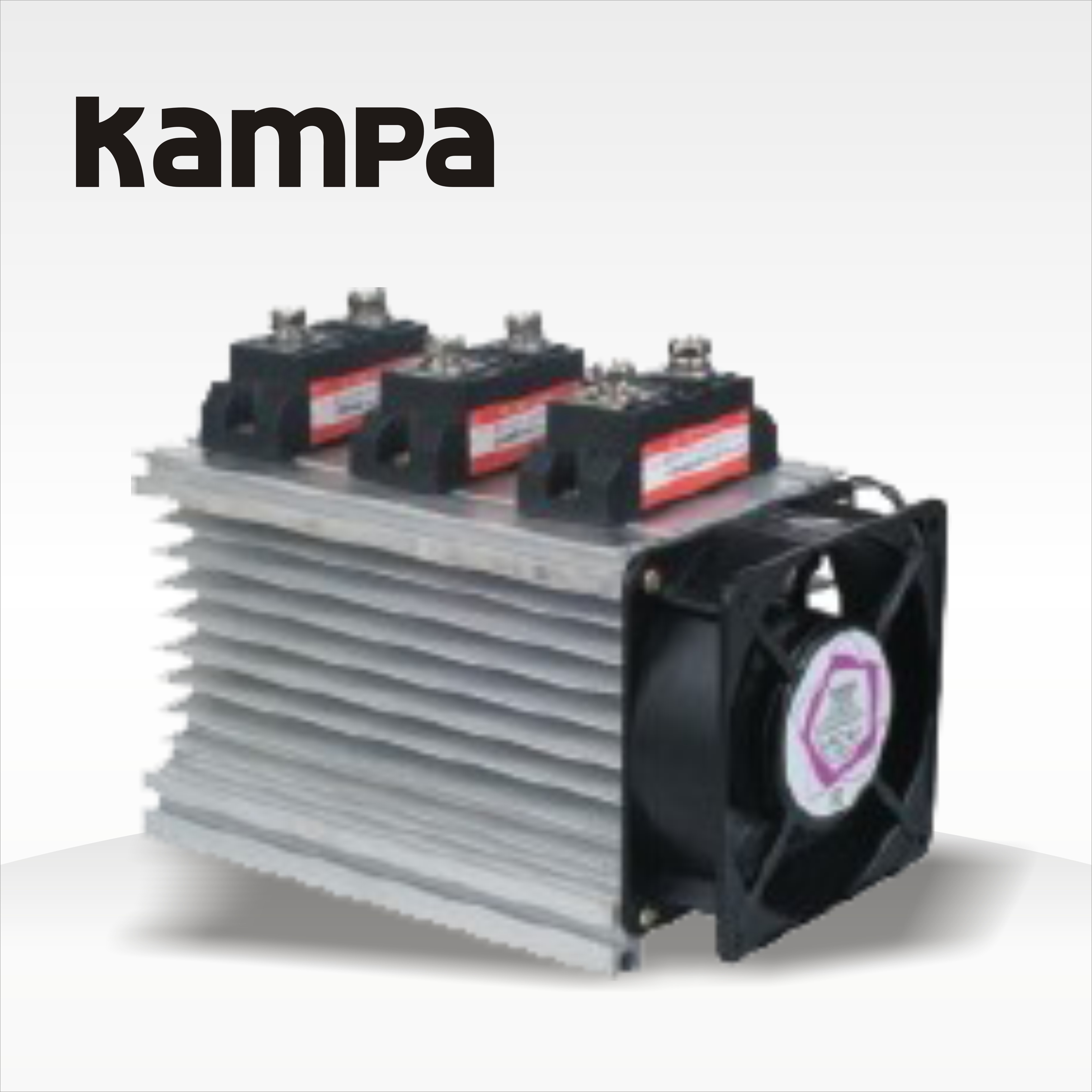

SSR-400DA Solid State Relay

This ready-to-use three-phase solid state relay (SSR) assembly combines three high-performance SSR modules with a heavy-duty aluminum heatsink and cooling fan, delivering reliable, contactless power switching for three-phase industrial systems.

Key Features:

Complete 3-Phase Solution: Pre-assembled with three SSR modules, eliminating the need for separate component sourcing and installation.
Efficient Cooling System: Large aluminum heatsink paired with a high-speed cooling fan ensures optimal heat dissipation, even under continuous high-load operation.
High-Current Capacity: Designed for heavy-duty three-phase loads, ideal for heating, motor control, and power distribution applications.
Contactless Switching: No moving parts or mechanical contacts, eliminating arcing, noise, and wear for long service life.
Easy Installation: Pre-wired and ready for direct integration into three-phase control circuits, reducing setup time and complexity.
Industrial-Grade Reliability: Built to withstand the demands of continuous-duty industrial environments, with stable performance and minimal maintenance.

Applications:

Three-phase industrial heating systems
Motor control and soft-start applications
Power distribution and process automation
HVAC and industrial equipment control

Technical info. SSR-400DA Solid State Relay

Type	SSR-400DA
Dimensions(mm)	238×125×177
Controlling Voltage(input)	032:3-32VDC
Controlling Current	5-28mA
Turn-on Voltage	3VDC
Turn-off Voltage	1VDC
Load Voltage(Output)	38:40-440VAC 120:60-1200VAC
Load Current	60,80,100,150,200,250,300,350,400A
Instant Voltage	38:1000VAC 120:1600VAC
On-state voltage drop	<1.6VAC
On-off time	≤10mS
Off-state leakage current	≤10mA
Dielectric strength	≥2500VAC
Insulation resistance	500mΩ(500VDC testing)
Ambient temperature	-30~80°C

SSR-400DA Solid State Relay

SSR-400DA Solid State Relay

Technical info. SSR-400DA Solid State Relay

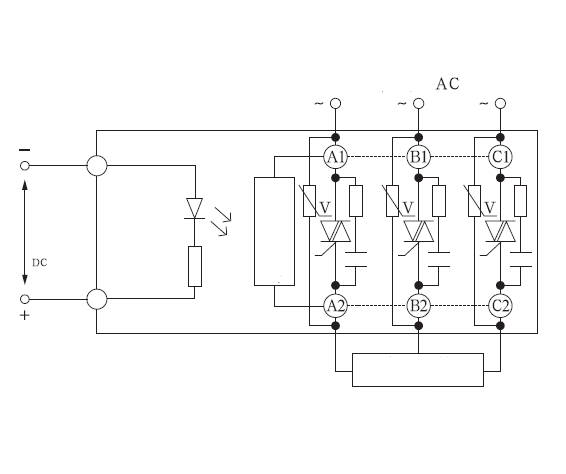

Outline drawing&wiring diagram SSR-400DA Solid State Relay
