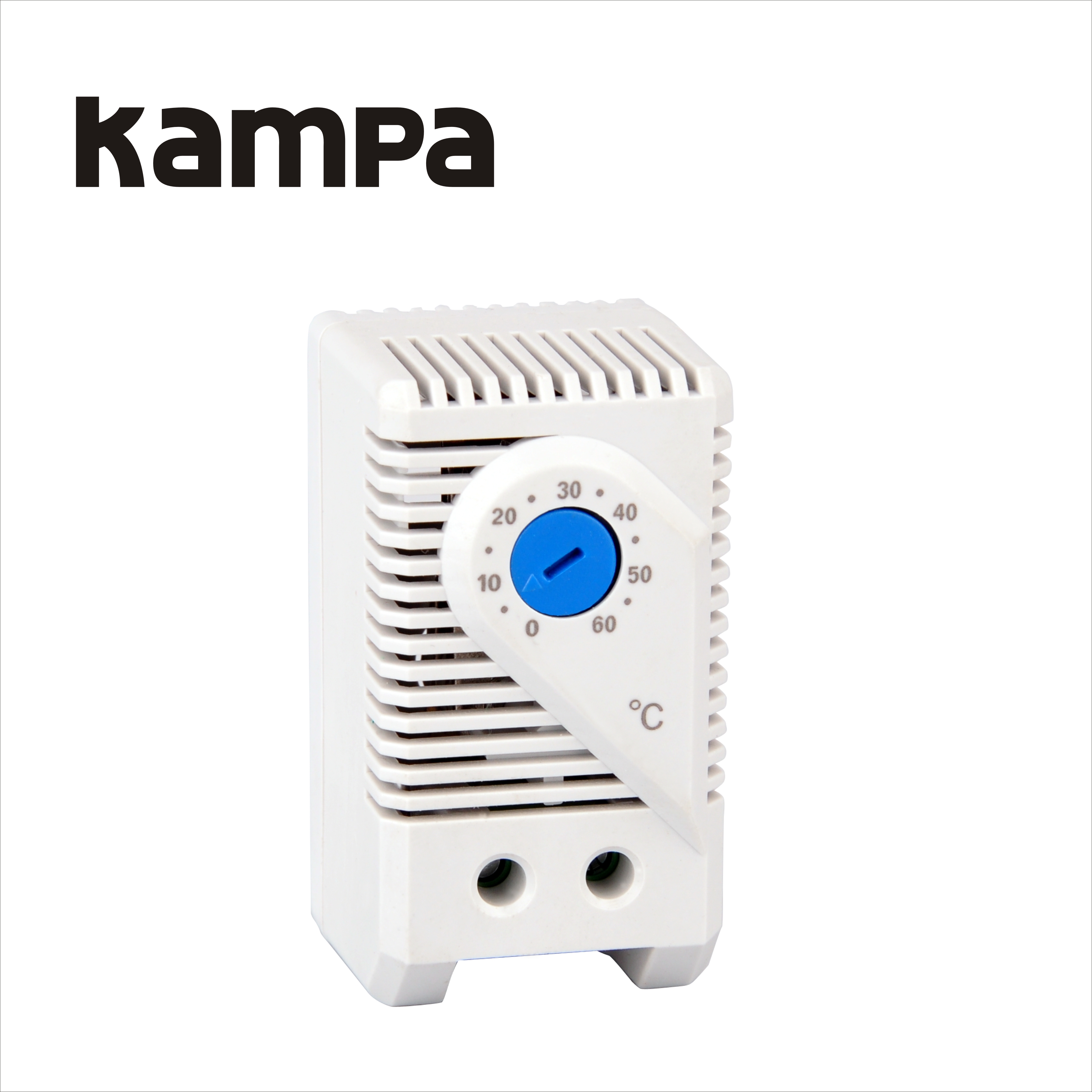

thermostat KTS011 for heating and cooling

Specification

The KTS011 thermostat is used for 2-position control with on/off output for the control the

temperature by means of an NTC sensor placed externally or internally in the thermostat.The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.

Applications

Electrical cabinets, distribution boxes and control panels
Server racks, telecom and network enclosures
Industrial automation control boxes
HVAC and ventilation cooling systems
Overheating protection for sensitive electronics
Outdoor electrical equipment housings with cooling fans

Technical Date

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	`< 10mO`
Service life	100 000 cycles
Max. switching capacity	250VAC, 10 (2) A ,120VAC, 15 (2) A DC 30W
EMC	acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3

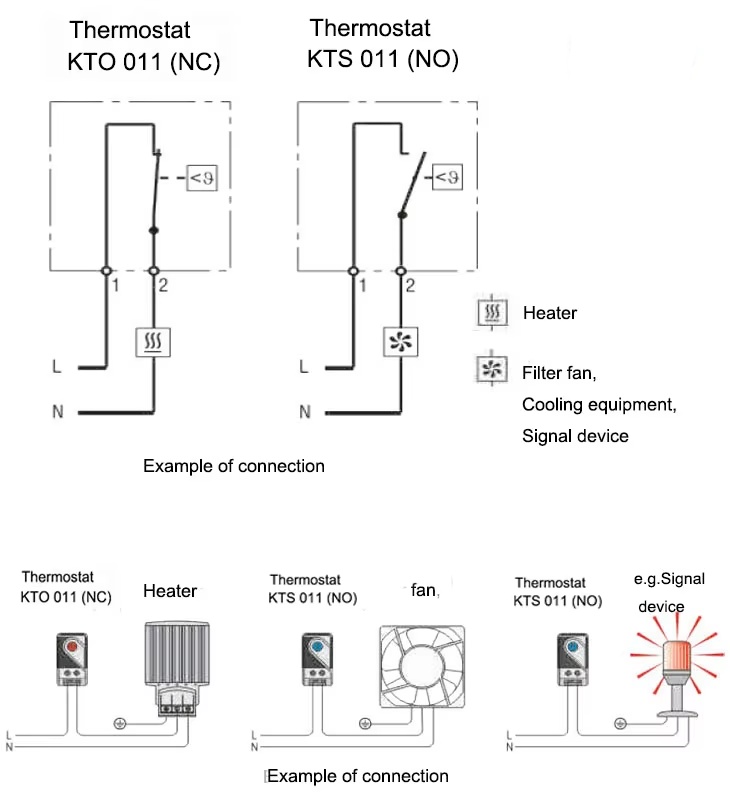

Connection	`2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²`
Casing	plastic according to UL94-HB, black
Dimensions	60 x 33 x 43mm
Weight	approx. 40g
Fitting position	variable
Operarting/Storage temperature	-45 to +80°C (-49 to +176°F)
Protection type	`IP20`
