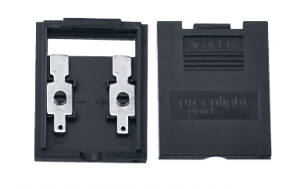

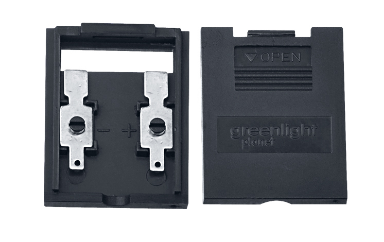

0-10W Solar Junction Box waterproof IP65

Solar Panel connect PV junction box solarcable connection with diode
Main speciality：
- with the capacity of age and UV-resistance;the junction box can be used in the atrocious weather.
- found in outdoor use under harsh environmental conditions required
- The cable is welded by welding method.
- Welding connections is used for ribbon band
- More convenient installation and maintenance

Dimension：38308.3mm
Rated voltage：1000V DC
Power：0-10W
Safe class：Class Ⅱ
Temperature range：﹣40℃ ～ +85℃
Section area of Cable：2*0.5mm2
Degree of protection：IP64
Flame class：UL94-V0
Contact material:Copper or iron Tin Plated
Insulation material:PPO or ABS
Type	Rated current
PV-LH0802	2A
