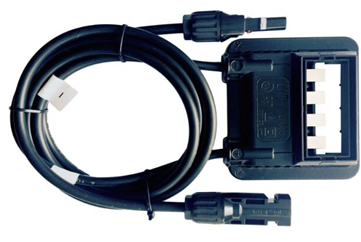

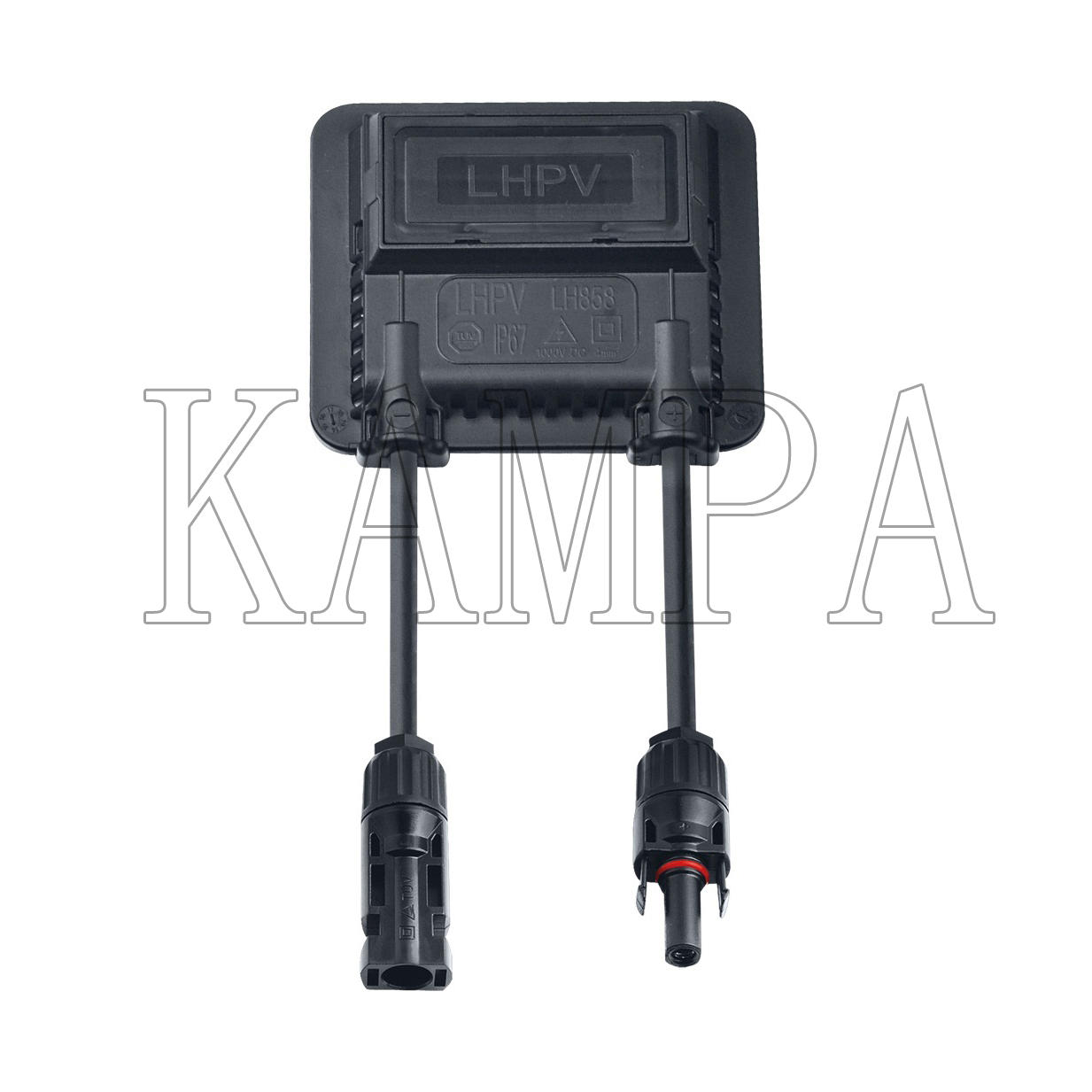

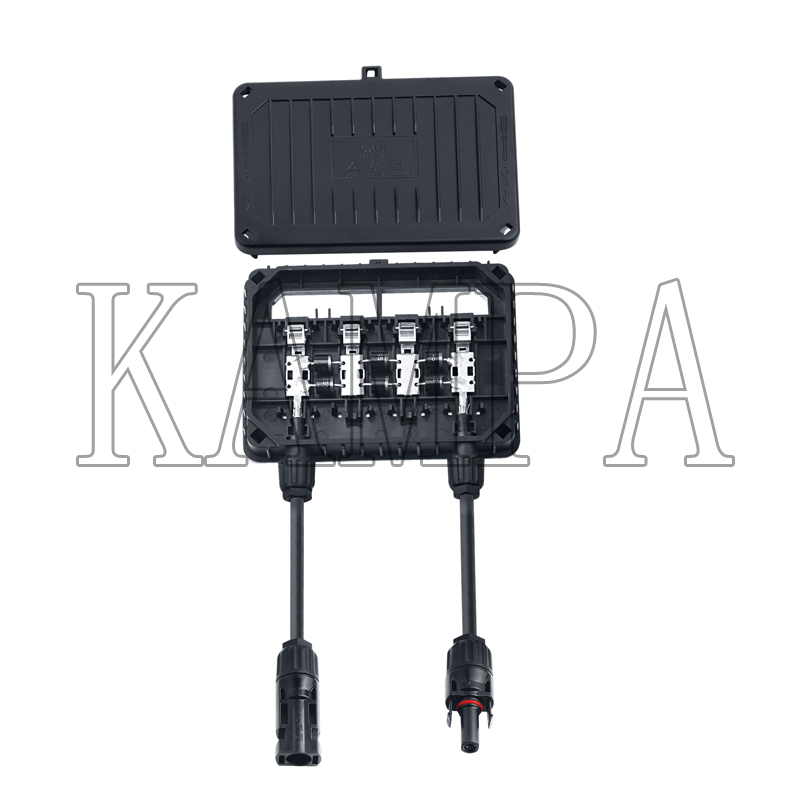

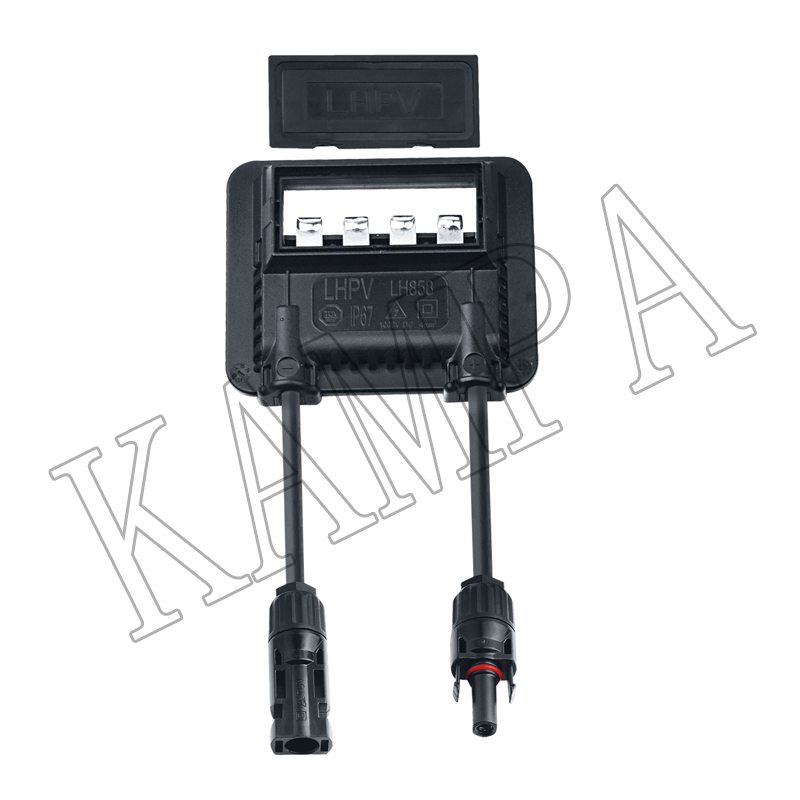

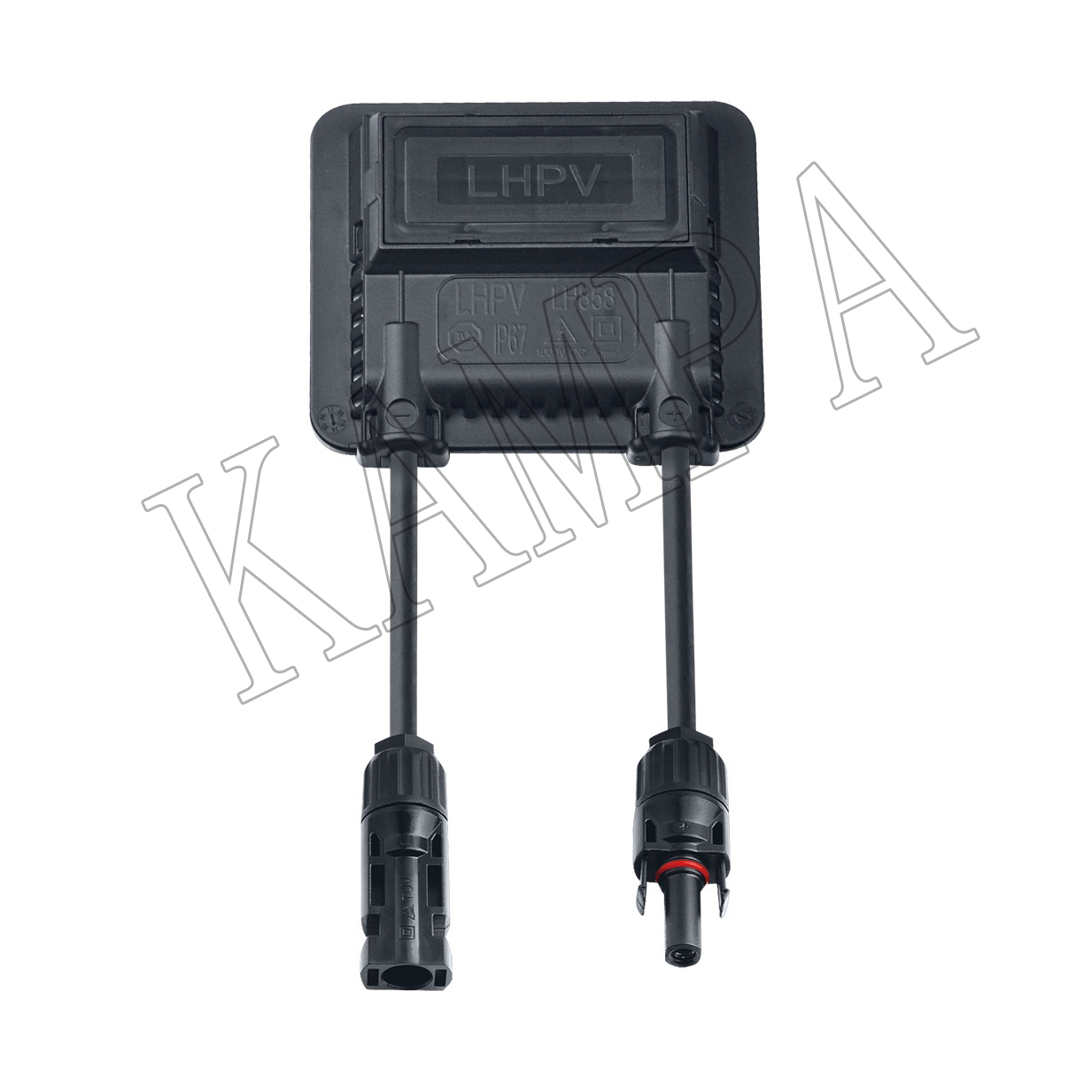

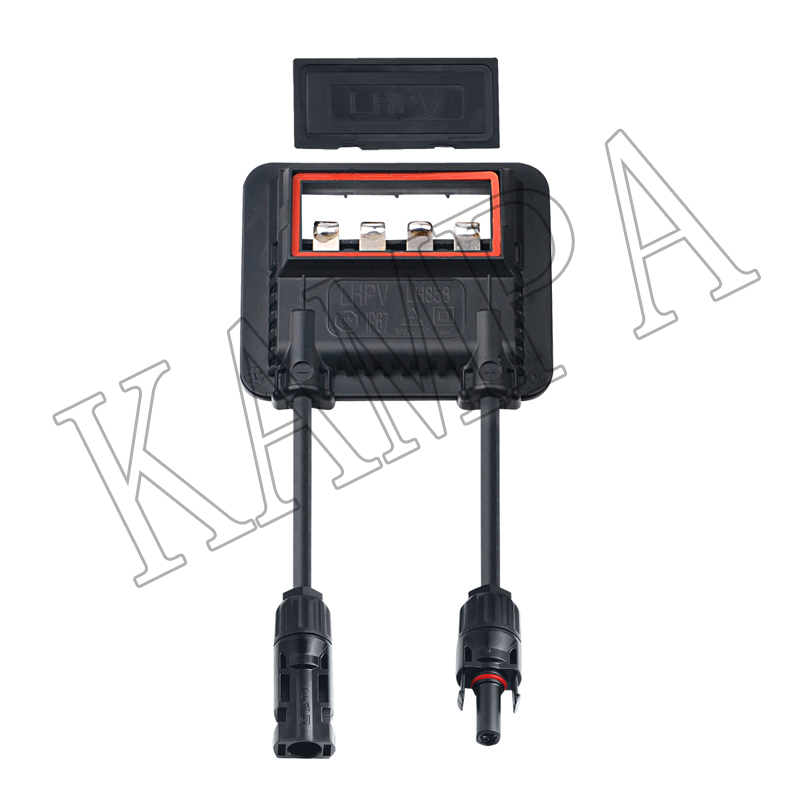

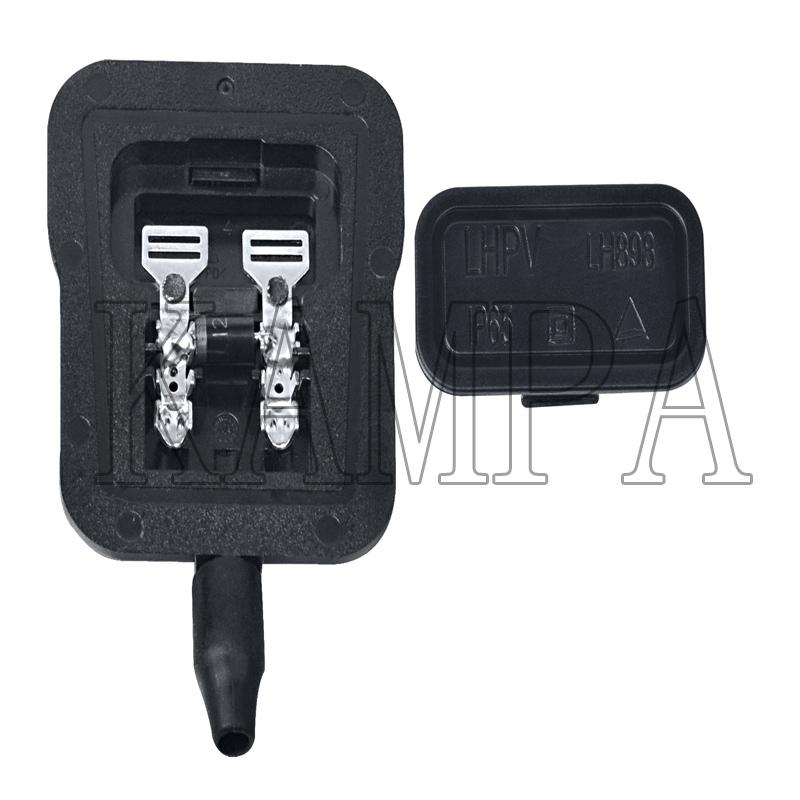

PV-LH858 solar Junction box

solar junction box

2,Size of product graphs:

3.Main characteristics:

1.The junction bos users the glue to seal.the waterproof effect is better,the fitting interior heat is better,

2.The cable connection mode can be welded or pressed,welding connections is used for ribbon band.

3.The cable connection mode can be welsed or pressed,welding connections is used for ribbon band,

4.The rated current will be changed when the box is fixed with different type of diode,

5.Stand:EN50548/A1:2013

Main technical paramenters.

Type：PV-LH858
Dimension：93.677.518.1mm
Rated voltage：1000V DC
Type of diode：20SQ045
Rated current：13A
Power：200-320W
Safe class：Class Ⅱ
Temperature range：﹣40℃ ～ +85℃
Section area of Cable：1*4mm²
Contact resistance:≤3mΩ
Degree of protection：IP67
Flame class：UL94-V0 （Termination and connection） 1、The cable and the inner terminal are connected by a pressing connection mode. 2、The diode and copper welding connection 3、Welding connections is used for ribbon band.
Certification：TUV Certificate NO：B 14 07 87944 003
Diode model	Rated current	Rated voltage	Didoe Number	Connection mode
20SQ045	13A	45V	3
