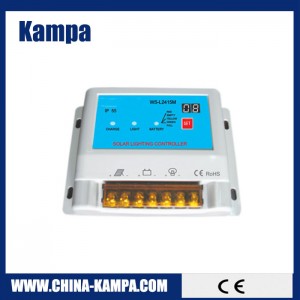

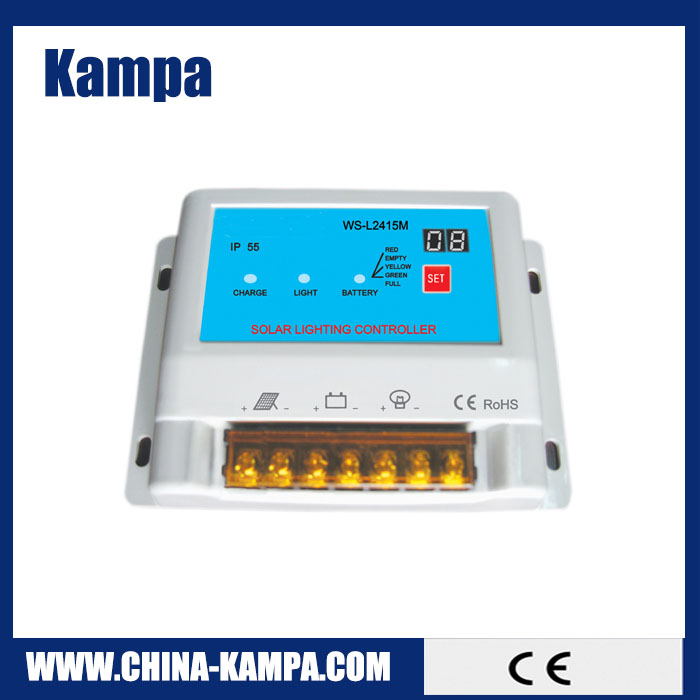

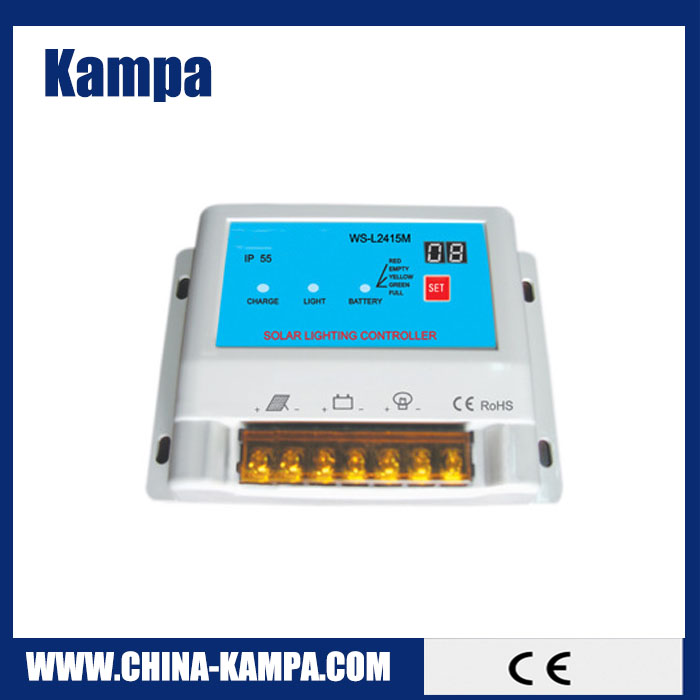

solar charge controller KPL24 series

          China pwm solar panel charge controller KPL24 series

 solar charge controller

solar charge controller

 solar charge controller

solar charge controller

 Functions of pwm solar charge controller:

  1.  It can prevent the battery from over-charging and over-discharging, reverse charging (the battery charges the solar panel) and reverse connection of the battery and solar panel.
  2. It will start up the lighting system in the evening automatically according to the intensity of the light.
  3.  It will shut down the lighting system according to the time setting or shut down the lighting system automatically when it is dawn.
  4. It has waterproof protection, which can protect the solar lamp controllers from rain, water and wet.
  5. It has single or dual output for customer’s choice
  6. It has a LED indicator of the working condition of charging and discharging:
  7. one piece of Charge Indicator LED (mark: Charge). When it is bright, the battery is charged strongly; flickeringly means floating charge, no light means stop charging.
  8. One piece of Load Indicator LED (mark: Light). When it is bright, there is output and load can work; if LED goes out,  there is no output and the load cannot work.
  9. Battery indicator:  red= under voltage   Green =full    Yellow =normal

The Parameter Sheet of solar charge controller:

Model

KP-L2415M 6A

KP-L2415M 10A

KP-L2415M 15A

System voltage

12V/24V Automatic distinguish voltage

Max charge current

6A

10A

15A

Max discharge current

6A

10A

15A

Charge off voltage(HVD)

14.4V/28.8V

Low Voltage Directive(LVD)

10.8V/21.6V

Low Voltage Restore(LVR)

11.8V/23.6V

Light  operate

light control turn on + light control turn off

Light time control

Light control turn on/off + time control turn on/off

Time control classification

0.5 hours started,half an hour of one grade ,up to 10 hours

Out put route

single or dual output optional

Ambient temperature

-25°C—–+55°C

Safe degree

IP55

Quiescent dissipation

24mA

Max loop voltage drop

350 mV

We are special large scale R&D and manufactory enterprise of solar charge and discharge controller and global supplier of Wellsee solar controller and photovoltaic system equipment. We also have passed ISO9001, CE and RoHS certifications. Wuhan Wellsee products can be designed and produced according to clients’ special request. Welcome agents from every area!

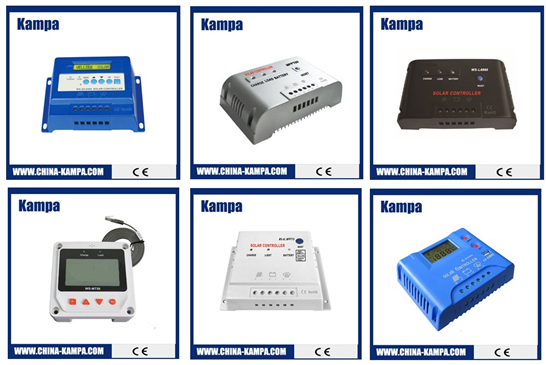

More product
