JQX-38F 40a super electromagnetic power relay ac 220 /240

40a super electromagnetic power relay ac 220 /240

JQX-38F Power Relay

JQX-38F Power Relay

JQX-38F Power Relay

JQX-38F Power Relay

JQX-38F Power Relay

JQX-38F Power Relay

 Technical info . of JQX-38F Power Relay

Type JQX-38F
Contact type 2Z,2H,2D  3Z,3H,3D
Contact overload 40A
Rated coil power DC2.0W  AC5.0VA
Coil specification DC6V~220V  AC6V~380V
Outline dimensions 55.5×30×37.5mm
Carton size 440×310×345
Carton number 380
Net weight 15kg
Gross weight 16kg

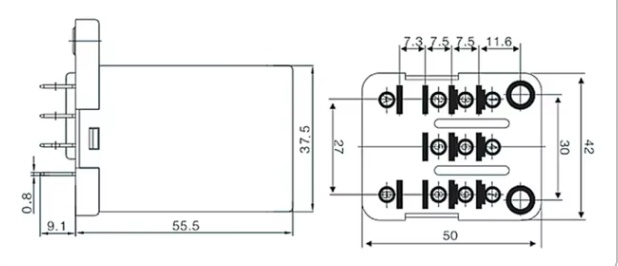

Dimensions&Performance Curve of JQX-38F Power Relay

JQX-38F Power RelayJQX-38F Power Relay
