JQX-78F Power Relay

JQX-78F Power Relay

JQX-78F Power Relay

 Technical info.  JQX-78F Power Relay

Type JQX-78F
Contact type 2Z,2H,2D,3Z,3H,3D
Contact overload 60A
Rated coil power DC4.5W   AC 10.5VA
Coil specification DC6V~220V   AC6V~380V
Outline dimensions 81×53.5×67.5mm
Carton size 440×310×345
Carton number 380
Net weight 15kg
Gross weight 16kg

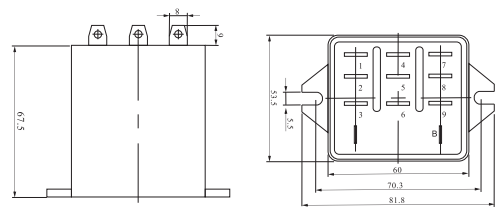

Dimension&Performance Curve    JQX-78F Power Relay

JQX-78F Power Relay
