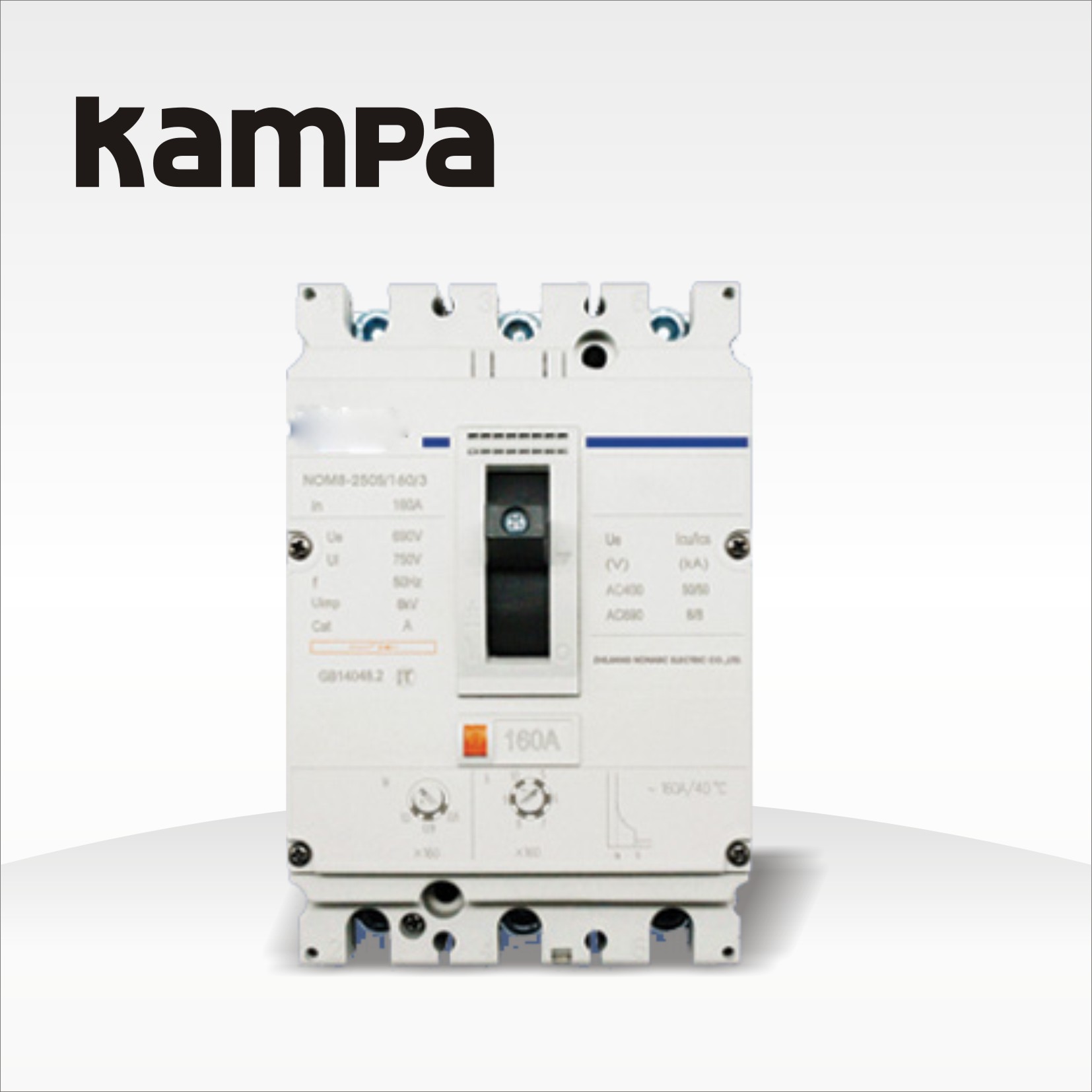

NOM8(NF) Series Molded Case Circuit Breaker

Application of NOM8(NF) Series Molded Case Circuit Breaker

NOM8(NF) Series Molded Case Circuit Breaker

NOM8(NS) series plastic outer covering type circuit breaker is this company uses one of international vanguard technology development new circuit breakers.its fixed insulation voltage is 950V, is suitable in exchanges 50Hz or 60Hz, fixed working voltage 690V and below, fixed operating current 12.5A to in the 630A electric current,uses for to assign the electrical energy, in normal condition mean infrequent closed and using of the separation,and overloads, owes the voltage the protective function when the line and the equipment. Fixed shell rank electric current in 400A and following circuit breaker. also may do is the cage electric motor, the short circuit and owes when the voltage protective function. The product conforms to IEC60947-2 standard.

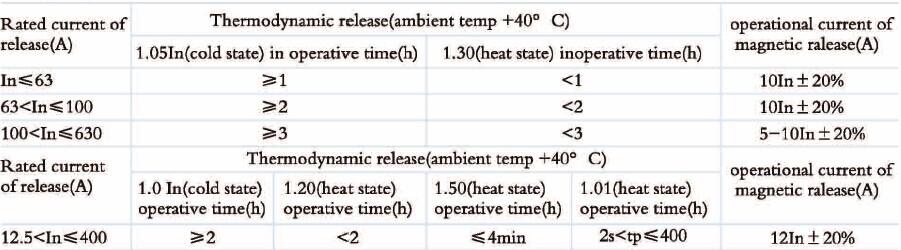

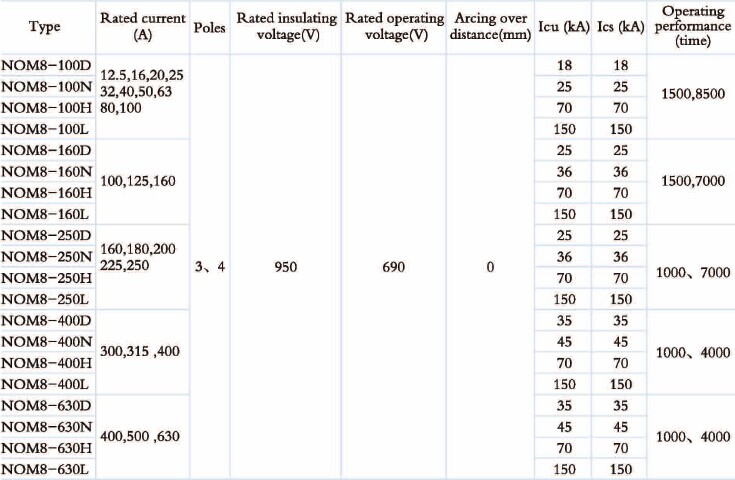

Tripping Characteistics of NOM8(NF) Series Molded Case Circuit BreakerTechnical Parameters of NOM8(NF) Series Molded Case Circuit Breaker  Mounting Diagram and Sizes of NOM8(NF) Series Molded Case Circuit Breaker
