Photoelectric sensor G30 series

Photoelectric sensor G30

Specification of Photoelectric sensor G30

Model				G30

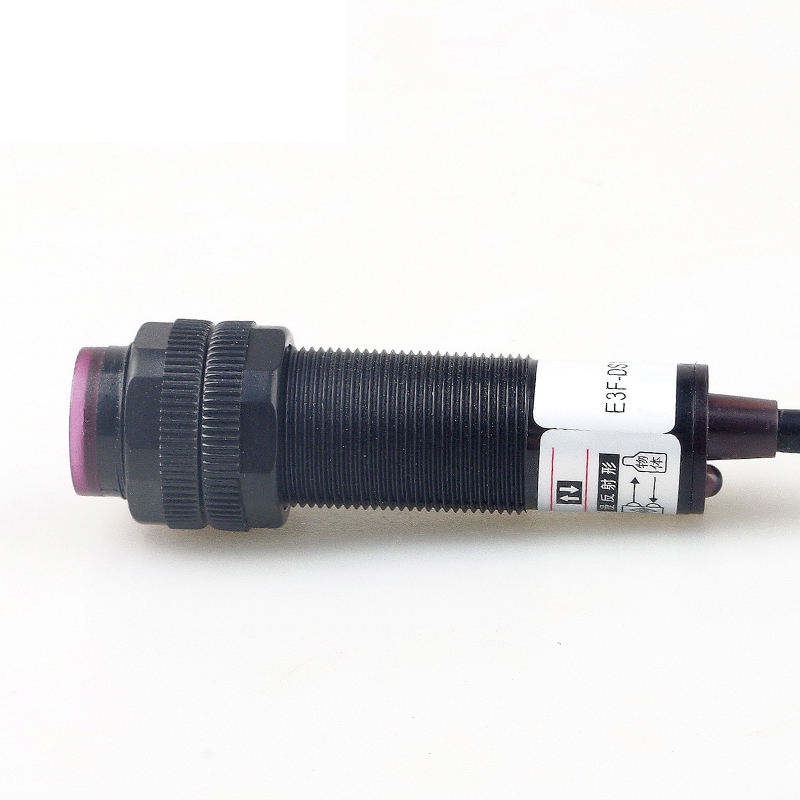

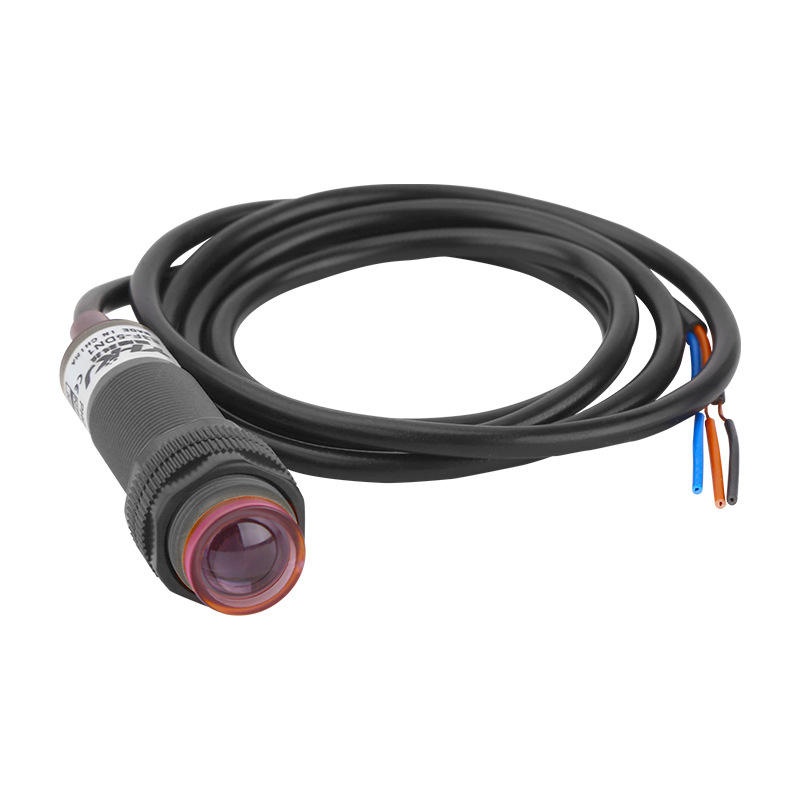

Outward appearance illustration

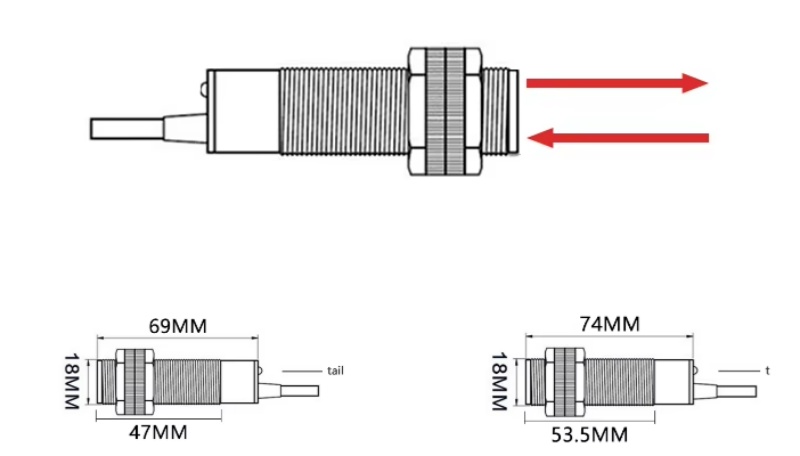

Overall dimension
Diffuse	Detection distance			20-100cm
	DC10-30V	NPN	NO	G30-3A70NA
			NC	G30-3A70NB
			NO+NC	G30-3A70NC
		PNP	NO	G30-3A70PA
			NC	G30-3A70PB
			NO+NC	G30-3A70PC
	AC90-250V	SCR Controllable silicon	NO	G30-2A70LA
			NC	G30-2A70LB
		Relay output		G30-2A70JC
Retroreflictive	Detection distance			3-5cm
	DC10-30V	NPN	NO	G30-3B3NA
			NC	G30-3B3NB
			NO+NC	G30-3B3NC
		PNP	NO	G30-3B3PA
			NC	G30-3B3PB
			NO+NC	G30-3B3PC
	AC90-250V	SCR Controllable silicon	NO	G30-2B3LA
			NC	G30-2B3LB
		Relay output		G30-2B3JC
Trough beam	Detection distance			10m
	DC10-30V	NPN	NO	G30-3C101NA
			NC	G30-3C101NB
			NO+NC	G30-3C101NC
		PNP	NO	G30-3C101PA
			NC	G30-3C101PB
			NO+NC	G30-3C101PC
	AC90-250V	SCR Controllable silicon	NO	G30-2C101LA
			NC	G30-2C101LB
		Relay output		G30-2C101JC
Control output				DC:200mA
Consumption current				DC<15mA
Response time				DC<2ms
Direction angle				3C to 10C
Detected object				Transparent of opaque body
Working environment temperature				below 25C to 55C
INtensity of illumination of working environment				Incandescent lamp under 3000LX
Shell material				Metal
Protection grade				IP54
