Reflective photoelectric switch G18 series

Reflective photoelectric switch G18 series

Reflective photoelectric switch G18 series















Specification of Reflective photoelectric switch

Model G18

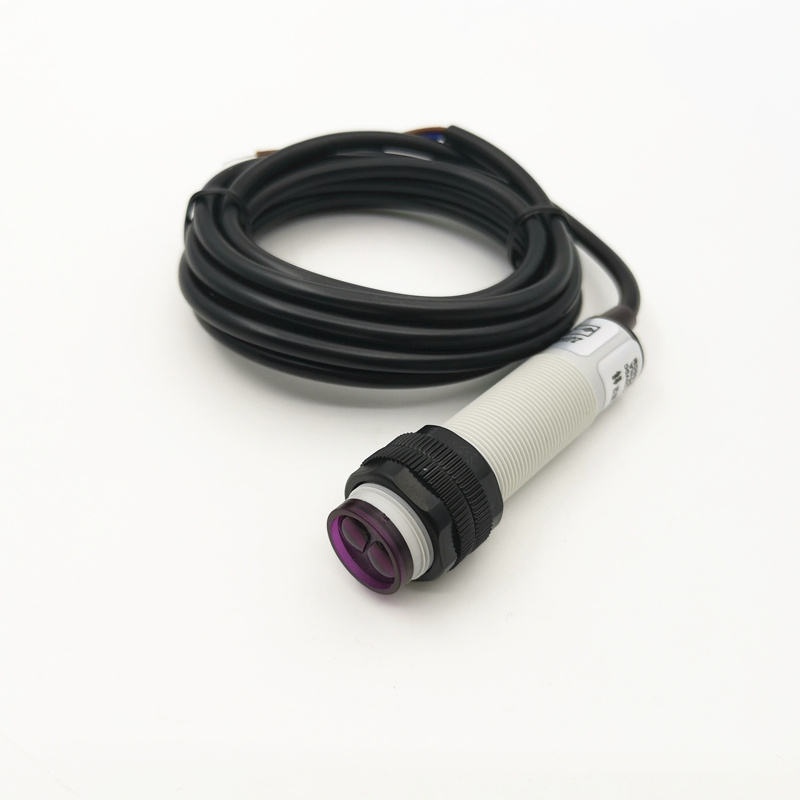

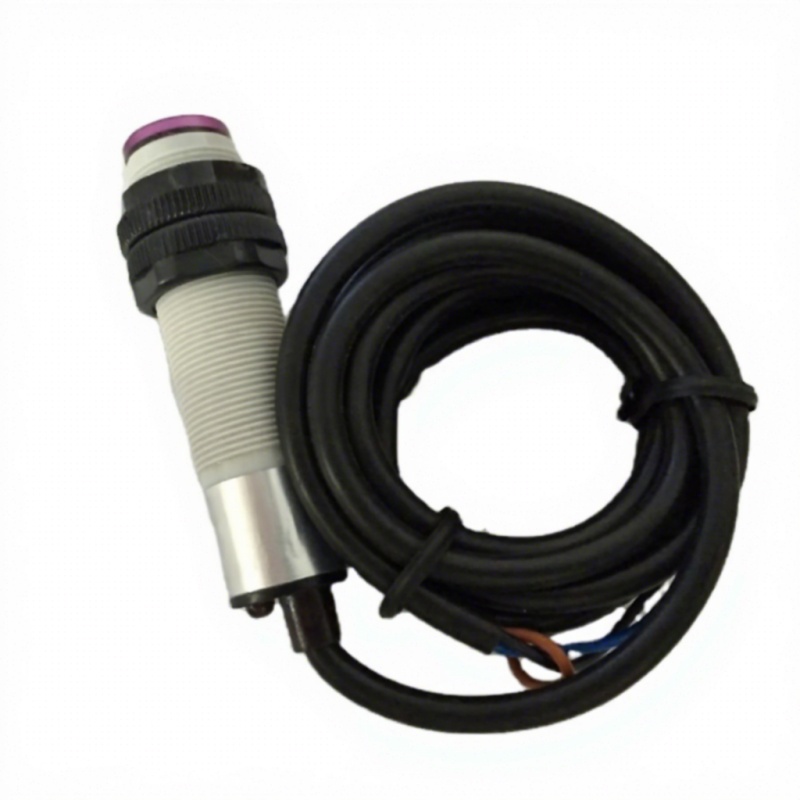

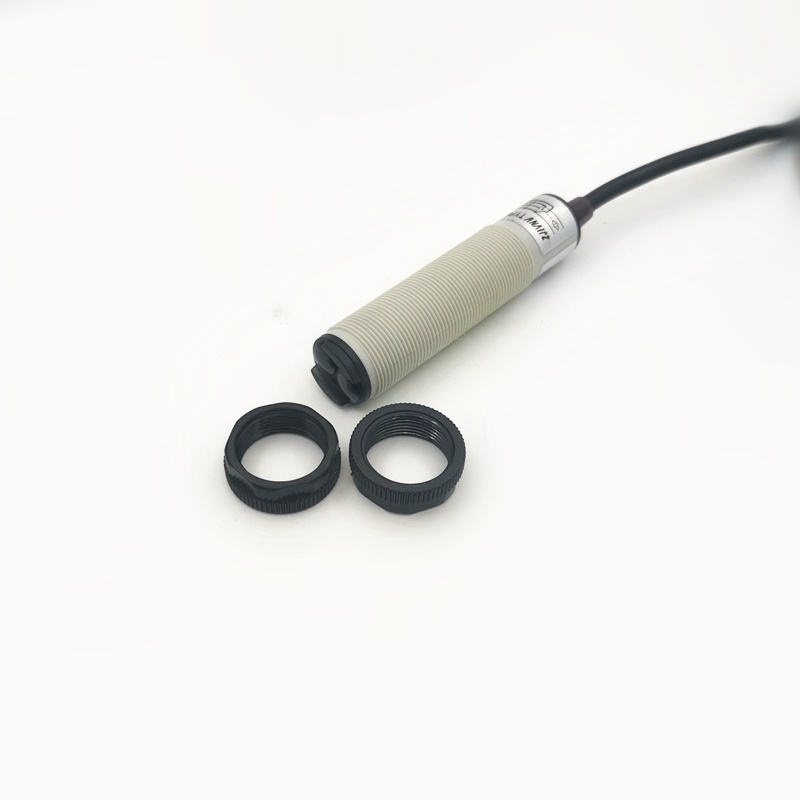

Outward appearance illustration
Overall dimension
Diffuse Detection distance 10cm
DC10-30V NPN NO G18-3A10NA
NC G18-3A10NB
NO+NC G18-3A10NC
PNP NO G18-3A10PA
NC G18-3A10PB
NO+NC G18-3A10PC
AC90-250V SCR Controllable silicon NO
NC
Relay output
Retroreflictive Detection distance 2m
DC10-30V NPN NO G18-3B2NA
NC G18-3B2NB
NO+NC G18-3B2NC
PNP NO G18-3B2PA
NC G18-3B2PB
NO+NC G18-3B2PC
AC90-250V SCR Controllable silicon NO
NC
Relay output
Trough beam Detection distance 5m
DC10-30V NPN NO G18-3C5NA
NC G18-3C5NB
NO+NC G18-3C5NC
PNP NO G18-3C5PA
NC G18-3C5PB
NO+NC G18-3C5PC
AC90-250V SCR Controllable silicon NO
NC
Relay output
Control output DC:200mA
Consumption current DC<15mA
Response time DC<2ms
Direction angle 3C to 10C
Detected object Transparent of opaque body
Working environment temperature below 25C to 55C
INtensity of illumination of working environment Incandescent lamp under 3000LX
Shell material Metal
Protection grade IP54

Order marks for Reflective photoelectric switch:

  1. Working Voltage
  2. Diffuse type, Reflectirve type, through beam type
  3. Detection space
  4. Diameter
  5. tell me exact model no. better
