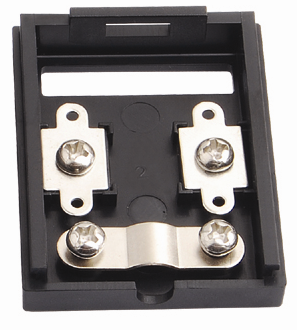

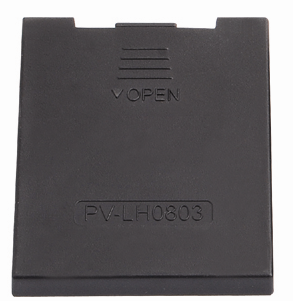

Solar Junction Box

Main speciality：

with the capacity of age and UV-resistance;the junction box can be used in the atrocious weather.
found in outdoor use under harsh environmental conditions required
The cable is welded by welding method.
Welding connections is used for ribbon band
More convenient installation and maintenance

Technical parameters

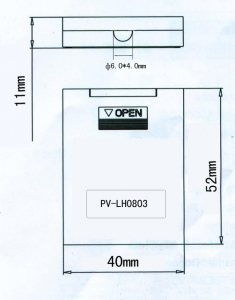

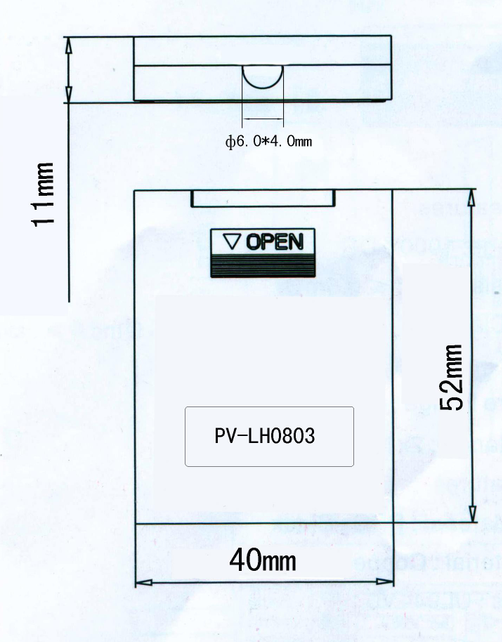

Dimension：524011mm
Rated voltage：1000V DC
Power：10-30W
Safe class：Class Ⅱ
Temperature range：﹣40℃ ～ +85℃
Section area of Cable：2*0.5/0.75mm2
Degree of protection：IP64
Flame class：UL94-V0
Contact material:Copper or iron Tin Plated
Insulation material:PPO or ABS
Type	Rated current
PV-LH0803	3A
