SSR-40DD Solid State Relay
SSR-40DD Solid State Relay

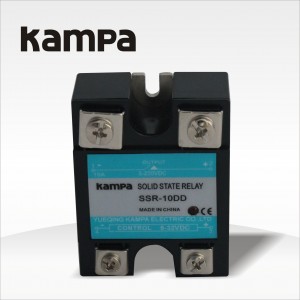

Kampa SSR-10DD is single-phase DC-DC solid state relay, adopting semiconductor non-contact switch technology, replace traditional electromagnetic relay, no spark, no mechanical wear, ideal for frequent on-off automatic control occasions.
Features
Non-contact Switching: No mechanical contact arc, silent operation, avoid contact ablation failure
Fast Response Speed: Ultra-short switching time, perfect for high-frequency repeated switching control
Strong Anti-interference: Built-in absorption circuit, stable performance against surge voltage
Compact Heat Sink Base: Standard aluminum mounting base, easy to install matched heat sink for heat dissipation
Wide Control Voltage: Universal control input:3~32VDC, compatible with PLC, temperature controller output
Technical Parameter
- Model:SSR-10DD
- Control Side(Input): DC 3~32V
- Load Side(Output): DC5~220V, Rated Current:10A
- Type: DC to DC Single Phase SSR
- Working Temperature:-30℃~+75℃
- Certification:CE
Technical info. SSR-40DD Solid State Relay
| Type | SSR-40DD |
| Dimensions(mm) | 57.2×43.5×29 |
| Controlling Voltage(input) | 032:3-32VDC |
| Controlling Current | 6-45mA |
| Turn-on Voltage | 3VDC |
| Turn-off Voltage | 1VDC |
| Load Voltage(Output) | 20:12-250VDC |
| Load Current | 10,15,20,25,30,40A |
| Instant Voltage | 20:400VDC |
| On-state voltage drop | <1.2VAC |
| On-off time | ≤5mS |
| Off-state leakage current | ≤5mA |
| Dielectric strength | ≥2500VAC |
| Insulation resistance | 500mΩ(500VDC testing) |
| Ambient temperature | -30~80°C |
Outside drawing &Mounting dimensions SSR-40DD Solid State Relay
