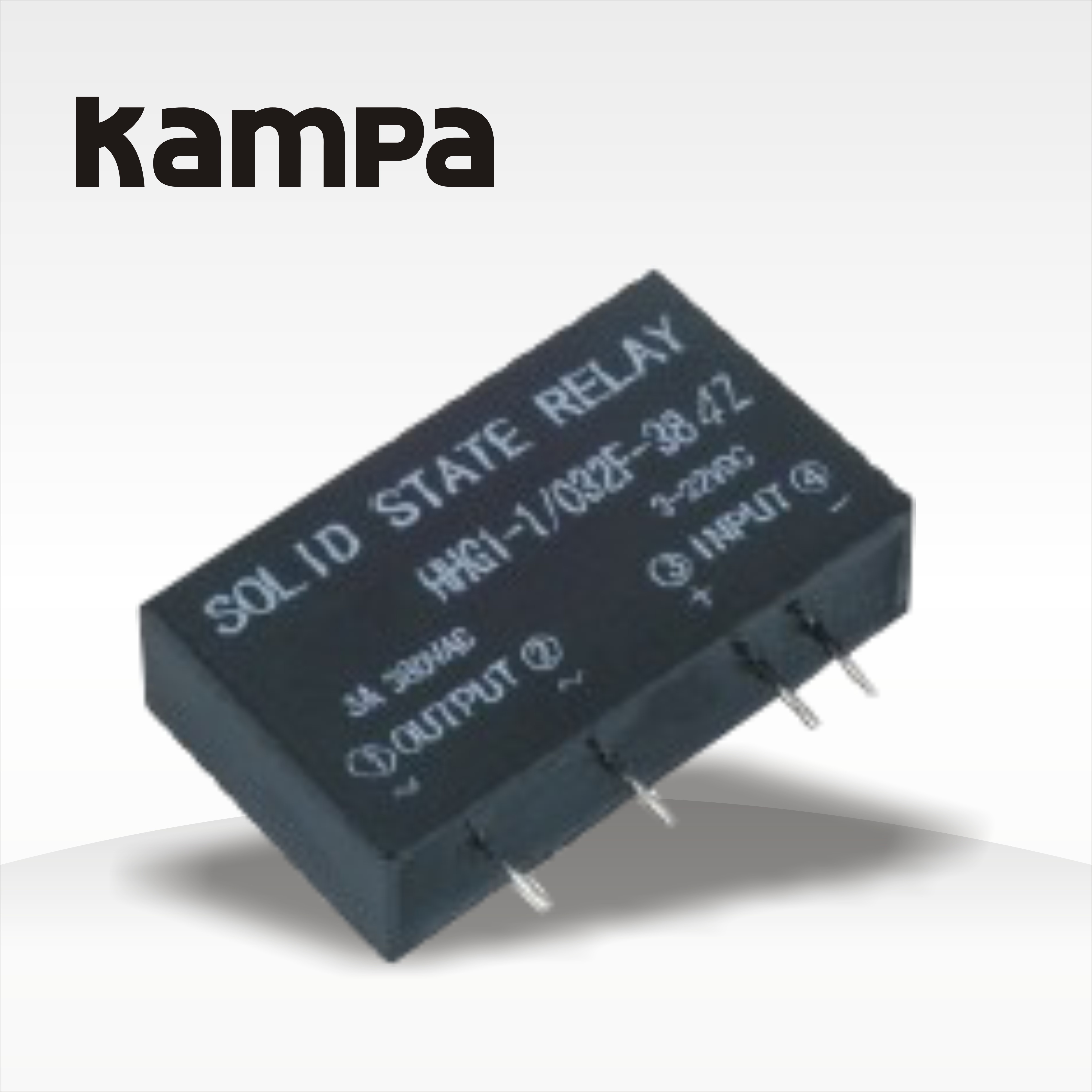

SSR-4DD Solid State Relay

SSR-4DD Solid State Relay

SSR-4DD Solid State Relay

 Technical info

Type SSR-4DD
Controlling Voltage 032:3-32VDC
Controlling Current 6-35mA
Make-on Voltage 3VDC
Break-off Voltage 1VDC
Reverse Voltage 32VDC
Load Voltage 22:30-240VAC 38:40-440VAC 20:12 200VDC
Load Current 1,2,3,4A
Instant Voltage 22:600VAC, 38:900VAC 20:220VDC
Voltage Dropin On <1.6VAC,<1.2VDC
On-off Time ≤10ms, ≤5mS
Leakage Current in off ≤10mA , ≤5mA
Dielectric Strength ≥1500VAC
Insulation Resistance 500MΩ,500VDC
Ambient Temp -30~80°c
Weight ≈22g
Dimensions 42×25.5×12
Wiring Diagram GW03,GW04
Remarks Used to Air condition,Mahjong machine,Bundle of money machine and other appliance

Dimension&Performance Curve
