Technical info.T91 PCB Relay

PCB RELAY HHC67F(T91)
Dimension 32.5*27.5*27.5mm
Contact
Feature
Form 1A,1B,1C
Rated load 30A,40A
Max switching voltage 240VAC/28VDC
Contact resistance ≤100mΩ
Material Silver Alloy
Electrical life ≥1*105
Mechanical life ≥1*107
Operate voltage DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage 110%*Rated voltage
Normal coil voltage DC 3-11OV
AC 6-240V
Normal coil power DC 0.93W
AC 1.2VA
Pick-up time(Rated voltage) ≤15ms
Release time(Rated voltage) ≤10ms
Dielectric
strength
Between Same-pole contacts 1500VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
Between contacts and coil 1500VAC/1min(leakage current 1mA)
Insulation resistance ≥100mΩ(500VDC)
Ambient humidity 35%-80%RH
Atmospheric pressure 86-106KPa
Shock resistance 10G (sinusoidal half-wave pulse:11ms)
Vibration resistance 10-55Hz (double amplitude: 1.0mm)
Installation PCB

3.Dimension of T91 PCB Relay

12v 30a power relay

12v 30a power relay

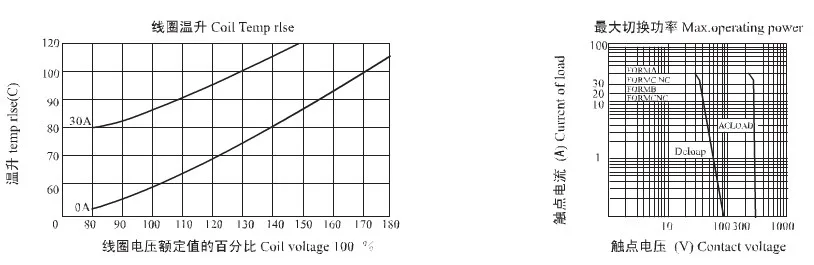

4. Performance Graph
