JQX14F general purpose power relay

JQX14F sealed general purpose power relay 12v 28v

Description

JQX-14F general relay is widely suitable for DC or AC circuit switching in various automation devices,process control and communication equipments etc.It has characteristic of stable performance, high reliability,capable of making and breaking relatively large load current, easy in maintenance and inspection as well as long service life. The plug-in base of the relay is suitable for use with standard 8, 11 & 14 pins socket. They cover the rated current from 3A to 15A.

Key Features:

Versatile Load Ratings: Rated 10A @ 240VAC / 28VDC, suitable for both AC and DC low-to-medium power loads.
Multiple Coil Options: Available in common DC coil voltages (12VDC / 24VDC) to match standard control circuits.

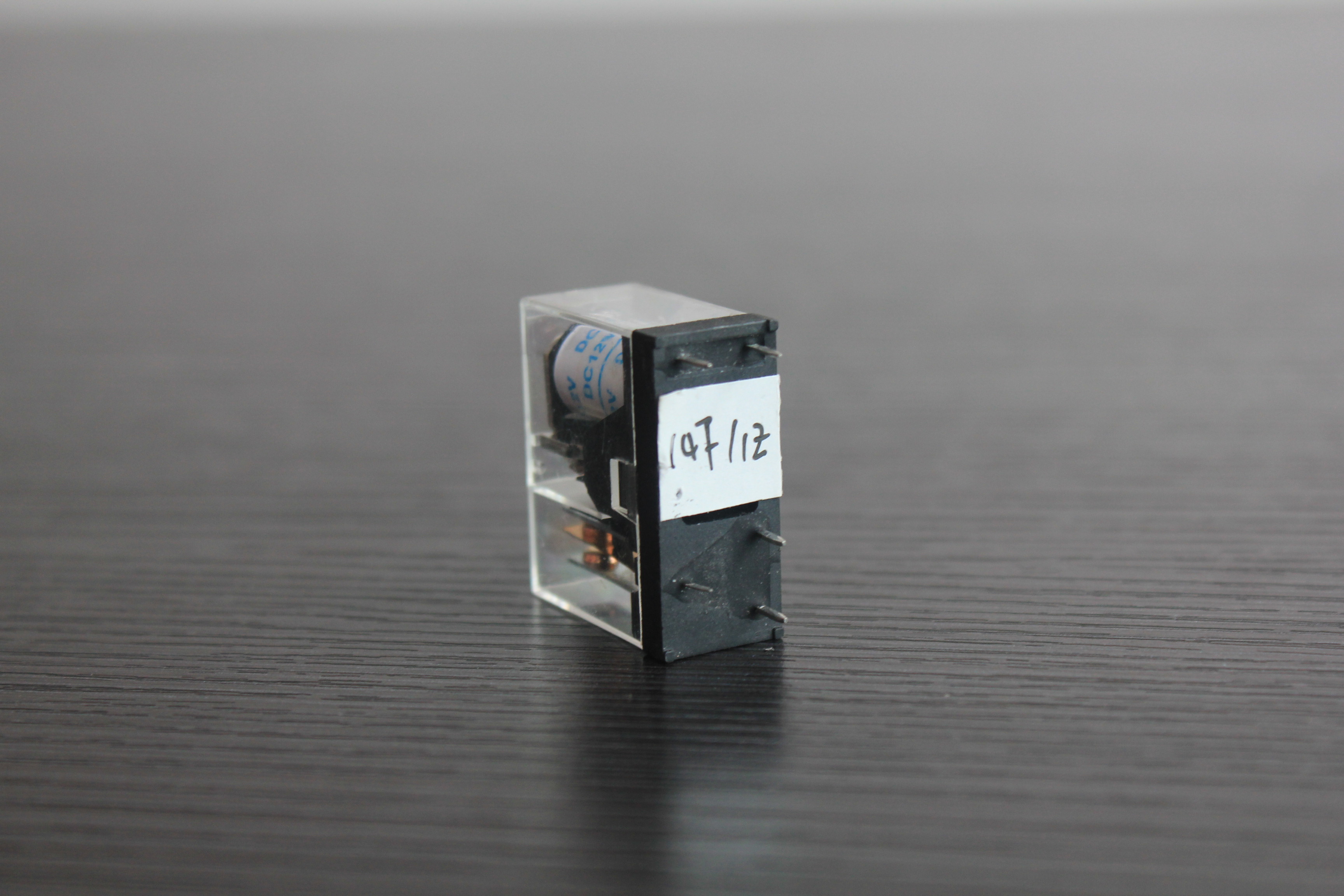

Transparent Housing: Enables visual inspection of internal contacts and mechanism for easy maintenance and troubleshooting.
Certified Quality: CE, CQC, ISO, and RoHS compliant, meeting international safety and environmental standards.
PCB Through-Hole Mount: Standard pin layout for easy soldering onto circuit boards, suitable for compact designs.
Reliable Performance: High-quality contacts and coil materials ensure stable switching and long service life.

Applications:

Industrial control panels and automation equipment
Household appliances and HVAC systems
Instrumentation and communication devices
PCB-based electronic projects and control circuits

Technical info. JQX14F General Purpose Relay

Type	JQX-14FC
Contact type	1H,1D,1Z
Contact overload	10A 16A 240VAC 28VDC
Rated coil power	DC0.05W AC0.8VA
Coil specification	5~110VDC 6~220VAC

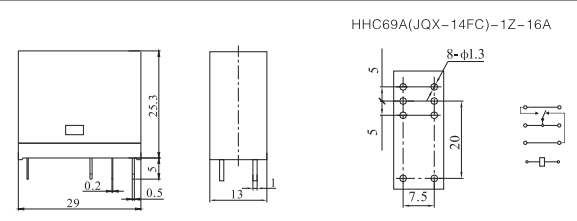

Outline dimensions	30×13×25.4mm
Carton size	342×263×325
Carton number	500
Net weight	9kg
Gross weight	10kg
