SSR-120A Solid State Relay (DA)

Description

The Kampa HHG1 series DC-to-DC solid state relay (SSR) is a high-performance, contactless switching device designed for reliable control of DC loads. With a 40A current rating and wide operating range, it is ideal for industrial automation, power distribution, and DC system control applications.

Key Features:

DC-to-DC Switching: Specifically designed for DC load control, with 12–250VDC output range and 40A continuous current rating.
Wide Control Voltage: 5–32VDC input, compatible with PLCs, microcontrollers, and standard DC control circuits.
Contactless Operation: No moving parts or mechanical contacts, eliminating arcing, noise, and wear for long service life.
Transparent Cover Design: Clear protective cover shields terminals while allowing visual inspection of wiring status.
DIN Rail Mount: Standard package with screw terminals for easy installation in control panels.
High Reliability: Built for fast switching speeds and resistance to vibration, shock, and electromagnetic interference.

Applications:

DC motor control and soft-start systems
Industrial heating and temperature control (DC-powered elements)
Power distribution and battery charging systems
Automation equipment and PLC-controlled circuits

Technical info. SSR-120A Solid State Relay (DA)

Type	SSR-120DA
Dimensions(mm)	106×75×31.5
Controlling Voltage(input)	032:3-32VDC
Controlling Current	5-28mA
Turn-on Voltage	3VDC
Turn-off Voltage	1VDC
Load Voltage(Output)	38:40-440VAC
Load Current	10,15,20,25,30,40,60,80,100,120A
Instant Voltage	38:1000VAC
On-state voltage drop	<1.6VAC
On-off time	≤5mS
Off-state leakage current	≤5mA
Dielectric strength	≥2500VAC
Insulation resistance	500mΩ(500VDC testing)
Ambient temperature	-30~80°C

SSR-120A Solid State Relay (DA)

SSR-120A Solid State Relay (DA)

Description

Key Features:

Applications:

Technical info. SSR-120A Solid State Relay (DA)

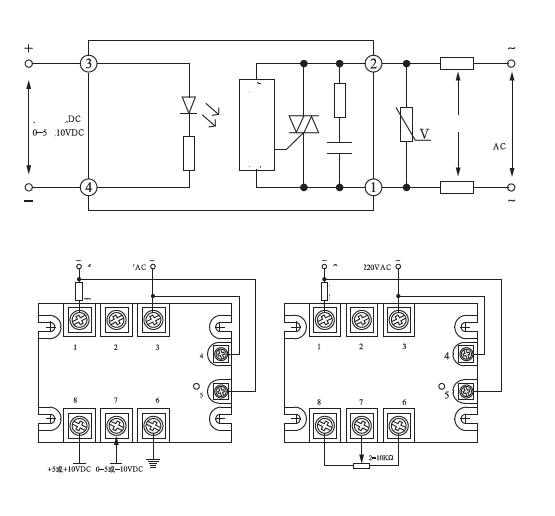

Outside drawing SSR-120A Solid State Relay (DA)
