16a 250v latching type electrical pcb power relays

Description

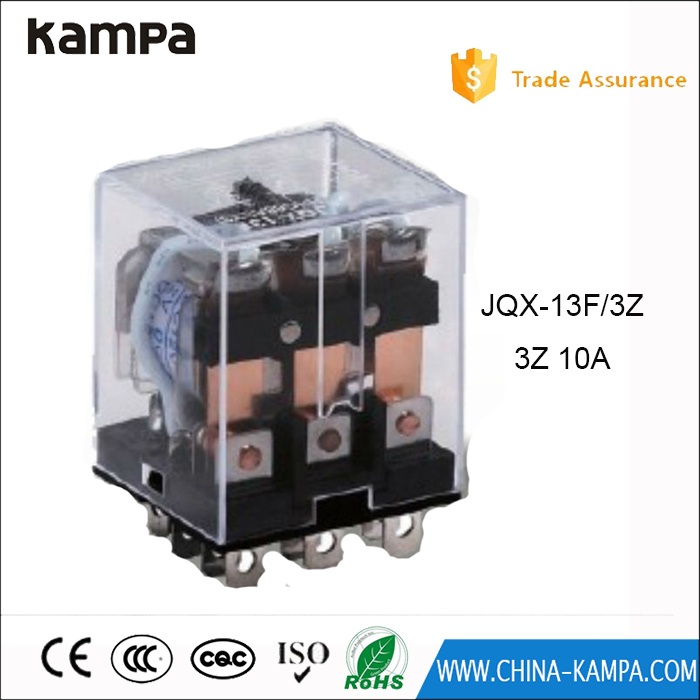

JQX – 13 f (HH62P) series electromagnetic relay (hereinafter referred to as the relay), used in ac 50 hz voltage to AC380V or dc voltage to DC220V automatic control circuit, a control circuit of the control element used to connect or breaking circuit.

suitable for automatic control, communication equipment, household appliances and machine electric appliance etc.

Applications

  • Industrial control panels and automation equipment
  • Household appliances (air conditioners, refrigerators, water heaters)
  • Power distribution and switching control systems
  • Lighting control and building automation
  • Motor control and protection circuits
  • Signal switching and amplification circuits
  • Security and monitoring systems

Function

  • Reliable 3PDT 10A Contact Performance
  • Multiple Coil Voltage Options。
  • Transparent Cover for Easy Inspection
  • High-Quality & Durable Build。
  • Wide Compatibility & Easy Installation
  • Full Safety & Compliance Certification

Specifications

Contact Data

Contact Form1Z2Z ,3Z,4Z
Contact Resistance50mΩ (1A 6VDC)
Contact capacity10A250VAC/28VDC10A 250VAC/28VDC

Characteristics

Insulation Resistance500MΩ, 500VDC
Dielectric StrengthBetween coil and contacts  1500VAC 1minute
Between open contacts  1000VAC 1minute
Electronic contact group  1500VAC 1minute
Operate /Release Time25ms /25ms

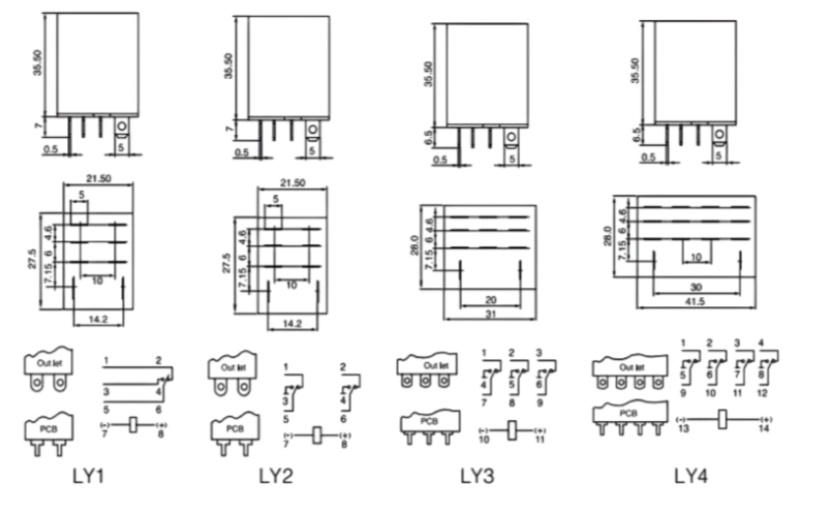

Terminal TypePCB and plug type leading-out terminal
COIL Power
Nominal Coil Power0.9W / 1.2VA

Coil data

Nominal Voltage VDCPull-in VoltageRelease VoltageCoil ResistanceΩ:±10%Nominal Voltage VACPull-in VoltageRelease VoltageCoil ResistanceΩ:±10%
VDCVDCVDCVDC
540.53064.81.812
64.80.640129.63.642
129.61.21602419.27.2168
2419.22.46404838.414.4675
4838.44.82500110/12096363500
110881112100220/2401766614000/16500

Product Display
