Solar Junction Box

Main speciality：

with the capacity of age and UV-resistance;the junction box can be used in the atrocious weather.
found in outdoor use under harsh environmental conditions required
The cable connection mode can be welded or pressed.
Welding connections is used for ribbon band.
The rated current will be changed when the box is fixed with different types of diode.

Technical parameters

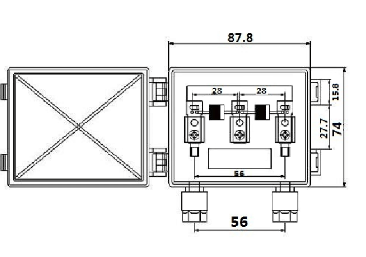

Dimension：87.87419mm
Rated voltage：1000V DC
Type of diode:10A10
Power：80-120W
Safe class：Class Ⅱ
Temperature range：﹣40℃ ～ +85℃
Section area of Cable：1*2.5/4mm2
Degree of protection：IP65
Flame class：UL94-V0
Contact material:Copper Tin Plated
Insulation material:PPO
Type	Rated current

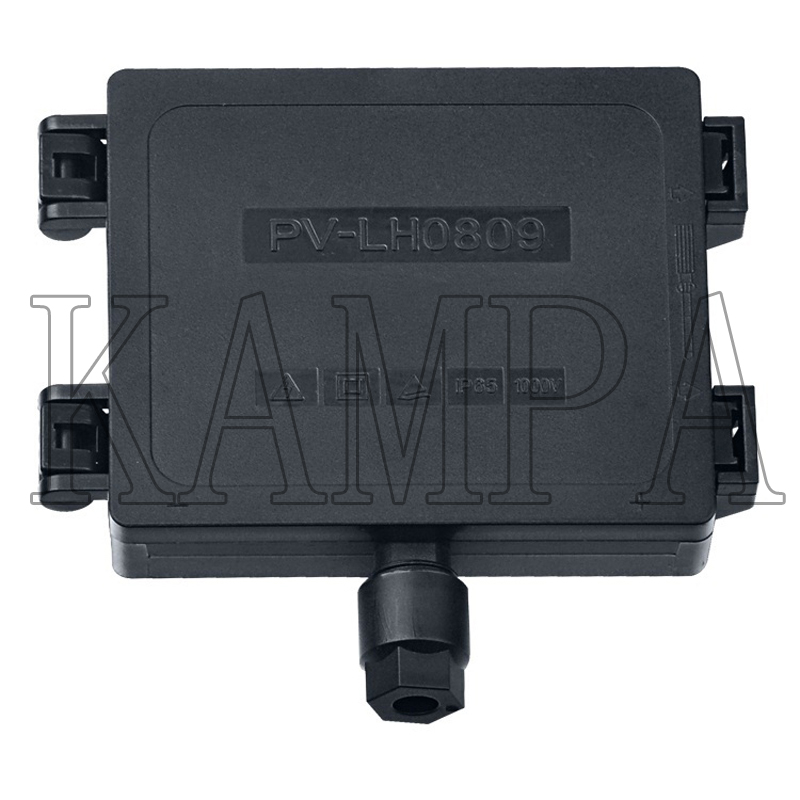

PV-LH0809	6.5A
