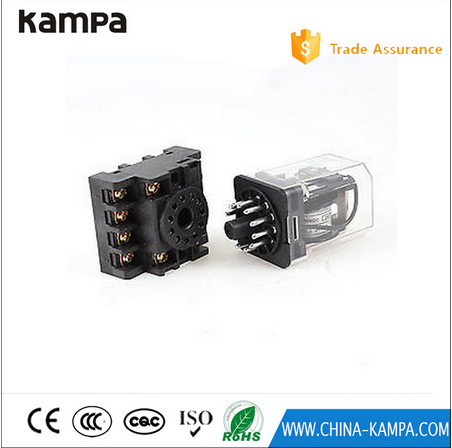

JTX-2/3C 10A 12V Power relays
JTX-2/3C 10A 12V Power relays
Description
The Kampa JTX-2/3C is a heavy-duty general-purpose power relay designed for industrial control, automation, and power distribution applications. With a transparent housing and high-capacity contacts, it provides reliable switching for medium-power loads.
Key Features:
- High Load Capacity: 10A contact rating, suitable for switching motors, lighting, and control circuits.
- Multi-Pole Configuration: Available in 2-pole (2C) or 3-pole (3C) versions for flexible circuit control.
- Transparent Housing: Allows visual inspection of contacts and mechanism for easy maintenance and troubleshooting.
- Standard Socket Mount: Compatible with standard octal sockets, enabling quick installation and replacement.
- Robust Construction: Designed for long service life and stable performance in demanding industrial environments.
- 12V Coil Option: DC12V coil voltage, with other common voltages also available.
Applications:
- Industrial control panels and automation systems
- Power distribution and motor control circuits
- HVAC and building automation equipment
- Process control and instrumentation systems
Dimension&Performance Curve JTX-2/3C General Purpose Relay
Technical info. JTX-2/3C General Purpose Relay
| Type | JTX- 2、3C |
| Contact type | 2Z,2H,2D 3Z,3H,3D |
| Contact overload | 10A |
| Rated coil power | DC2.0W AC3.5VA |
| Coil specifications | DC6V~220V AC6V~380V |
| Outline dimensions | 35×35×55mm |
| Carton size | 440×310×345 |
| Carton number | 380 |
| Net weight | 15kg |
| Gross weight | 16kg |
