PF083A Relay Socket
PF083A Relay Socket
Description
This PF083A 8-pin octal relay socket is designed for MK2P-I, AH3, ST3P, H3BA and other 8-pin round relays. It supports DIN rail or panel mounting, with screw terminals for easy wiring and reliable electrical connection in industrial control systems.
Full Description
Upgrade the reliability and convenience of your control system with the PF083A 8-Pin Octal Relay Socket, the ideal base for most common 8-pin round relays. Whether you’re building automation panels, power distribution boxes, or industrial machinery, this socket ensures stable connections and easy maintenance.
Key Features
- Universal Compatibility: Fits all standard 8-pin octal relays, including MK2P-I, MK3P-I, AH3-3, ST3P, H3BA, and other time/control relays.
- Dual Installation Options: Supports both DIN rail mounting (standard 35mm rail) and direct panel screw mounting, adapting to different cabinet layouts.
- Secure Screw Terminals: Nickel-plated screw terminals provide reliable electrical contact and prevent loose connections, suitable for currents up to 10A.
- Durable Flame-Retardant Housing: Made of high-quality engineering plastic, it offers excellent insulation and heat resistance, meeting industrial safety standards.
- Clear Terminal Markings: Numbered terminals help avoid wiring errors, speeding up installation and troubleshooting.
- Easy Maintenance: The plug-and-play design allows you to replace relays without rewiring, saving time and effort during equipment repairs.

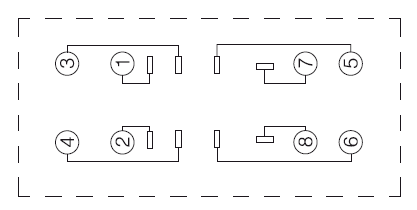

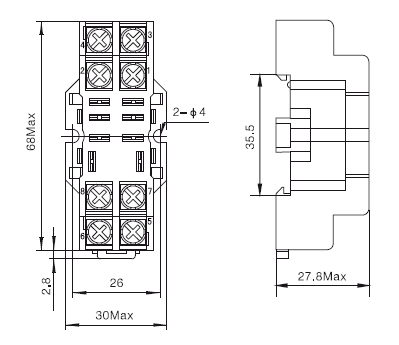

Outside drawing &Mounting dimensions PF083A Relay Socket
Specification
| Voltage rating | Current:12A |
| Voltage:300V | |
| Dielectrics voltage-resistance | 2500V/S |
| Material | Flame retardant PA66+GF(V1/VO) |
| Collet material | QSN6.5-0.1 |
| Installation way | DIN |
| Ancillary attachment | |
| Module | NO |
| Package information | Inner carton quantity :10pcs |
| Carton size: 325mm*230mm*380mm | |
| Weights:43g |
