PYF08A Relay Socket

PYF08A Relay Socket

PYF08A Relay Socket

 Technical info.PYF08A Relay Socket

Voltage rating Current 7A
Voltage 300V
Dielectrics voltage-resistance 2500V/S
Material Flame retardant PA66+GF(V1/VO)
Collet  material QSN6.5-0.1
Installation way DIN
Ancillary attachment
Module NO
Package information Inner carton quantity 10pcs
Carton size 420mm*250mm*370mm
Weights 34g

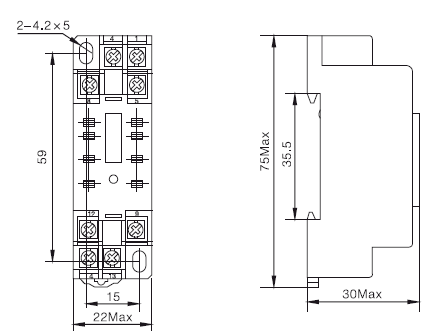

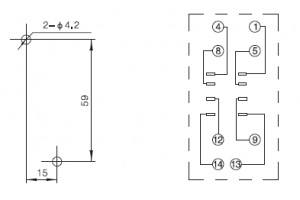

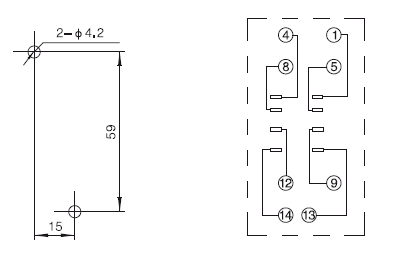

Outside drawing &Mounting dimensions  PYF08A Relay Socket

PYF08A Relay SocketPYF08A Relay Socket
