TP58X Relay Socket

TP58X Relay Socket

TP58X

 Technical info.TP58X Relay Socket

Voltage rating Current 7A
Voltage 300V
Dielectrics voltage-resistance 2500V/S
Material Flame retardant PA66+GF(V1/VO)
Collet  material QSN6.5-0.1
Installation way DIN
Ancillary attachment
Module NO
Package information Inner carton quantity 20pcs
Carton size 475mm*380mm*370mm
Weights 40g

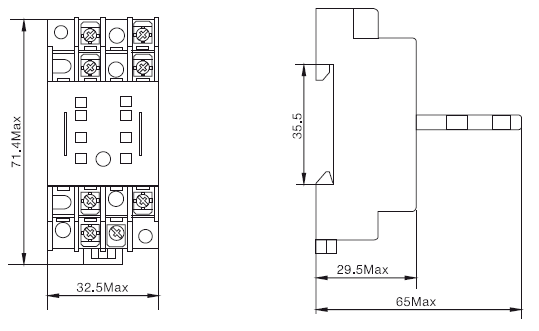

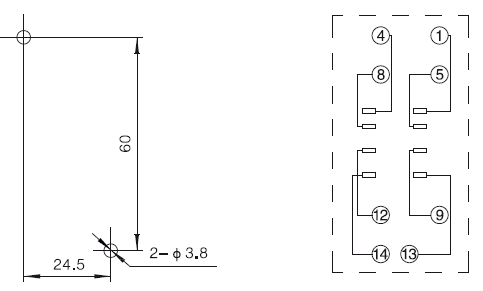

Outside drawing &Mounting dimensions  TP58X Relay Socket

TP58X Relay SocketTP58X Relay Socket
