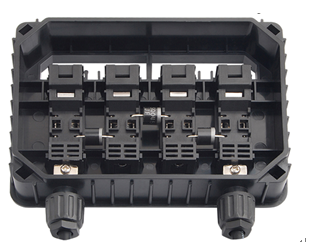

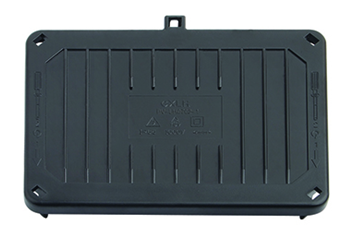

PV-LH0702 Solar junction box
1.Type:PV-LH0702
2.Main speciality：
- with the capacity of age and UV-resistance;the junction box can be used in the atrocious weather.
- found in outdoor use under harsh environmental conditions required
- The cable is welded by welding method.
- Welding connections is used for ribbon band.
- The rated current will be changed when the box is fixed with different types of diode.
- EN50548/A1:2013 ●Certification:T
3.Technical parameters
| Dimension：138.5*101.5*26.5mm | |
| Rated voltage：1000V DC | |
| Power：230-320W | |
| Safe class：Class Ⅱ | |
| Diode model：15SQ045 | |
| Diode number：3 | |
| Temperature range：﹣40℃ ～ +85℃ | |
| Section area of Cable：1*4mm2 | |
| Degree of protection：IP65 | |
| Flame class：UL94-V0 | |
| Contact material:Copper Tin Plated | |
| Insulation material:PPO | |
| Type | Rated current |
| PV-LH0702 | 12A |

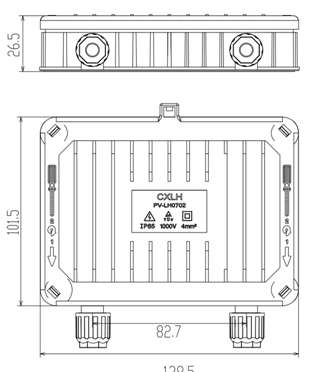

3.Product size
