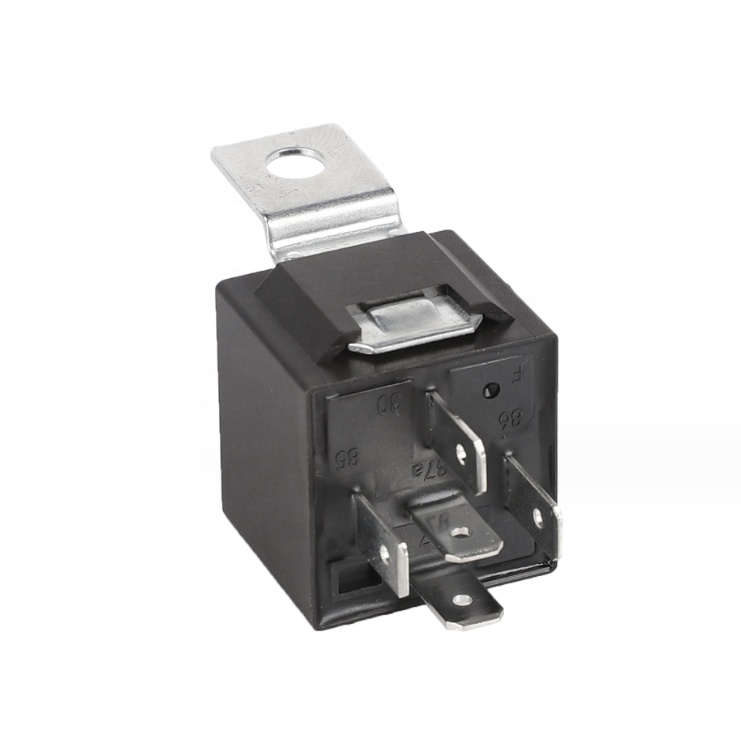

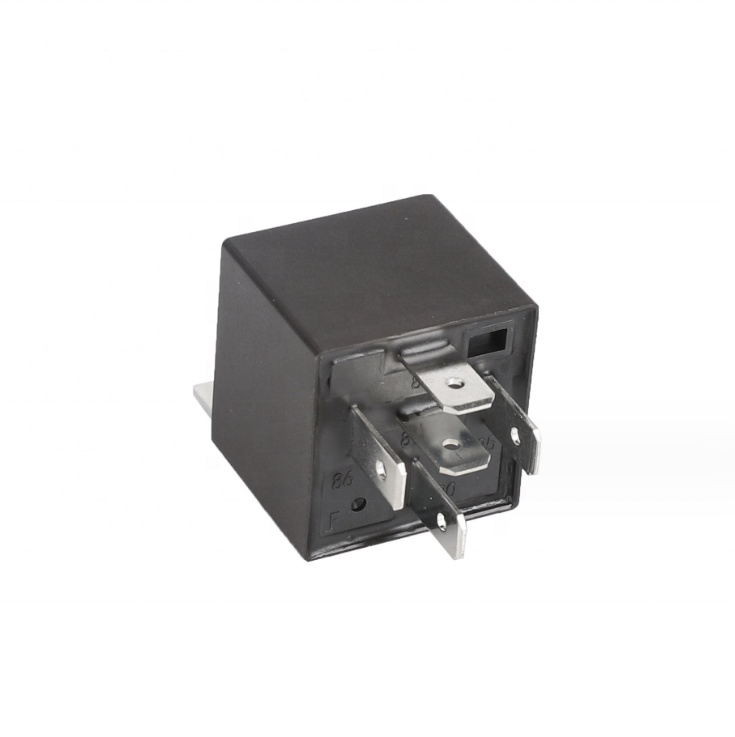

JD1914 Auto Relay

(HIGH QUALITY AUTO RELAY UNIVERSAL TYPE)

Relay (Relay), also known as auto relay, is an electronic control device, it has a control system (also known as the input circuits) and the control system (also known as the output circuit), usually applied to the automatic control circuit, it is actually less current to control a larger current “auto switch”. In the circuit with auto-tuning, security protection, conversion circuits and so on.

Main relay type: PCB relay, General purpose relay, Power relay, Solid state relay and Auto Relay

Key Features:

High Current Capacity: Rated 20A/30A at 24VDC, suitable for switching power accessories, lighting, and motor loads.
Standard 12V Coil: DC12V coil voltage, compatible with most automotive, truck, and marine 12V electrical systems.
Robust Construction: Durable black plastic housing with metal terminals for excellent conductivity and heat dissipation.
5-Pin SPDT Configuration: Common, normally open, and normally closed contacts for flexible circuit control.
Vibration & Heat Resistant: Designed to withstand the harsh conditions of automotive environments, including vibration and temperature fluctuations.

Applications:

Automotive lighting, fans, pumps, and starter circuits
Marine and RV 12V power systems
Industrial low-voltage DC control circuits

Technical info.of JD1914 Auto Relay

Model	JD1914 Auto Relay
Contact type	1Z,1H,1D
Contact overload	30A
Rated coil power	1.8W
Coil specification	DC12V-24V

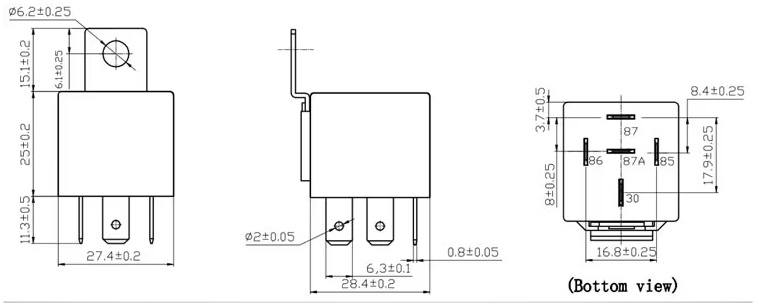

Outline dimensions	29×29×26.5mm
Carton size	340×310×345
Carton number	180
Net weight	15kg
Gross weight	16kg
