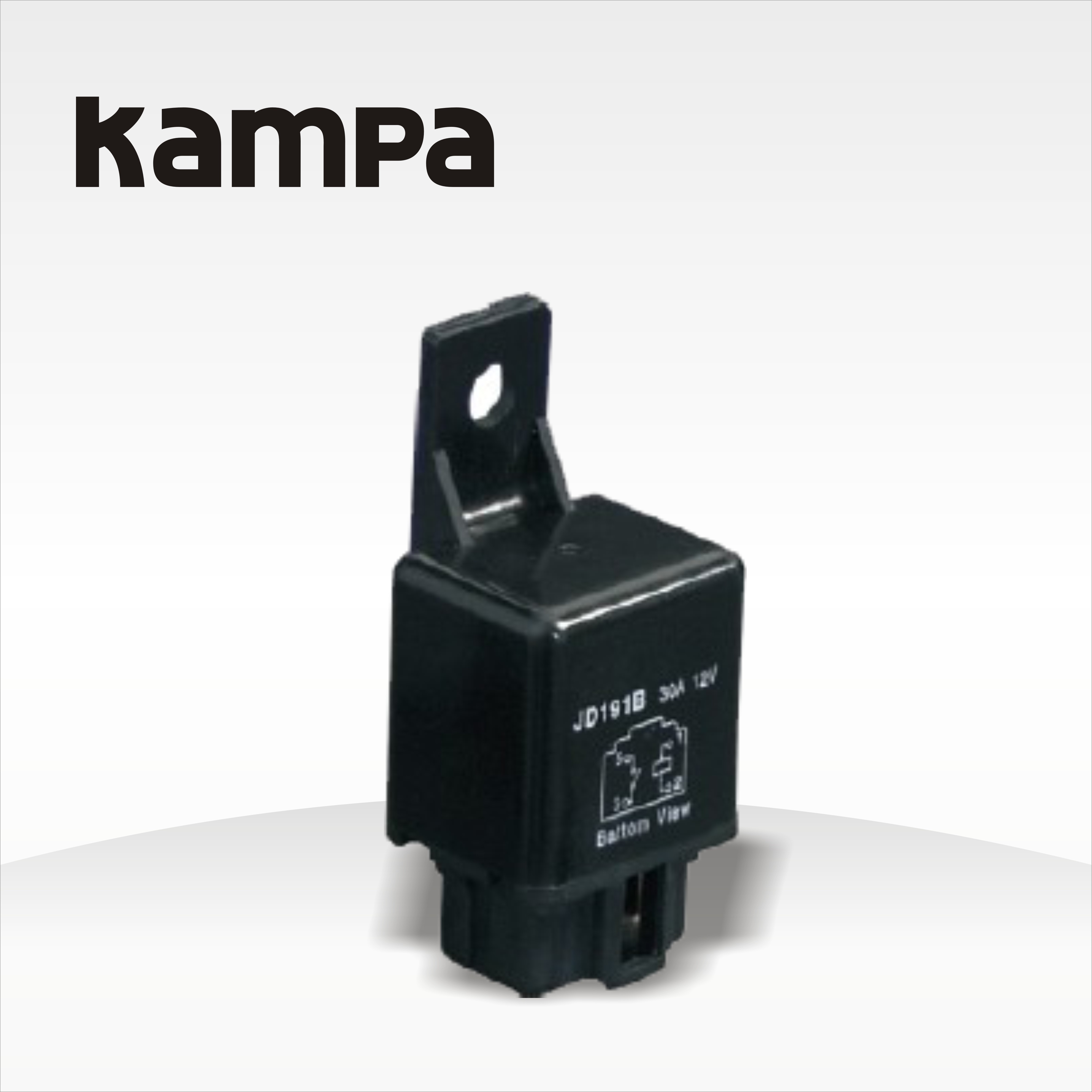

JD191B Auto Start Relays

JD191B Auto Start Relays

JD191B Auto Start Relays



Relay (Relay), also known as auto start relays, is an electronic control device, it has a control system (also known as the input circuits) and the control system (also known as the output circuit), usually applied to the automatic control circuit, it is actually less current to control a larger current “auto switch”. In the circuit with auto-tuning, security protection, conversion circuits and so on.

Main relay range: PCB relay, General purpose relay, Power relay, Solid state relay and Auto Relay

Technical info. of JD191B Auto start Relays:

(A=NO B=NC C=NO&NC)

Contact

Form

1A

Load (Resistive Leakage)

30A/24VDC

Contact resistance (initial)

100mΩ

Material

Silver alloy

Electric life

105

Machine life (300 times/min)

107

Pick-up voltage (25/SPAN>)

DC:5%×rated voltage

Release voltage  (25/SPAN>)

DC:0%×rated voltage

Maximum voltage  (25/SPAN>)

110%×rated voltage

Specifications of coils

12V,24V

Coil power

 DC

1.8W

Pick-up time (rated voltage)

15ms

Release time (rated voltage)

10ms

Initial withstand

Between contacts

1000VAC/1min(leakage current:1mA)

Between contact and coil

1500VAC/1min(leakage current:1mA)

Insulation resistance

100mΩ(500VDC)

Ambient temperature

-55/SPAN>70/SPAN>

Ambient humidity

35%-80%RH

Atmospheric pressure

86-106KPa

Installation

PCB; By screw

Packing

Quantity

500

Dimension of outer case

385×190×300MM

Weight (each relay)

Approx.38g
