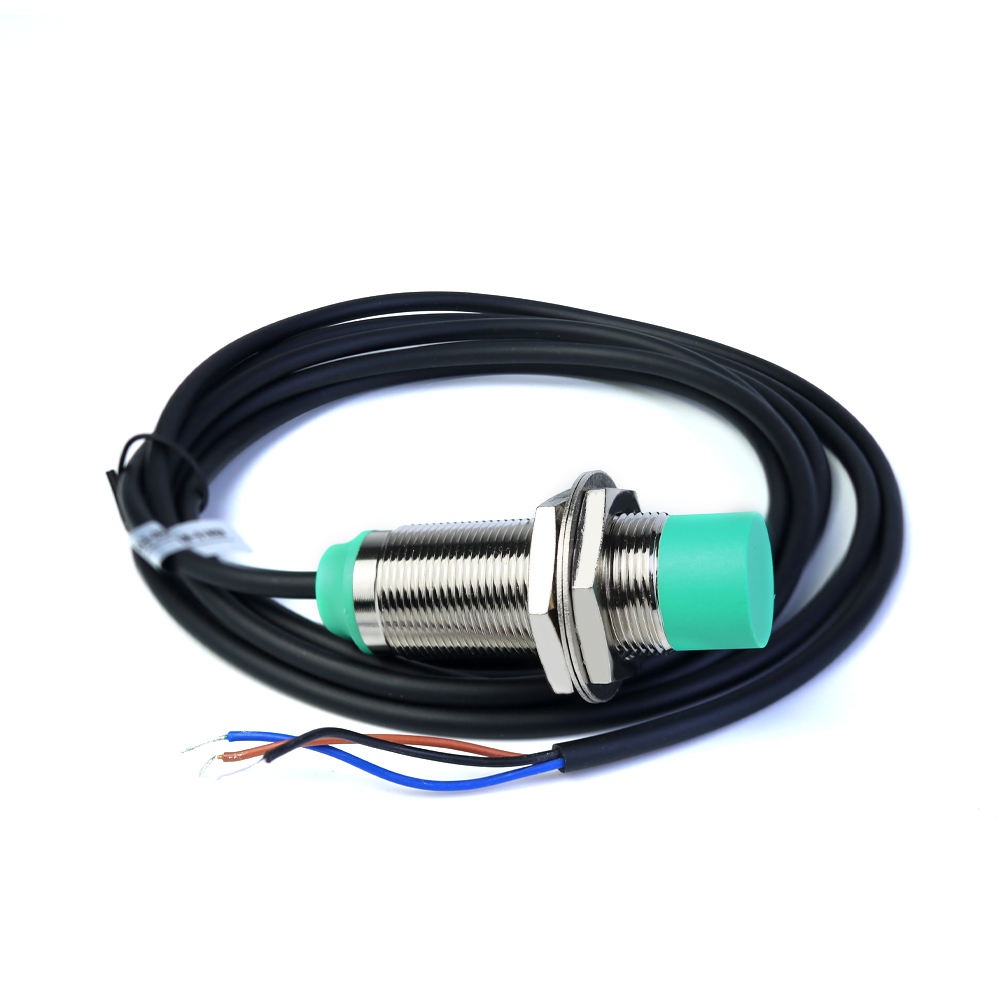

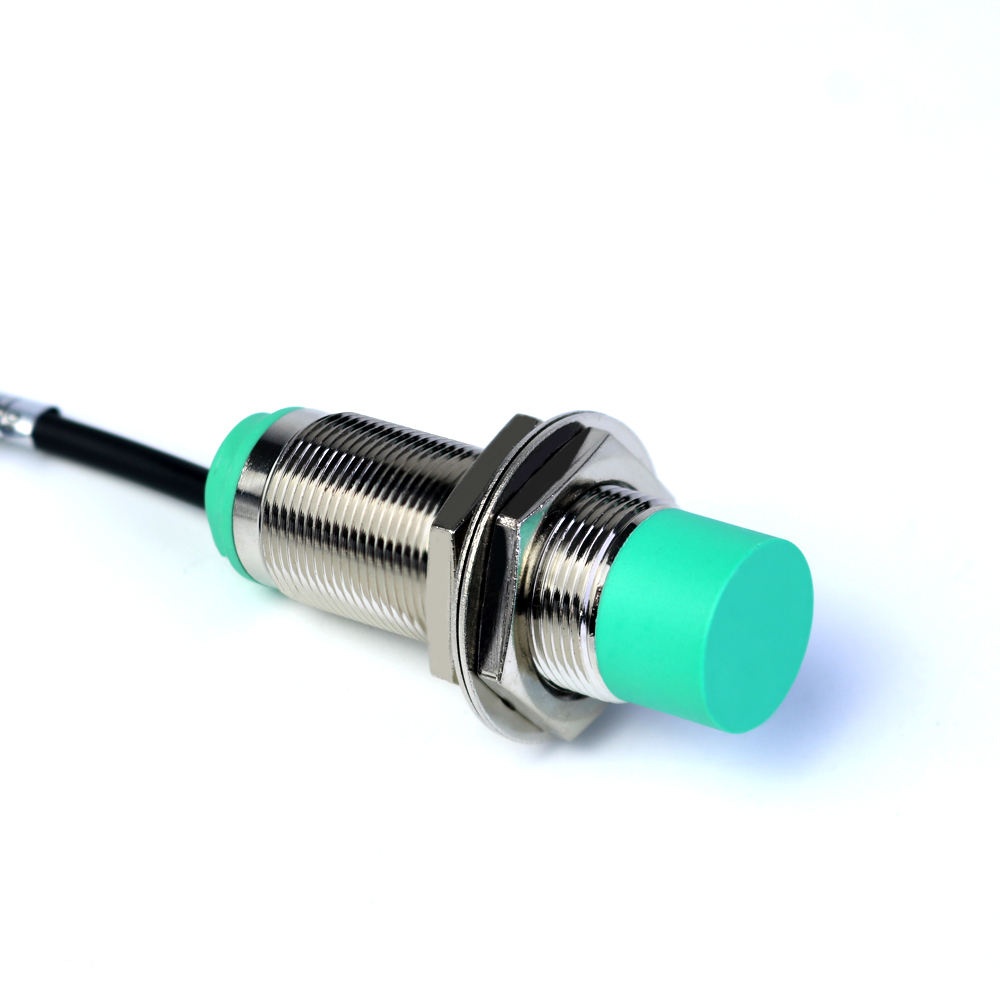

Inductive proximity switch LM18 series
LM18 Series inductive proximity switch
Specification of LM18 series inductive proximity sensor
Flush | Detection distance | 5MM | ||
DC6-36V | NPN | NO | 3005NA | |
NC | 3005NB | |||
NO+NC | 3005NC | |||
PNP | NO | 3005PA | ||
NC | 3005PB | |||
NO+NC | 3005PC | |||
Two wire system | NO | 3005LA | ||
NC | 3005LB | |||
AC90-250V | SRC Control label silicon | NO+NC | 2005A | |
NC | 2005B | |||
NO+NC | 2005C | |||
Relay output | ||||
Non-flush | Detection distance | 8mm | ||
DC6-36V | NPN | NO | 3008NA | |
NC | 3008NB | |||
NO+NC | 3008NC | |||
PNP | NO | 3008PA | ||
NC | 3008PB | |||
NO+NC | 3008PC | |||
Two wire system | NO | 3008LA | ||
NC | 3008LB | |||
AC90-250V | SRC Control label silicon | NO | 2008A | |
NC | 2008B | |||
NO+NC | 2008C | |||
Relay output | ||||
Control output | DC | 200mA | ||
SCR/Relay | 300mA | |||
Output voltage drop DC/AC | DC<3V AC<10mA | |||
Consumption current | DC<15mA AC<10mA | |||
Standard detected object | 15*15*1(A3 Iron) | |||
Repeat precision | 0.02 | |||
DC/AC Response frequency | 300HZ/25HZ | |||
Working environment temperature | below 25°C to 75°C | |||
Insulation resistance | ≥50MΩ | |||
Shell meterial | Metal | |||
Protection grade | IEC standard IP67 | |||
Altemative model at home and abroad | LJ18A3 |
- Order remarks:
- Working Voltage
- NPN or PNP NO, NC or NO+NC. If AC, 2wire or 3wire?
- Detection space
- Diameter
- tell me exact model no. better
